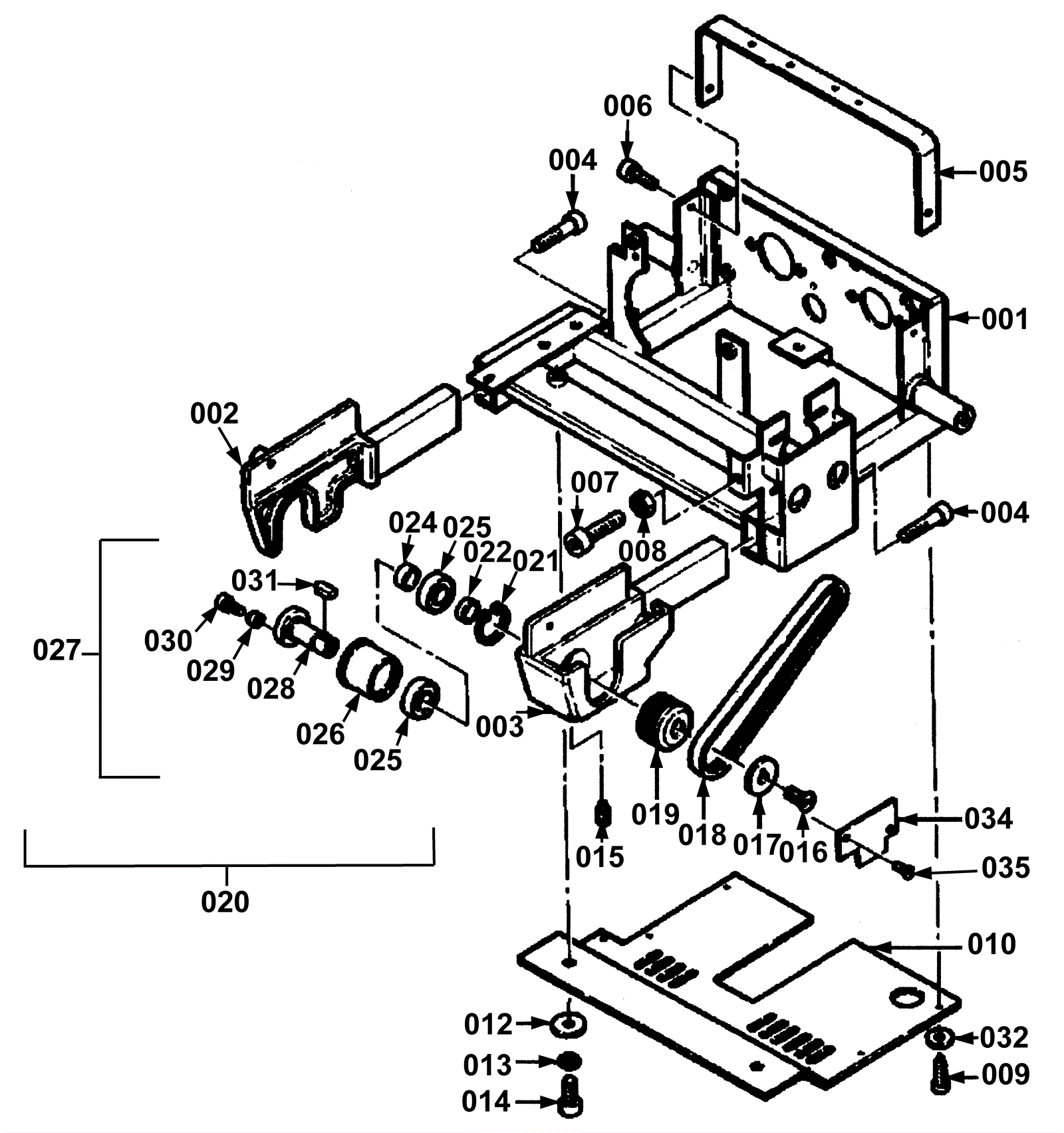

BRIGHTSTAR BS100SC Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 195-6169 Chassis assembly Call for price usually ships 1-5 days
002 195-6170 Support right side $266.11 usually ships 1-5 days
003 195-6171 Support left side $341.88 usually ships 1-5 days
004 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 ships same day
005 195-6172 Frame bracket Call for price usually ships 1-5 days
006 195-6173 Screw M4 x 8mm hex head Call for price usually ships 1-5 days
007 195-6174 Screw M8 x 20mm hex head $6.25 usually ships 1-5 days
008 999-1292 Nut M8 hex nickel plated brass $1.85 ships same day
009 195-6175 Screw M2 9/10 x 9 1/2 inch $8.32 usually ships 1-5 days
010 195-6176 Bottom plate $282.74 usually ships 1-5 days
012 999-1267 Washer M8 flat zinc $0.99 ships same day
013 999-0674 Washer M8 split lock plain finish $0.99 ships same day
014 195-6174 Screw M8 x 20mm hex head $6.25 usually ships 1-5 days
015 195-6177 Screw M5 x 5mm set Call for price usually ships 1-5 days
016 295-4094 Screw M6 x 12mm $6.60 usually ships 15-20 days
017 195-6179 Washer 30 x 3mm $25.98 usually ships 1-5 days
018 195-6180 Drive belt $75.90 usually ships 15-20 days
019 195-6181 Belt pulley $151.07 usually ships 1-5 days
020 195-6182 Axle assembly $600.84 includes 021 thru 031 usually ships 1-5 days
021 195-6183 Retaining ring $9.24 usually ships 1-5 days
022 195-6184 Spacer ring $40.92 usually ships 1-5 days
024 195-6185 Spacer ring $43.56 usually ships 1-5 days
025 195-6186 Ball bearing $75.24 usually ships 1-5 days
026 195-6187 Bearing box $118.80 usually ships 1-5 days
027 195-6188 Complete axle $270.27 includes 028 thru 031 usually ships 1-5 days
028 195-6189 Axle $155.76 usually ships 1-5 days
029 195-6190 Spacer ring $43.67 usually ships 1-5 days
030 195-6191 Screw M4 x 8mm hex head $8.32 usually ships 1-5 days
031 195-6192 Wedge key $18.48 usually ships 1-5 days
032 195-6193 Washer M3 $6.25 usually ships 1-5 days
034 195-6194 Cover $51.99 usually ships 1-5 days
035 195-6173 Screw M4 x 8mm hex head Call for price usually ships 1-5 days
