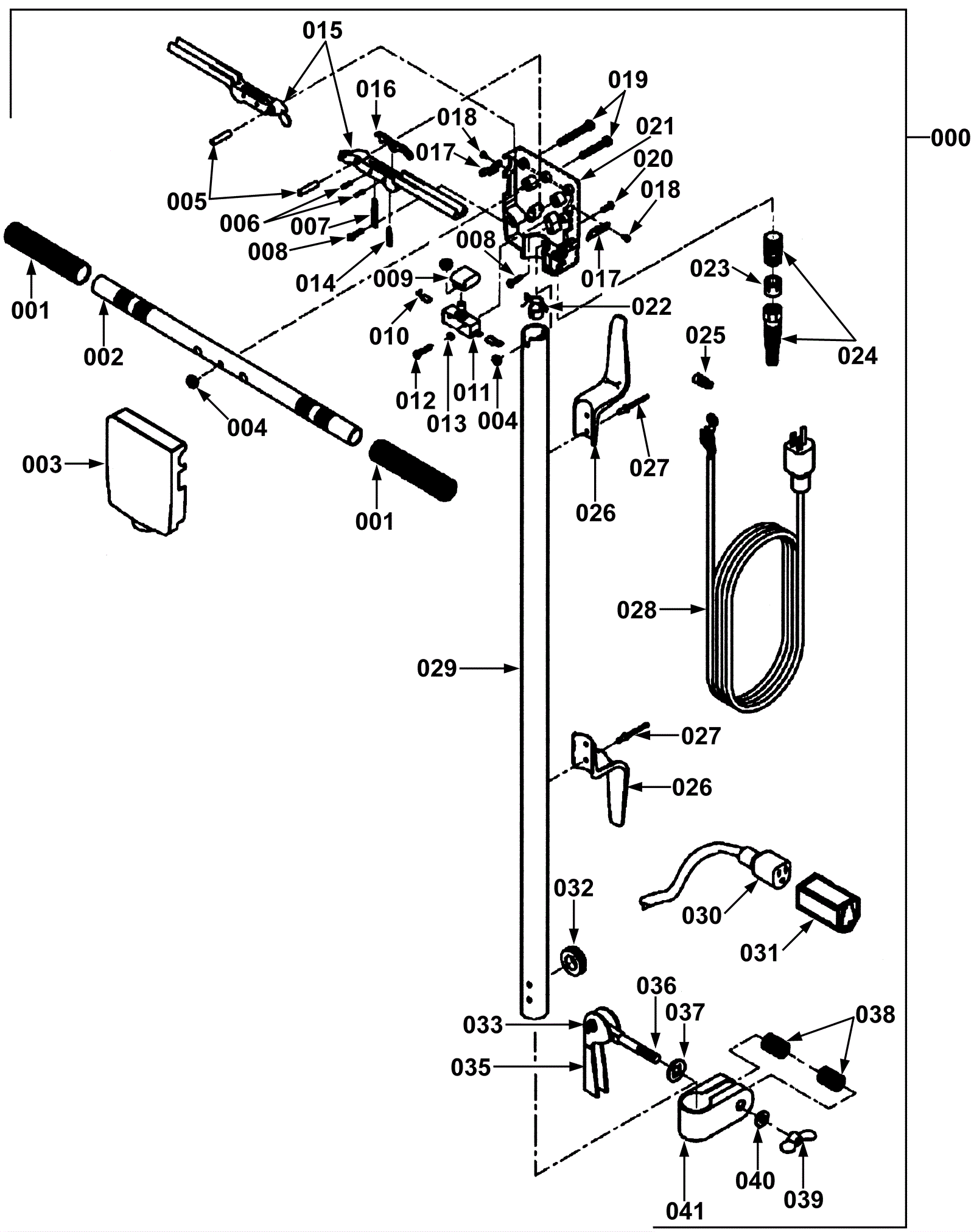

MBS-1500 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
000 195-6011 Handle assembly $462.00 1 usually ships 1-5 days
001 195-6076 Ribbed handle grip $9.55 2 usually ships 9-26 days
002 195-6079 Handle bar $20.90 1 usually ships 9-26 days
003 195-6078 Switch box cover $42.98 1 usually ships 9-26 days
004 195-6077 Nut hex #12-24 with washer $0.99 3 usually ships 9-26 days
005 195-6087 Trigger pin $5.50 2 ships same day
006 195-6086 Roll pin $1.20 4 usually ships 9-26 days
007 195-6085 Extension spring $5.97 2 ships same day
008 195-6095 Screw 8-32 x 1/4 $0.99 3 usually ships 1-5 days
009 195-6084 Leaf spring $7.70 1 usually ships 9-26 days
010 195-6083 Flag terminal $2.20 2 usually ships 9-26 days
011a 195-6151 Switch $38.21 1 Old style switch McGill - 4 holes. For new style Cherryl switch with 2 holes please order 195-6151. usually ships 9-26 days
011b 195-6151 Switch $38.21 1 New style Cherryl switch with 2 holes. For the old style switch McGill - 4 holes please order 195-9318 usually ships 9-26 days
012 195-6082 Screw 6-32 x 1 inch $0.99 2 usually ships 9-26 days
013 195-6081 Washer internal tooth $0.99 2 usually ships 1-5 days
014 195-6072 Trigger lock spring $2.48 2 ships same day
015a 195-6088 Plastic handle $20.26 2 usually ships 9-26 days
015b 195-6089 Trigger and spring assembly $46.04 2 usually ships 9-26 days
016 195-6090 Trigger lock $13.20 2 usually ships 9-26 days
017 195-6091 Reinforcing plate $11.00 2 usually ships 9-26 days
018 195-6092 Screw 6-32 x 1/4 $0.99 4 usually ships 1-5 days
019 195-6093 Screw 12-24 x 1 7/16 $1.20 5 usually ships 9-26 days
020 195-6094 Screw 12-24 x 1/2 $2.20 2 usually ships 9-26 days
021 195-6152 Switch box $42.98 1 usually ships 9-26 days
022 195-6080 Cord clamp $9.24 1 usually ships 9-26 days
023 195-6148 Strain relief $25.40 1 usually ships 9-26 days
024 195-6148 Strain relief $25.40 1 usually ships 9-26 days
025 195-6150 Wire connector $1.78 1 usually ships 9-26 days
026 195-6139 Cord hook $28.60 2 usually ships 9-26 days
027 195-6153 Pop rivet $1.78 4 usually ships 1-5 days
028a 195-6071 14/3 power cord 50ft $156.42 1 OEM ships same day
028b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) (does not include strain relief) usually ships 8-20 days
029 195-6075 Handle tube $42.35 1 usually ships 9-26 days
030 195-6154 Handle cable $19.80 1 usually ships 9-26 days
031 195-6155 Sleeve connector grey $10.91 1 usually ships 1-5 days
032 195-6156 Grommet $1.38 1 usually ships 9-26 days
033a 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
033b 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
035a 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
035b 195-6157 Clamp lever kit with U-clamp $63.49 1 includes items 037 and 038 usually ships 9-26 days
035c 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
036 195-6158 Bolt .37-16 x 3.37 $7.74 1 usually ships 1-5 days
037 195-6117 Washer flat square hole $6.60 1 usually ships 1-5 days
038 195-6157 Clamp lever kit with U-clamp $63.49 2 usually ships 9-26 days
039 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
040 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
041 195-6157 Clamp lever kit with U-clamp $63.49 1 usually ships 9-26 days
