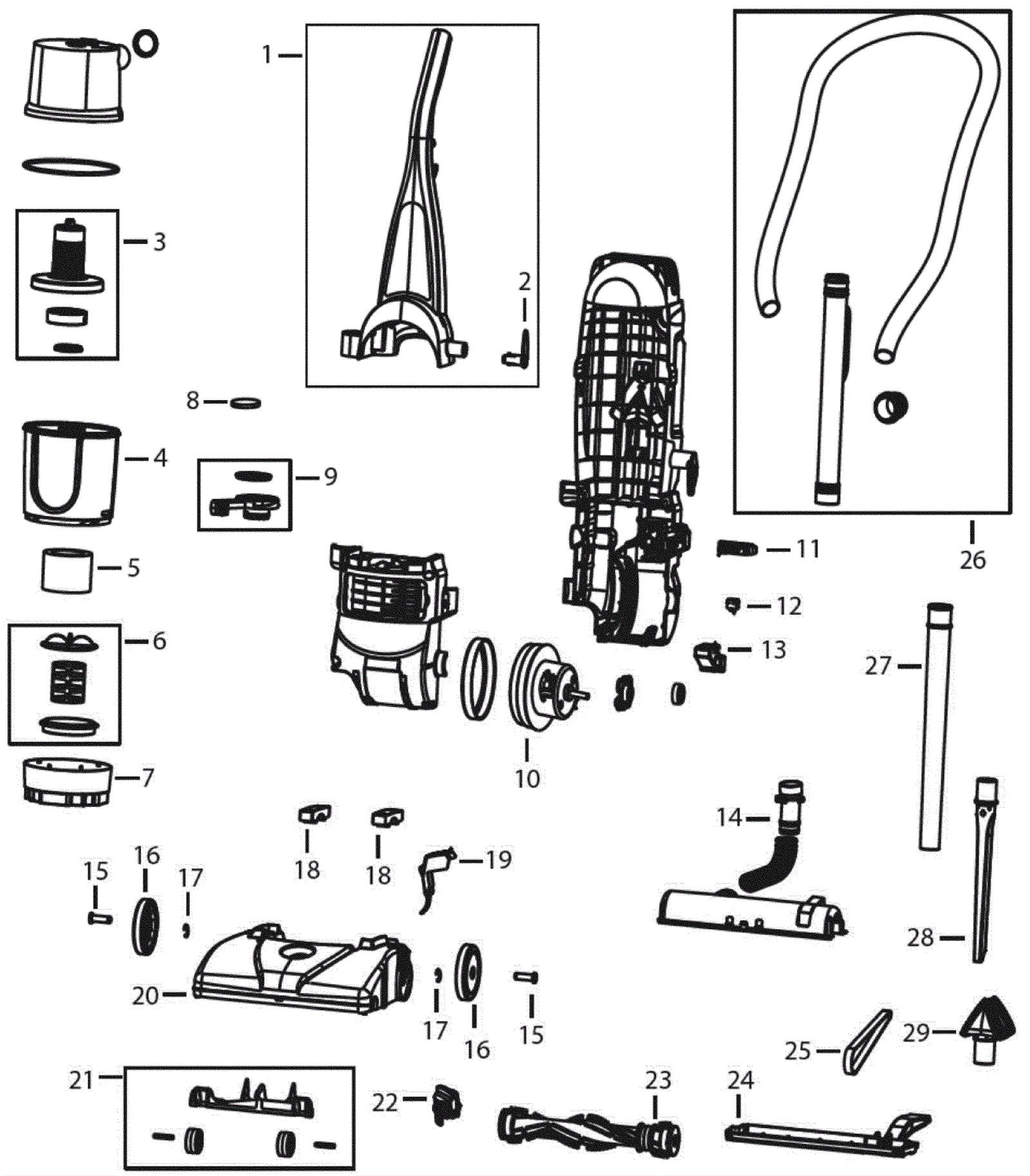

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
194-0588
|
Upper handle (green) |
1 |
|
|
2 |
194-0589
|
Cord wrap (green) |
1 |
(included with item 1) |
|
3 |
194-0590
|
Cyclone assembly (yellow) |
1 |
|
|
4 |
194-0591
|
Dirt cup |
1 |
|
|
5 |
194-0592
|
Foam filter |
1 |
|
|
6 |
194-0593
|
Pleated circular filter |
1 |
|
|
7 |
194-0594
|
Filter case |
1 |
|
|
8 |
194-0595
|
Lever filter |
1 |
|
|
9 |
194-0596
|
Lock and seal lever |
1 |
|
|
10 |
194-0597
|
7amp vacuum motor |
1 |
|
|
11 |
194-0598
|
Switch button |
1 |
|
|
12 |
194-0599
|
Main switch |
1 |
|
|
13 |
194-0600
|
Switch cap |
1 |
|
|
14 |
194-0601
|
Foot hose assembly |
1 |
|
|
15 |
194-0602
|
Axle |
2 |
|
|
16 |
194-0184
|
Rear wheel (OBSOLETE) |
2 |
|
|
17 |
194-1100
|
E-ring |
2 |
|
|
18 |
194-0603
|
Neck brush (green) |
2 |
|
|
19 |
194-1103
|
Lever release (yellow) |
1 |
|
|
20 |
194-0605
|
Top cover (green) |
1 |
|
|
21 |
194-9034
|
Roller assembly with axle |
1 |
|
|
22 |
194-0607
|
Height adjustment knob |
1 |
|
|
23 |
194-0608
|
Brush roll |
1 |
|
|
24 |
194-0609
|
Base brush |
1 |
|
|
25 |
194-0610
|
Belt (2 pack) |
1 |
|
|
26 |
194-0611
|
Hose assembly |
1 |
|
|
27 |
194-0583
|
Wand extension |
1 |
|
|
28 |
194-0584
|
Crevice tool |
1 |
|
|
29 |
194-0585
|
Combo tool |
1 |
|
|
N/S |
194-0612
|
Power cord |
1 |
|
|
N/S |
194-0582
|
Screw |
1 |
|
|
N/S |
194-8990
|
User guide |
1 |
|
|
