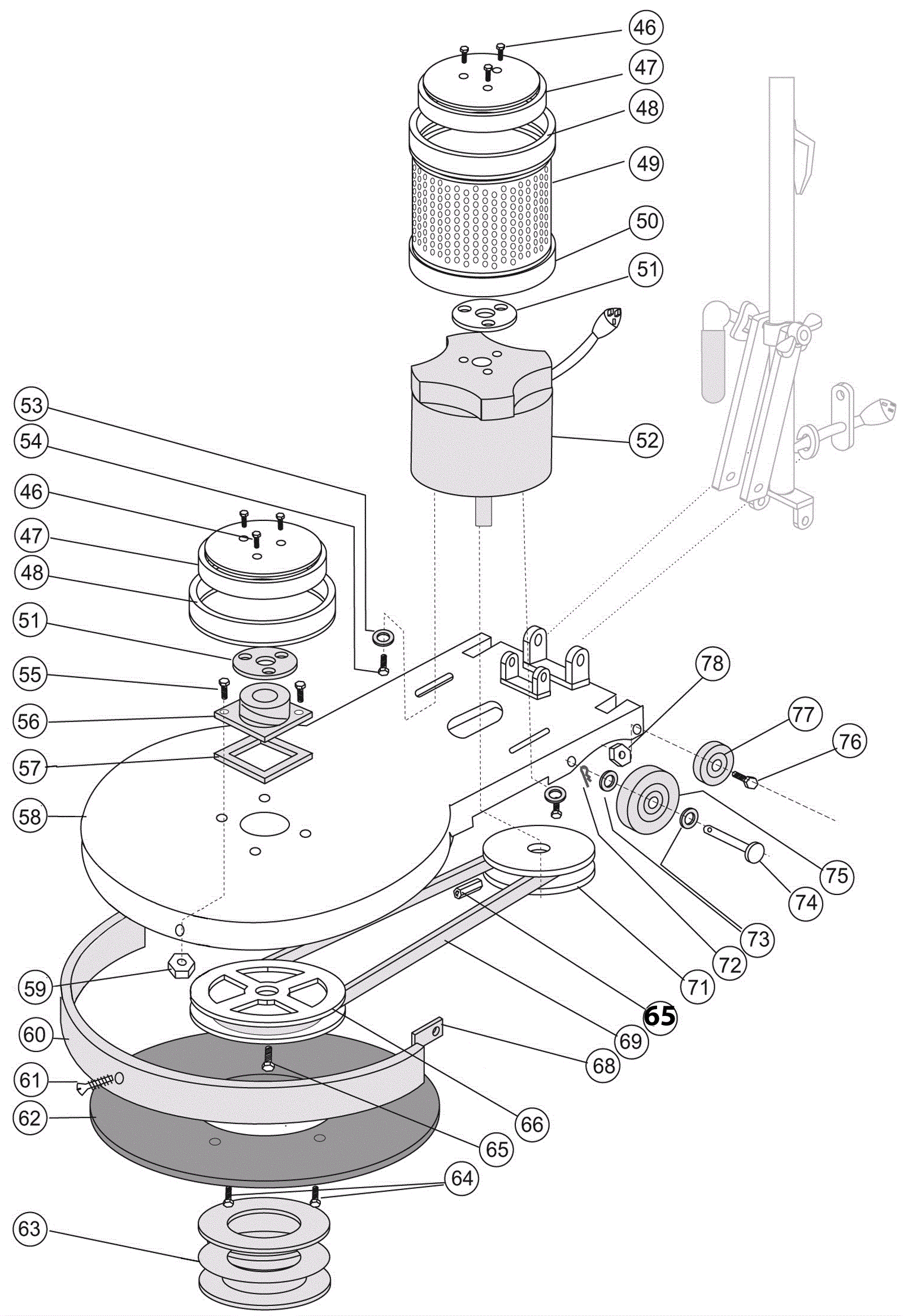

BGDC-19 Motor and Deck Assembly

#PartDescriptionPriceReqNotesAvailability
46 263-1074 Drip cap mounting screw $3.66 6 usually ships 12-17 days
47 263-1054 Front drip cap cover $81.40 2 usually ships 12-17 days
48 194-9019 Drip cap cover bumper (green) Call for price 2 usually ships 12-17 days
49 263-1075 Two-speed motor screen $51.44 1 usually ships 12-17 days
50 194-9020 UHS motor screen bumper (green) Call for price 1 usually ships 12-17 days
51 263-1077 Cork drip cap gasket $18.37 2 usually ships 12-17 days
52 263-1011 Imperial motor $786.50 1 usually ships 12-17 days
53 263-5059 Washer $2.20 2 usually ships 12-17 days
54 263-1012 Motor mounting bolt $2.20 2 usually ships 1-5 days
55 263-5062 Bearing block mount bolt $4.40 4 usually ships 12-17 days
56 263-1056 Bearing block $198.00 1 usually ships 12-17 days
57 263-5061 Bearing block gasket $7.70 1 usually ships 12-17 days
58 263-5064 21 inch base casting $792.00 1 usually ships 12-17 days
59 263-5065 Motor mount lock nut $2.20 4 usually ships 12-17 days
60 194-9021 Bumper (green) Call for price 1 usually ships 12-17 days
61 268-0013 Screw $4.40 4 usually ships 12-17 days
62 263-1057 20 inch floppy disk pad driver $220.00 1 usually ships 12-17 days
63 194-9022 Big mouth blue retainer Call for price 1 usually ships 12-17 days
64 263-1042 Apron screw $4.40 4 usually ships 12-17 days
65 263-5069 Bolt $2.20 2 usually ships 12-17 days
66 263-5070 Pulley driver $157.30 1 usually ships 12-17 days
68 194-9023 Bumper strap Call for price 1 usually ships 12-17 days
69 263-1048 Drive belt $36.30 1 usually ships 12-17 days
71 263-5076 Pulley for 1500RPM motor $77.00 1 usually ships 12-17 days
72 263-5043 Cotter pin $4.40 2 usually ships 12-17 days
73 263-1031 Spring washer $5.50 4 usually ships 12-17 days
74 263-5042 Axle $12.10 2 usually ships 12-17 days
75 263-1029 6 inch wheel $40.70 2 usually ships 12-17 days
76 263-5077 Transport wheel axle bolt $4.40 2 usually ships 12-17 days
77 263-5035 4 inch transport wheel $16.50 2 usually ships 12-17 days
78 263-5078 Lock nut $2.20 2 usually ships 12-17 days
