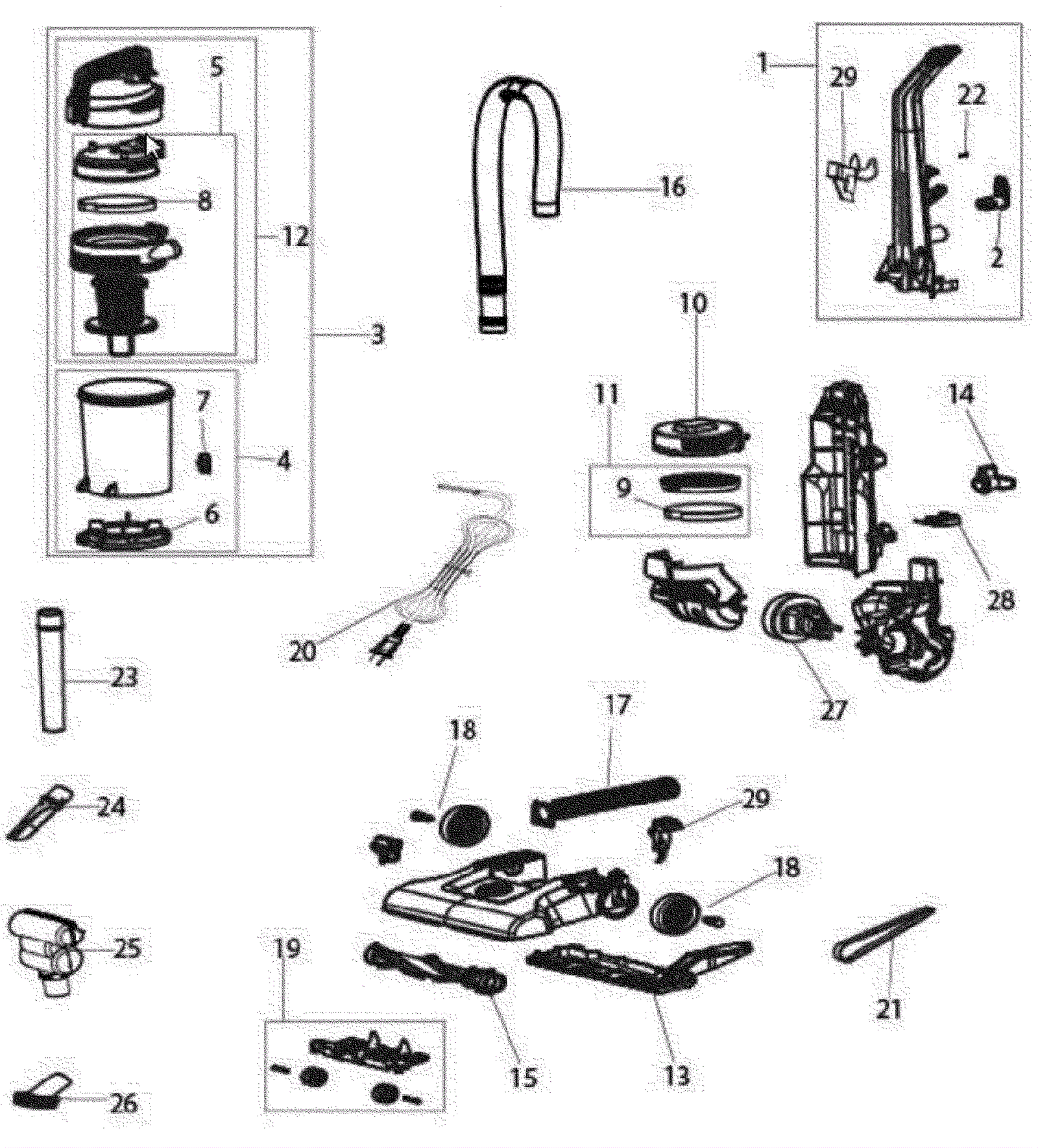

POWERFORCE HELIX 2190 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (Handle) (includes 2, 22, and 29) usually ships 3-26 days
2 194-1074 Cord wrap $1.26 1 usually ships 6-16 days
3 194-1075 Dirt cup $34.25 1 (includes 4-8 and 12) usually ships 6-16 days
4 N/A Not available Call for price 1 (Lower dust tank assembly) (includes 6 and 7) usually ships 3-26 days
5 194-1076 Separator $9.45 1 (includes 8) usually ships 6-16 days
6 N/A Not available Call for price 1 (Dust tank bottom) usually ships 3-26 days
7 N/A Not available Call for price 1 (Release button) usually ships 3-26 days
8 194-1077 Pre-motor filter $6.91 1 usually ships 6-16 days
9 194-1078 Filter $1.50 1 usually ships 6-16 days
10 194-1079 Filter cover $4.00 1 usually ships 6-16 days
11 194-1080 Post motor filter $3.36 1 (includes 9) usually ships 6-16 days
12 194-1081 Upper dust tank $22.96 1 (includes 5 and 8) usually ships 6-16 days
13 194-1082 Bottom plate $6.15 1 usually ships 6-16 days
14 194-1083 Lower cord wrap $1.64 1 usually ships 6-16 days
15 194-1071 Brush roll $32.69 1 usually ships 16-36 days
16 194-9014 Hose unit $19.93 1 usually ships 6-16 days
17 194-1084 Nozzle hose $4.96 1 usually ships 6-16 days
18 194-1085 Axle wheel $3.26 2 usually ships 6-16 days
19 194-1086 Front wheel assembly $8.58 1 usually ships 6-16 days
20a 194-1087 Power cord $17.60 1 usually ships 6-16 days
20b 991-5002 16/3 extension cord 50 foot (yellow) $38.98 1 ships same day
21 194-1053 Belt (pkg of 2) $5.78 1 ships same day
22 194-0582 Screw $1.00 1 usually ships 6-16 days
23 194-1088 Extension wand $4.64 1 usually ships 6-16 days
24 194-1089 Crevice tool (OBSOLETE) Call for price 1 usually ships 6-16 days
25 194-1090 Turbo brush $14.16 1 usually ships 6-16 days
26 194-1091 Upholstery tool $3.38 1 usually ships 6-16 days
27 194-1092 Motor $35.54 1 usually ships 6-16 days
28 194-1093 Switch button $1.60 1 usually ships 6-16 days
