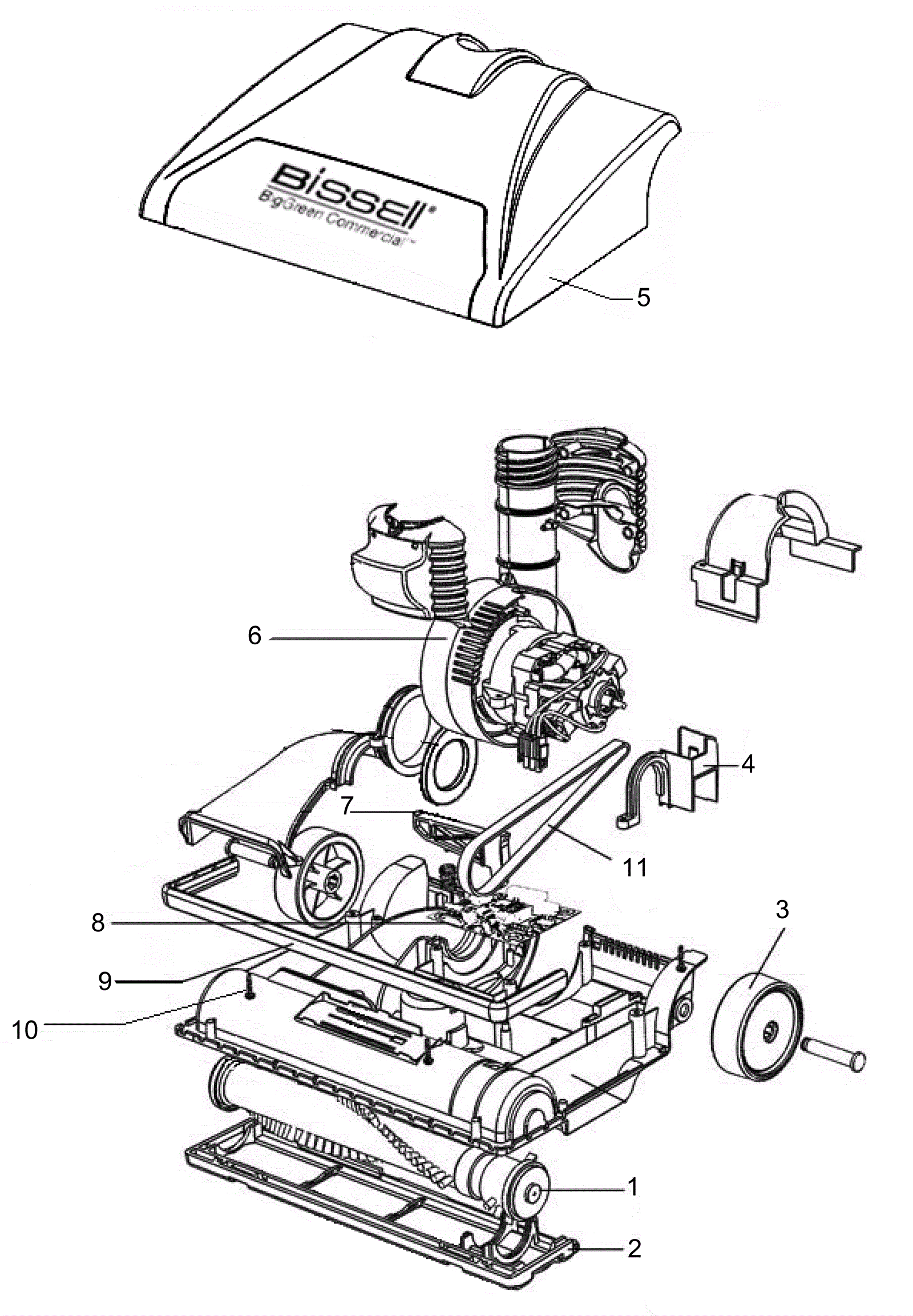

BGU5500 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 194-1029 Brush roll $16.90 1 usually ships 12-17 days
2 194-1030 Brush roll cover $7.23 1 usually ships 12-17 days
3 194-1031 Rear wheel assembly $19.91 2 usually ships 12-17 days
4 194-1033 Rear motor clamp Call for price 1 usually ships 12-17 days
5 194-1034 Top cover assembly Call for price 1 usually ships 12-17 days
6 194-1035 AC motor and fan assembly Call for price 1 usually ships 12-17 days
7 194-1036 Handle release assembly Call for price 1 usually ships 12-17 days
8 194-1037 Main PCB assembly $33.07 1 usually ships 12-17 days
9 194-1038 Bumper Call for price 1 usually ships 12-17 days
10 194-1039 Screw Call for price 4 usually ships 12-17 days
11 194-1032 Belt (OBSOLETE) $10.57 1 usually ships 12-17 days
