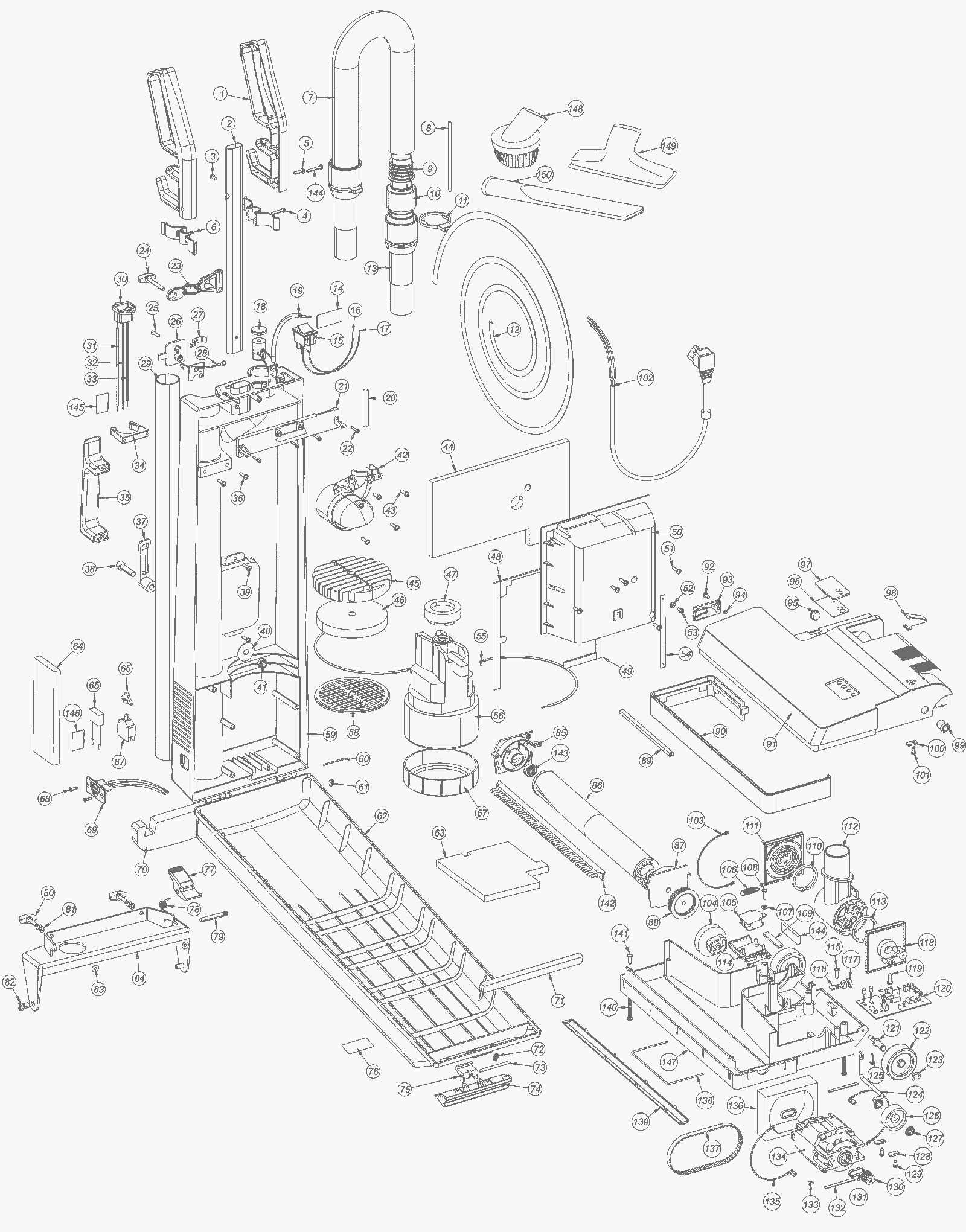

Entire Assembly

#PartDescription ReqNotesAvailability
1 194-0877 Handle 1
2 194-0878 Aluminum tube 1
3 194-0879 Screw 1
4 194-0880 Screw 1
5 194-0881 Screw 1
6 194-0882 Tool holder 1
7a 194-0883 20 inch stretchable hose 1
7b 194-0884 Hose assembly 1
8 194-0885 Hose coupling 1
9 194-0886 Hose end 1
10 194-0887 Hose coupling without seal 1
11 194-0888 Hose clip with lip (black) 1
12 194-0889 Vacuum tube 1
13 194-0890 Hose cuff 1
14 194-0891 Warning decal 1
15 194-0397 Switch (light green) 1
16 194-0893 Wire (black) 1
17 194-0894 Wire (white) 1
18 194-0895 Full bag indicator 1
19 194-0896 Main wire 1
20 194-0897 Gasket 1
21 194-0898 Electric cover 1
22 194-0881 Screw 1
23a 194-0900 Cable restraint assembly 1
23b 194-0691 Can side restraint 1
23c 194-0902 Metal ring 1
23d 194-0469 Cable restrain 1
24 194-0904 Screw 1
25 194-0881 Screw 1
26 194-0905 Antistatic cover 1
27 194-0906 Antistatic discharge 1
28 194-0907 Antistatic wire 1
29 194-0908 Telescopic wand 1
30 194-0501 Receptable inlet 1
31 194-0894 Wire (white) 1
32 194-1028 Wire (black) 1
33 194-0909 Wire (yellow and gray) 1
34 194-0910 Wand lock (yellow) 1
35 194-0911 Rear body handle 1
36 194-0912 Screw 1
37 194-0913 Cable hook (black) 1
38 194-0914 Screw 1
40 194-0915 Washer package 1
41 194-0916 Nut 1
42 194-0918 Paper bag mount 1
43 194-0912 Screw 1
44 194-0917 Foam 1
45 194-0919 Dust filter holder 1
46 194-0920 Round filter 1
47 194-0921 Mounting block 1
48 194-0922 Upper gasket motor housing 1
49 194-0923 Lower gasket motor housing 1
50 194-0924 Motor housing 1
51 194-0881 Screw 1
52 194-0925 Washer 1
53 194-0926 Screw 1
54 194-0927 Door restrain 1
55 194-0928 Wire (black) 1
56 194-0929 120V motor 1
57 194-0930 Rubber top 1
58 194-0931 Motor grill 1
59a 194-0932 Rear body (gray) 1
59b 194-0933 Rear body assembly (gray) 1
60 194-0934 Door hinge shaft 1
61 194-0926 Screw 1
62 194-0935 Front door (gray) 1
63 194-0936 Foam 1
64 194-0937 Exhaust 1
65 194-0938 RFI terminal 1
66 194-0939 Actuator switch (yellow) 1
67 194-0940 Switch 1
68 194-0941 Screw 1
69 194-0942 3 pole wiring 1
70 194-0943 Rubber bumper (black) 1
71 194-0944 Inside door seal 1
72 194-0945 Spring 1
73 194-0946 Shaft 1
74 194-0947 Door opener 1
75 194-0948 Door lock 1
76 194-0949 Decal 1
77 194-0950 Locking pedal (yellow) 1
78 194-0951 Spring 1
79 194-0952 Pedal shaft 1
80 194-0953 Thumb screw 1
81 194-0954 Lock washer 1
82 194-0955 Screw 1
83 194-0956 Fiber ring 1
84 194-0957 Bracket 1
85 194-0958 Right hand roller support 1
86a 194-0959 Roller assembly with strip (UP350) 1
86b 194-0960 Roller assembly with strip (UP460) 1
87 194-0961 Left hand roller support 1
88 194-0962 Brush driver 1
89 194-0897 Gasket 1
90a 194-0964 Brush bumper (gray) (UP350) 1
90b 194-0965 Brush bumper (gray) (UP460) 1
91a 194-0966 Brush cover assembly (UP350) 1
91b 194-0967 Brush cover assembly (UP460) 1
92 194-0968 Screw 1
93 194-0969 Brush strip 1
95 194-0970 Bearing 1
96 194-0971 Insert 1
97 194-0972 LED cover 1
98 194-0973 Latch break 1
99 194-0974 Long bearing 1
100 194-0975 Front castor shaft 1
101 194-0879 Screw 1
102 194-0977 50 foot cable 1
103 194-0978 Wire (black) 1
104 194-0979 Front castor adjustment button 1
105 194-0980 Switch 1
106 194-0981 Spring 1
107 194-0925 Washer 1
108 194-0879 Screw 1
109 194-0984 Felt 1
110 194-0985 Felt 1
111 194-0986 Swivel guide plate with felt 1
112 194-0987 Swivel neck 1
113 194-0985 Felt 1
114 194-0989 Switch housing 1
115 194-0990 Screw 1
116 194-0991 Fixing plate 1
117 194-0992 Screw 1
118 194-0993 Swivel guiding plate with felt 1
119 194-0912 Screw 1
120 194-0995 120V electronic board 1
121 194-0996 Shaft 1
122 194-0997 Rear castor with bearing 1
123 194-0998 Circlip 1
124 194-0999 Front castor shaft 1
125 194-0881 Screw 1
126 194-1000 Front castor 1
127 194-1001 Starlock 1
128 194-0991 Fixing plate 1
129 194-0879 Screw 1
130 194-1004 Belt driver 1
131 194-1005 Rubber ring 1
132 194-1006 Gasket 1
133 194-1007 Clip 1
134 194-1008 115V brush motor assembly 1
135 194-1009 Wire 1
136 194-1010 Foam 1
137 194-1011 Single tooth belt 1
138 194-1012 Wire 1
139a 194-1013 Brush protector (UP350) 1
139b 194-1014 Brush protector (UP460) 1
140 194-1015 Screw 1
141 194-0881 Screw 1
142a 194-1016 Brush strip (black) (UP350) 1
142b 194-1017 Brush strip (black) (UP460) 1
143 194-1018 Ball bearing 1
144 194-1019 Felt 1
145 194-1020 Connection bracket 1
146 194-0872 3 position connection bracket 1
147a 194-1021 Brush housing (UP350) 1
147b 194-1022 Brush housing (UP460) 1
148 194-1023 Round dusting brush 1
149 194-1024 Round dusting brush 1
150 194-1025 Crevice tool 1
151 194-1026 18 inch pigtail 1
