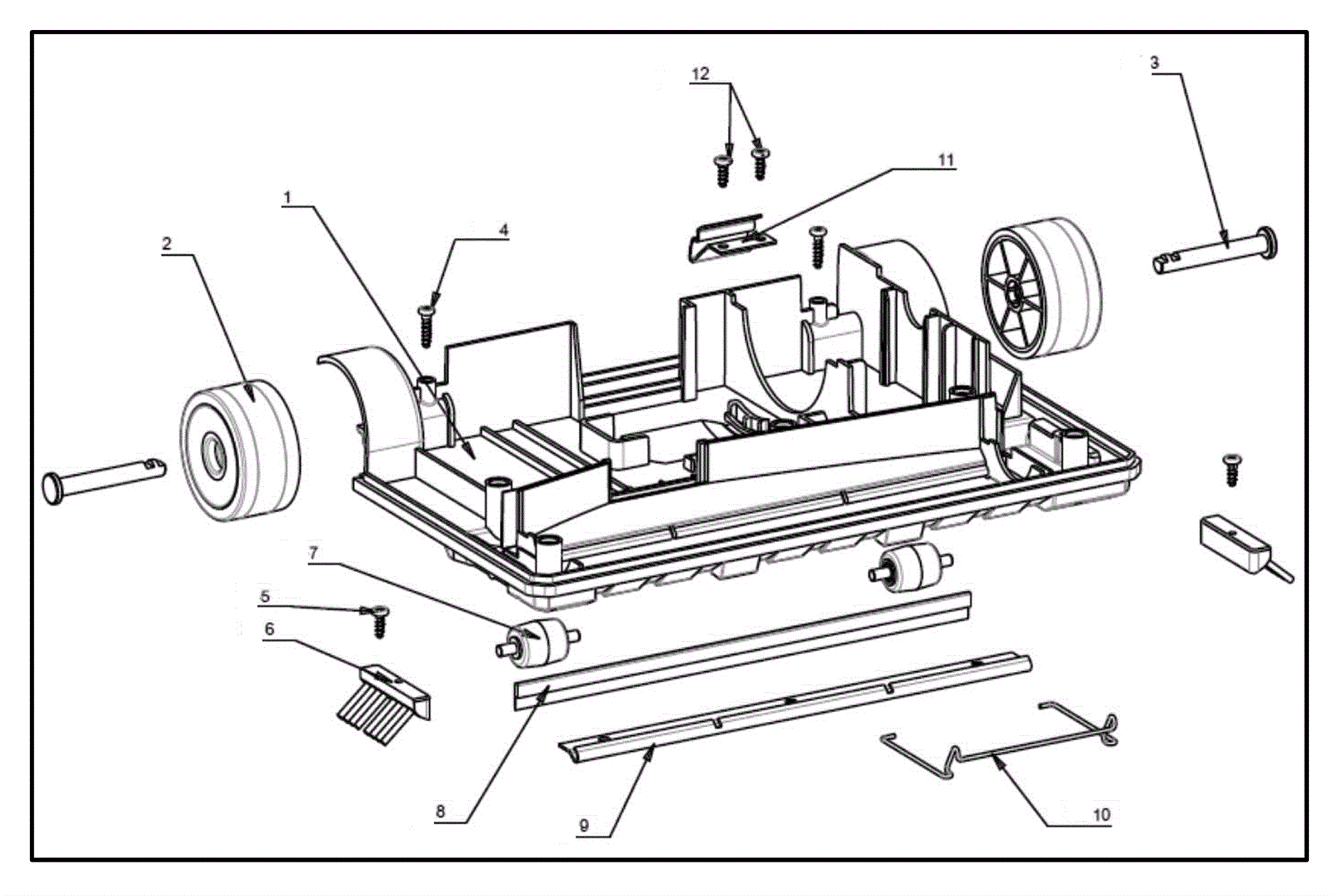

BGU8000 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 194-0652 Base plate $19.23 1 usually ships 6-16 days
2 194-0653 Rear wheel with oil bearing $5.50 2 usually ships 6-16 days
3 194-0654 Rear wheel shaft $2.57 1 usually ships 6-16 days
4 194-0655 Screw $0.99 1 usually ships 6-16 days
5 194-0656 Screw $0.99 1 usually ships 6-16 days
6 194-0657 Side brush $1.36 1 usually ships 6-16 days
7 194-0658 Front roller with shaft $4.00 1 usually ships 6-16 days
8 194-0659 Rubber blade $0.99 1 usually ships 6-16 days
9 194-0660 Bottom metal plate $5.50 1 usually ships 6-16 days
10 194-0661 Support frame $3.19 1 usually ships 6-16 days
11 194-0662 Detent $3.52 1 usually ships 6-16 days
12 194-0663 Screw $0.99 1 usually ships 6-16 days
