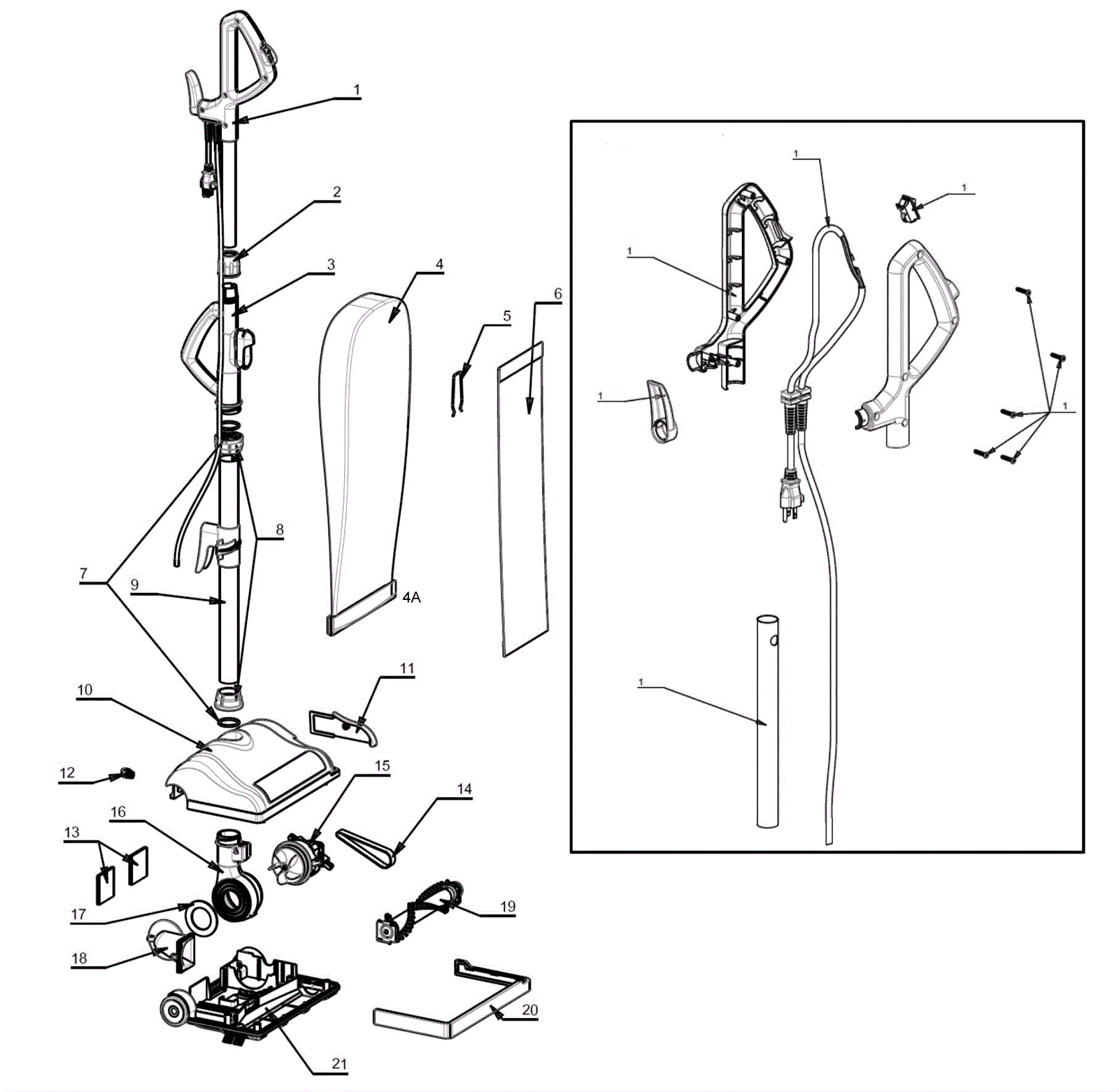

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
194-0613
|
Handle tube |
1 |
|
|
1b |
194-0614
|
Top handle grip |
1 |
|
|
1c |
194-0615
|
Upper cord hook |
1 |
|
|
1d |
194-0616
|
Cord harness with pig tail |
1 |
|
|
1e |
194-0617
|
On/off switch |
1 |
|
|
1f |
194-0618
|
Upper tube |
1 |
|
|
1g |
194-0619
|
Screw |
1 |
|
|
2 |
194-0620
|
Upper collar |
1 |
|
|
3 |
194-0621
|
Carry handle |
1 |
|
|
4a |
194-0622
|
Outer cloth bag |
1 |
|
|
4b |
194-0623
|
Clip |
1 |
|
|
5 |
194-0624
|
Clip |
1 |
|
|
6a |
194-0625
|
Paper bag (pkg of 10) |
1 |
|
|
6b |
194-0626
|
Paper bag (pkg of 25) |
1 |
|
|
7 |
194-0166
|
O-ring |
2 |
|
|
8 |
194-0167
|
Lower retaining collar |
1 |
|
|
9 |
194-0168
|
Lower tube assembly |
1 |
|
|
10 |
194-0630
|
Housing |
1 |
|
|
11 |
194-0631
|
Belt cover |
1 |
|
|
12 |
194-0632
|
Strain relief bushing |
1 |
|
|
13 |
194-0633
|
Exhaust foam |
1 |
|
|
14a |
194-0169
|
Belt |
1 |
|
|
14b |
194-0635
|
Belt |
1 |
|
|
15 |
194-0636
|
Motor assembly |
1 |
|
|
16 |
194-0125
|
Fan housing |
1 |
|
|
17 |
194-0126
|
Inlet duct gasket |
1 |
|
|
18 |
194-0127
|
Inlet duct |
1 |
|
|
19a |
194-0170
|
Brush roller |
1 |
|
|
19b |
194-0649
|
Brush roller (for BGU8500) |
1 |
|
|
20 |
194-0650
|
Furniture guard bumper |
1 |
|
|
21 |
194-0651
|
Base plate assembly |
1 |
|
|
