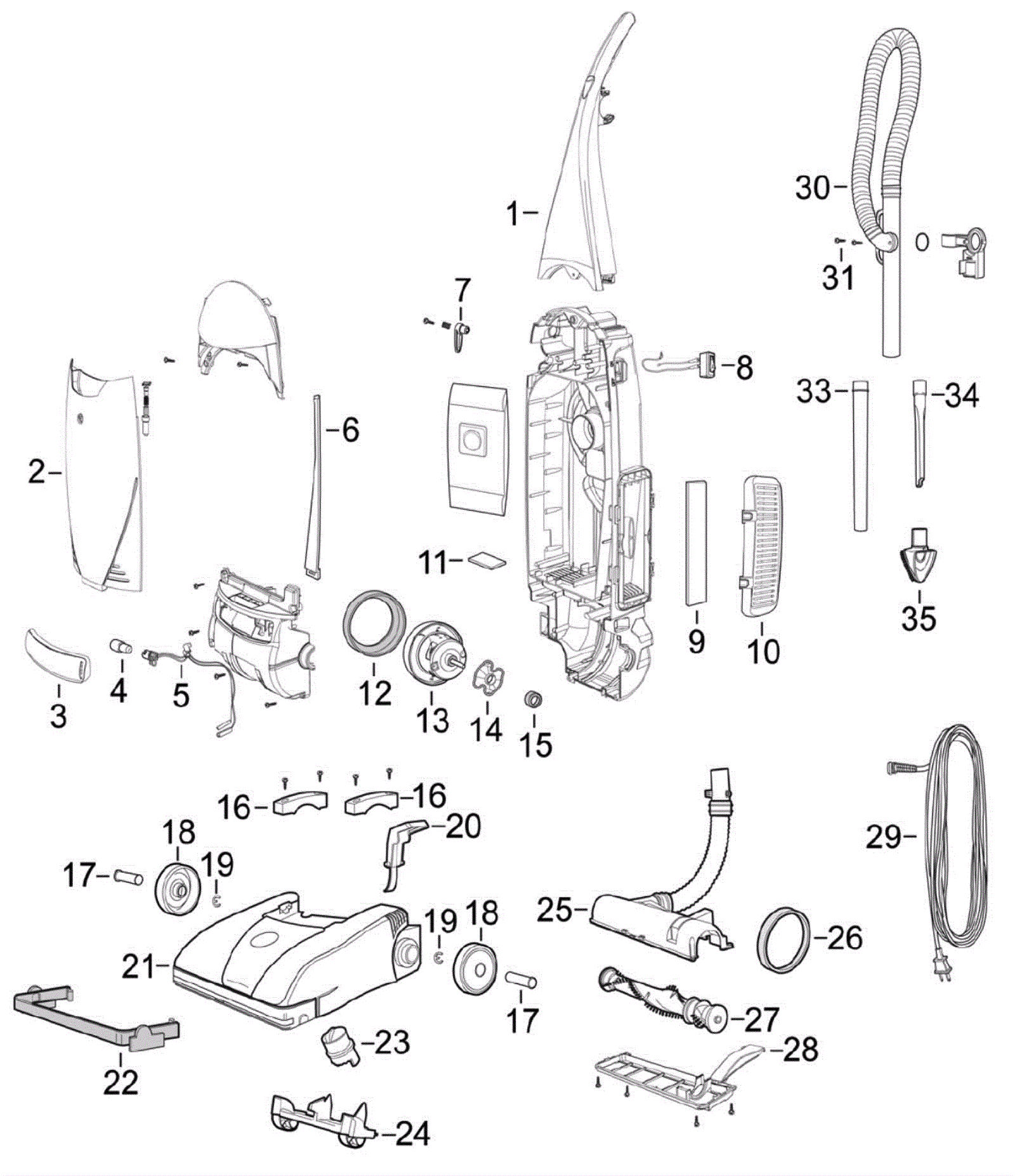

BGU1451T Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1a 194-0555 Handle assembly (green) $13.50 1 usually ships 6-16 days
1b 194-0556 Handle assembly (black) $13.50 1 usually ships 6-16 days
2a 194-0557 Bag door (black) $9.48 1 usually ships 6-16 days
2b 194-0558 Bag door (burgundy) $9.48 1 usually ships 6-16 days
3 N/A Not available Call for price 1 (Cover) usually ships 3-26 days
4 N/A Not available Call for price 1 (Plug) usually ships 3-26 days
5 N/A Not available Call for price 1 (Wire) usually ships 3-26 days
6 N/A Not available Call for price 1 (Connector) usually ships 3-26 days
7 194-0559 Cord release $2.20 1 usually ships 6-16 days
8 194-0560 Switch $5.50 1 usually ships 6-16 days
9 194-0561 Post motor filter $1.76 1 usually ships 6-16 days
10 194-0562 Post filter grille $5.50 1 usually ships 6-16 days
11 194-0563 Pre motor filter $5.50 1 usually ships 6-16 days
12 194-0564 Foam $3.30 1 usually ships 6-16 days
13 194-0565 Vacuum motor $32.15 1 usually ships 6-16 days
16 194-0565 Vacuum motor $32.15 2 usually ships 6-16 days
17 194-0567 Axle $3.30 2 usually ships 6-16 days
18 194-0185 Thick rear wheel $4.40 2 usually ships 6-16 days
19 194-0569 E-ring $3.30 2 usually ships 6-16 days
20 194-0570 Lever release $3.85 1 usually ships 6-16 days
21 N/A Not available Call for price 1 (Foot cover) usually ships 3-26 days
22 194-0571 Bumper (OBSOLETE) $6.44 1 usually ships 6-16 days
23 194-0572 Height adjustment knob $6.44 1 usually ships 6-16 days
24 194-0573 Front wheel assembly $8.66 1 ships same day
25 194-0574 Case drum assembly $13.78 1 usually ships 6-16 days
26 194-0575 Belt $2.42 1 ships same day
27 194-0179 Brush $12.86 1 ships same day
28a 194-0577 Access plate $12.86 1 usually ships 6-16 days
28b 194-0578 Access plate $12.86 1 usually ships 6-16 days
29a 194-0579 Cord $27.56 1 ships same day
29b 194-0580 Hard wire pig tail cord $22.97 1 usually ships 6-16 days
30 194-0581 Hose assembly $14.71 1 ships same day
31 194-0582 Screw $1.10 1 usually ships 6-16 days
33 194-0583 Wand extension $5.50 1 usually ships 6-16 days
34 194-0584 Crevice tool $4.40 1 usually ships 6-16 days
35 194-0585 Combo tool $5.50 1 usually ships 6-16 days
N/S 194-0587 Vacuum bag (pkg of 25) $35.77 1 usually ships 6-16 days
