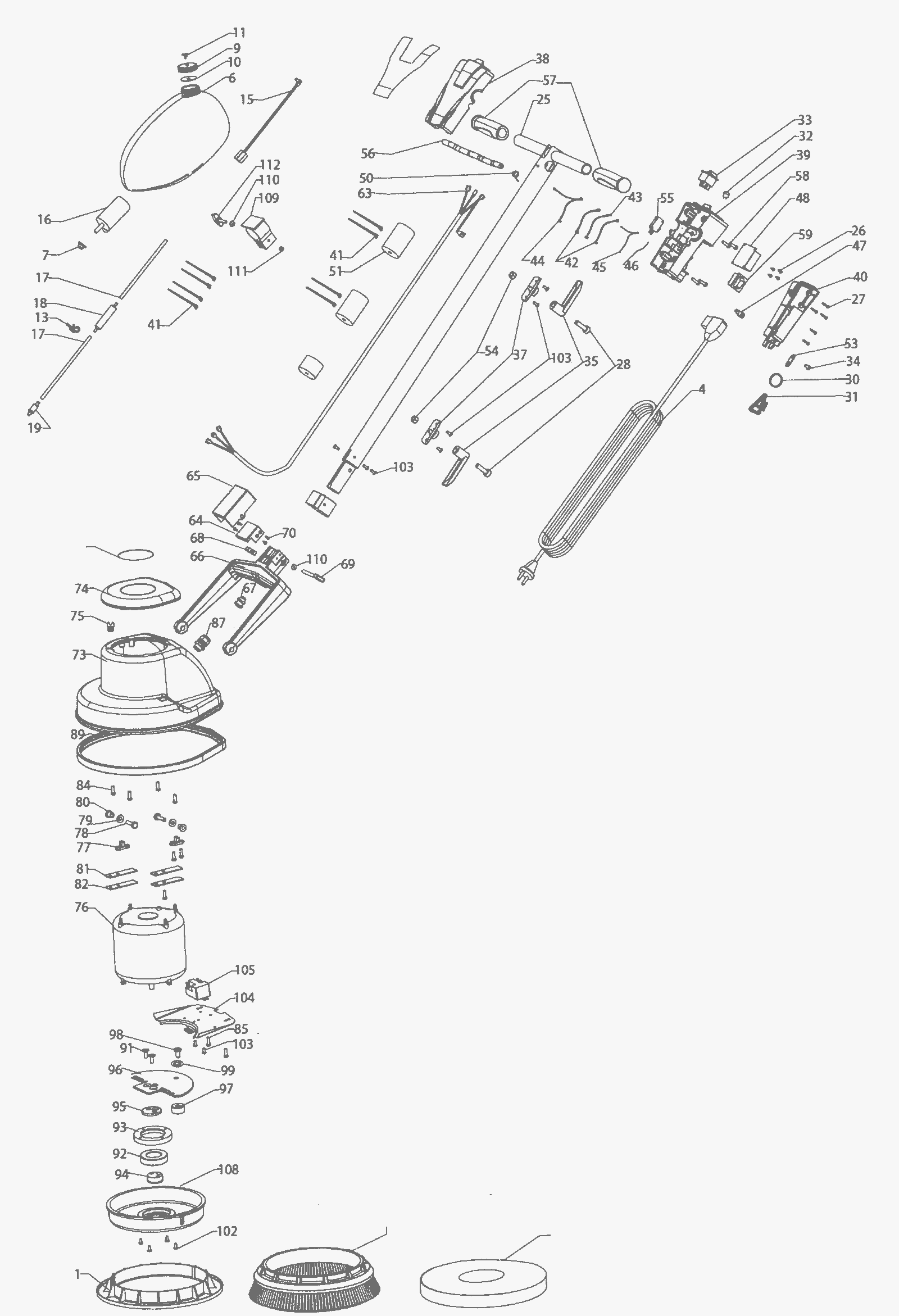

Entire Assembly

#PartDescription ReqNotesAvailability
1 194-0439 Pad driver 1
2 194-0440 Box 1
3 194-0441 Pear cotton plate head 1
4 194-0442 Detachable cordset 1
5 194-0443 Decal 1
6 194-0444 Water tank (white) 1
7 194-0445 Rubber ring 1
8 194-0446 Breathing valve cap (yellow) 1
9 194-0447 Cap (yellow) 1
10 194-0448 Washer (white) 1
11 194-0449 Breathing valve 1
12 194-0450 Water pump with hose 1
13 194-0451 Hose clip 1
14 194-0452 Cable belt 1
15 194-0453 Pump motor cord 1
16 194-0454 24V water pump 1
17 194-0455 Water hose 1
18 194-0456 Dripping pot 1
19 194-0457 Spray nozzle 1
20 194-0458 Spray nozzle housing 1
21 194-0459 One way valve cap (black) 1
22 194-0460 Rubber pad holder 1
23 194-0461 Rubber pad 1
24 194-0462 Spring 1
25 194-0463 Handle assembly 1
26 194-0464 Screw M3-.5 x 8mm 1
27 194-0465 Screw M3-.5 x 12mm 1
28 194-0466 Screw M8-1.25 x 27mm 1
29 194-0467 Sealed rivet 1
30 194-0468 Metal ring 1
31 194-0469 Cable restrain 1
32 194-0470 Push switch (black) 1
33 194-0397 Switch (light green) 1
34 194-0471 Screw 1
35 194-0472 Cable hook (black) 1
36 194-0473 Handle tube (silver) 1
37 194-0474 Cable holder adaptor 1
38 194-0475 Front handle cover 1
39 194-0476 Middle handle cover 1
40 194-0477 Rear handle cover (black) 1
41 194-0478 Cable 1
42 194-0479 Power inlet to main switch wire 1
43 194-0480 Ground wire 1
44 194-0481 Main switch to transforma wire 1
45 194-0482 Pump switch wire 1
46 194-0483 Pump switch to outlet wire 1
47 194-0490 DC connector 1
48 194-0491 12V power box 1
49 194-0492 Fixed housing 1
50 194-0493 Switch lever spring 1
51 194-0494 Foam 1
52 194-0495 Tube bushing 1
53 194-0496 Cable grip 1
54 194-0497 Nut 1
55 194-0498 Power unit switch 1
56 194-0499 Handle control unit 1
57 194-0500 Grip control 1
58 194-0385 Screw M5 x 16 1
59 194-0501 Receptable inlet 1
60 194-0502 Alignment pin 1
61 194-0503 Pivot 1
62 194-0504 Rivet 1
63 194-0505 Core cable with female connector 1
64 194-0506 Outlet connector cover 1
65 194-0507 Cover 1
66 194-0508 Support bracket 1
67 194-0509 Cable insert 1
68 194-0510 Nut 1
69 194-0511 Screw M6 x 55mm 1
70 194-0512 Screw M3 x 10mm 1
71 194-0513 Motor housing (green) 1
72 194-0514 Washer 1
73 194-0515 Motor housing 1
74 194-0516 Cover (green) 1
75 194-0517 Spray nozzle holder (OBSOLETE) 1
76 194-0518 1/2HP 115V motor 1
77 194-0519 Bracket holder 1
78 194-0520 Shaft support bracket 1
79 194-0521 Washer 1
80 194-0522 Axis 1
81 194-0523 Shim (plastic) 1
82 194-0524 Shim (steel) 1
83 999-1182 Screw M5-.8 x 16mm pan head slotted stainless steel 1
84 194-0525 Screw M5-.8 x 16mm nylon 1
85 194-0526 Screw M5-.8 x 12mm 1
86 194-0527 Shakeproof washer 1
87 194-0528 Cable gland 1
88 N/A Not available 1 (Locktite)
89 194-0529 PVC bumper 1
90 194-0530 Driver plate 1
91 194-0531 Screw 1
92 194-0532 Bearing 1
93 194-0533 Bearing case 1
94 194-0534 Connector 1
95 194-0535 Washer bearing 1
96 194-0536 Driver plate 1
97 194-0537 Driver block 1
98 194-0538 Screw 1
99 194-0539 Washer 1
100 N/A Not available 1 (Locktite)
101 194-0540 Relay holder plate 1
102 194-0541 Screw 1
103 194-0467 Sealed rivet 1
104 194-0543 Relay holder plate 1
105 194-0544 115V relay 1
106 194-0545 Drive disk assembly 1
107 194-0541 Screw 1
108 194-0547 Drive disk 4
109 194-0484 Holder 11
110 194-0485 Washer 4
111 194-0486 Nut M5 4
112 194-0487 Thumb screw 4
