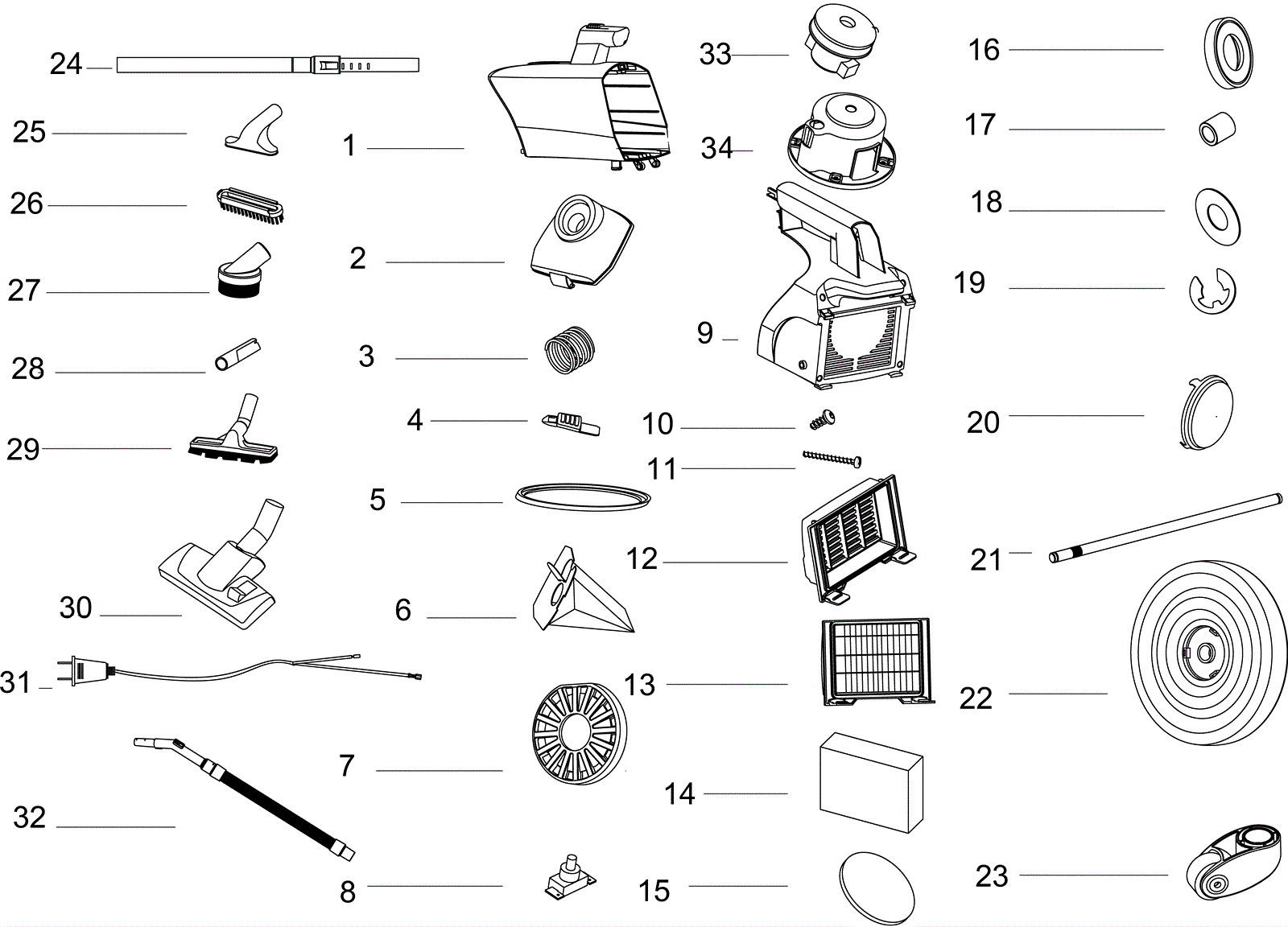

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
194-0346
|
Main body housing |
1 |
|
|
2 |
194-0347
|
Front cover |
1 |
|
|
3 |
194-0348
|
Release button spring |
1 |
|
|
4 |
194-0349
|
Front cover release button |
1 |
|
|
5 |
194-0350
|
Front cover seal |
1 |
|
|
6a |
194-0380
|
Filter bag (pkg of 12) |
1 |
|
|
6b |
194-0381
|
Cloth bag |
1 |
|
|
7 |
194-0351
|
Motor seal |
1 |
|
|
8 |
194-0352
|
Switch |
1 |
|
|
9 |
194-0355
|
Rear cover |
1 |
|
|
10 |
194-0356
|
Screw |
1 |
|
|
11 |
194-0357
|
Screw |
1 |
|
|
12 |
194-0358
|
Exhaust frame |
1 |
|
|
13 |
194-0359
|
Filter |
1 |
|
|
14 |
194-0359
|
Filter |
1 |
|
|
15 |
194-0361
|
Foam filter |
1 |
|
|
16 |
194-0362
|
Motor cusion |
1 |
|
|
17 |
194-0363
|
Oil bearing |
1 |
|
|
18 |
194-0364
|
Washer |
1 |
|
|
19 |
194-0365
|
Clip |
2 |
|
|
20 |
194-0366
|
Rear wheel hub cap |
2 |
|
|
21 |
194-0367
|
Rear wheel axle |
1 |
|
|
22 |
194-0368
|
Rear wheel |
2 |
|
|
23 |
194-0369
|
Front swivel wheel |
2 |
|
|
24 |
194-0370
|
Extension wand (chrome) |
1 |
|
|
25 |
194-0371
|
Upholstery tool (OBSOLETE) |
1 |
|
|
26 |
194-0372
|
Slide on brush (OBSOLETE) |
1 |
|
|
27 |
194-0373
|
Dusting brush (OBSOLETE) |
1 |
|
|
28 |
194-0374
|
Crevice tool (OBSOLETE) |
1 |
|
|
29a |
194-0375
|
Hard floor tool (OBSOLETE) |
1 |
|
|
29b |
194-0376
|
Tool kit |
1 |
(includes 25-28) |
|
30 |
194-0377
|
Combo floor tool |
1 |
|
|
31 |
194-0378
|
Power cord |
1 |
|
|
32 |
194-0379
|
Hose |
1 |
|
|
33 |
194-0353
|
Motor |
1 |
|
|
34 |
194-0354
|
Motor shroud |
1 |
|
|
