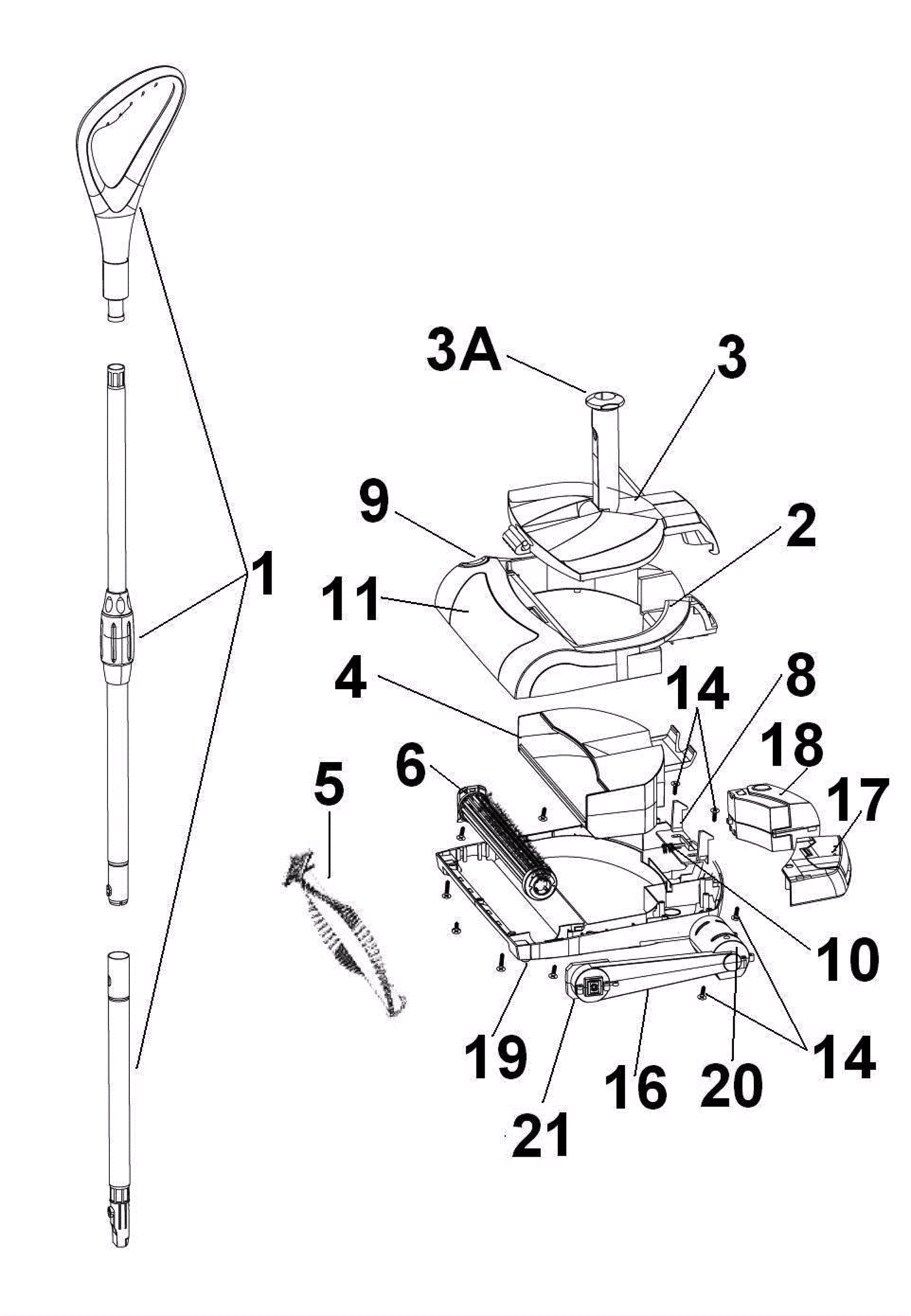

BG9100 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 194-0325 Handle and tube assembly $17.42 1 usually ships 6-16 days
2 194-0326 Top cover $6.94 1 usually ships 6-16 days
3a 194-0327 Dust pan cover with swivel neck $7.51 1 usually ships 6-16 days
3b 194-0328 Swivel neck $1.72 1 usually ships 6-16 days
4 194-0329 Dust pan $7.12 1 usually ships 6-16 days
5 194-0330 Standard brush roller $9.77 1 ships same day
6 194-0331 Pet brush roller $8.20 1 usually ships 6-16 days
8 194-0332 Lock slider $0.99 1 usually ships 6-16 days
9 194-0333 Release button $0.99 1 usually ships 6-16 days
10 194-0334 Release spring $0.99 1 usually ships 6-16 days
11 194-0335 Window $7.67 1 usually ships 6-16 days
14 194-0338 Screw $0.99 10 usually ships 6-16 days
16 194-0340 Drive belt $2.00 1 usually ships 6-16 days
17 194-0341 Switch box $7.71 1 usually ships 6-16 days
18 194-0342 Battery $43.95 1 usually ships 6-16 days
19 194-0343 Bottom base $38.91 1 usually ships 6-16 days
20 194-0344 Motor $16.69 1 usually ships 6-16 days
21 194-0345 Belt pulley $6.82 1 usually ships 6-16 days
N/S 194-0339 Battery charger $21.95 1 ships same day
N/S 194-0336 Wall mount holder $1.98 1 usually ships 6-16 days
N/S 194-0337 Screw $0.99 1 usually ships 6-16 days
