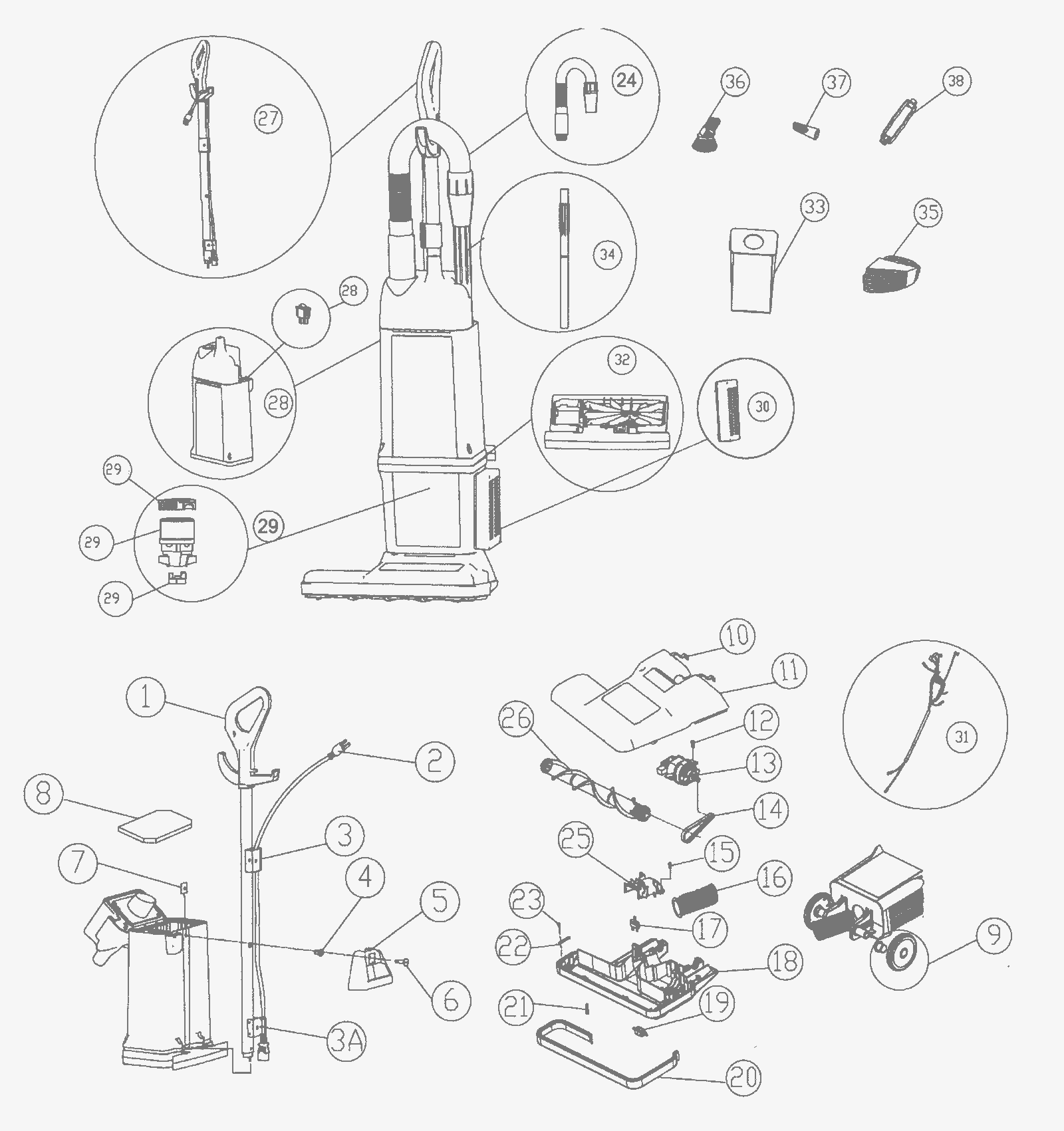

BG1000 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 194-0249 Handle grip $16.53 1 usually ships 12-17 days
2 194-0250 Pigtail $10.18 1 usually ships 12-17 days
3a 194-0251 Upper cord holder $2.33 1 usually ships 12-17 days
3b 194-0252 Lower cord holder $1.89 1 usually ships 12-17 days
4 194-0253 Sleeve $0.99 1 usually ships 12-17 days
5 194-0254 Carry handle $15.79 1 usually ships 12-17 days
6 194-0255 Handle bolt $0.99 1 usually ships 12-17 days
7 194-0256 Square nut $0.99 1 usually ships 12-17 days
8 194-0257 Foam filter $3.34 1 usually ships 12-17 days
9 194-0258 Rear wheel with sleeve bearing (pkg of 2) $19.11 1 usually ships 12-17 days
10 194-0259 Hood with detent springs $30.48 1 usually ships 12-17 days
12 194-0261 Screw $0.99 1 usually ships 12-17 days
13 194-0262 Brush roll motor $55.80 1 usually ships 12-17 days
14a 194-0263 Brush roll belt $5.32 1 usually ships 12-17 days
14b 194-0264 Brush roll v-belt $5.51 1 usually ships 12-17 days
15 194-0265 Screw $0.99 1 usually ships 12-17 days
16 194-0266 Duct hose with cuff assembly $9.16 1 usually ships 12-17 days
17 194-0267 1.6amp circuit breaker $16.06 1 usually ships 12-17 days
18 194-0268 Base assembly (includes bumper and roller) $47.58 1 usually ships 12-17 days
19 194-0269 Front roller wheel and axle $3.70 1 usually ships 12-17 days
20 194-0270 Bumper $8.56 1 usually ships 12-17 days
21 194-0271 Screw $0.99 5 usually ships 12-17 days
22 194-0272 Brush roll retainer $0.99 1 usually ships 12-17 days
23 194-0273 Screw retainer $0.99 1 usually ships 12-17 days
24 194-0274 Hose $36.37 1 usually ships 12-17 days
25 194-0275 Duct hose cover $1.85 1 usually ships 12-17 days
26 194-0276 Brush roller $34.85 1 usually ships 12-17 days
27 194-0277 Handle $45.01 1 usually ships 12-17 days
28a 194-0278 Top bag housing with lid $71.68 1 usually ships 12-17 days
28b 194-0279 On/off switch $13.28 1 usually ships 12-17 days
29a 194-0280 Lower motor housing $65.18 1 usually ships 12-17 days
29b 194-0281 Suction end motor housing gasket $5.51 1 usually ships 12-17 days
29c 194-0282 Vacuum motor $123.28 1 usually ships 12-17 days
29d 194-0283 Commutator end gasket $4.75 1 usually ships 12-17 days
30 194-0284 Exhaust filter $25.92 1 usually ships 12-17 days
31 194-0285 Wire harness $21.59 1 usually ships 12-17 days
32 194-0286 Bulkhead with electrical receptacle $27.64 1 usually ships 12-17 days
33 194-0287 Upright bag (pkg of 12) $19.75 1 ships same day
34 194-0288 Plastic wand $16.29 1 usually ships 12-17 days
35 194-0289 18/3 extension cord 50 foot $43.73 1 usually ships 12-17 days
36 194-0290 Combo tool $16.97 1 usually ships 12-17 days
37 194-0291 Crevice tool $6.28 1 usually ships 12-17 days
38 194-0292 Cord connector $3.65 1 usually ships 12-17 days
