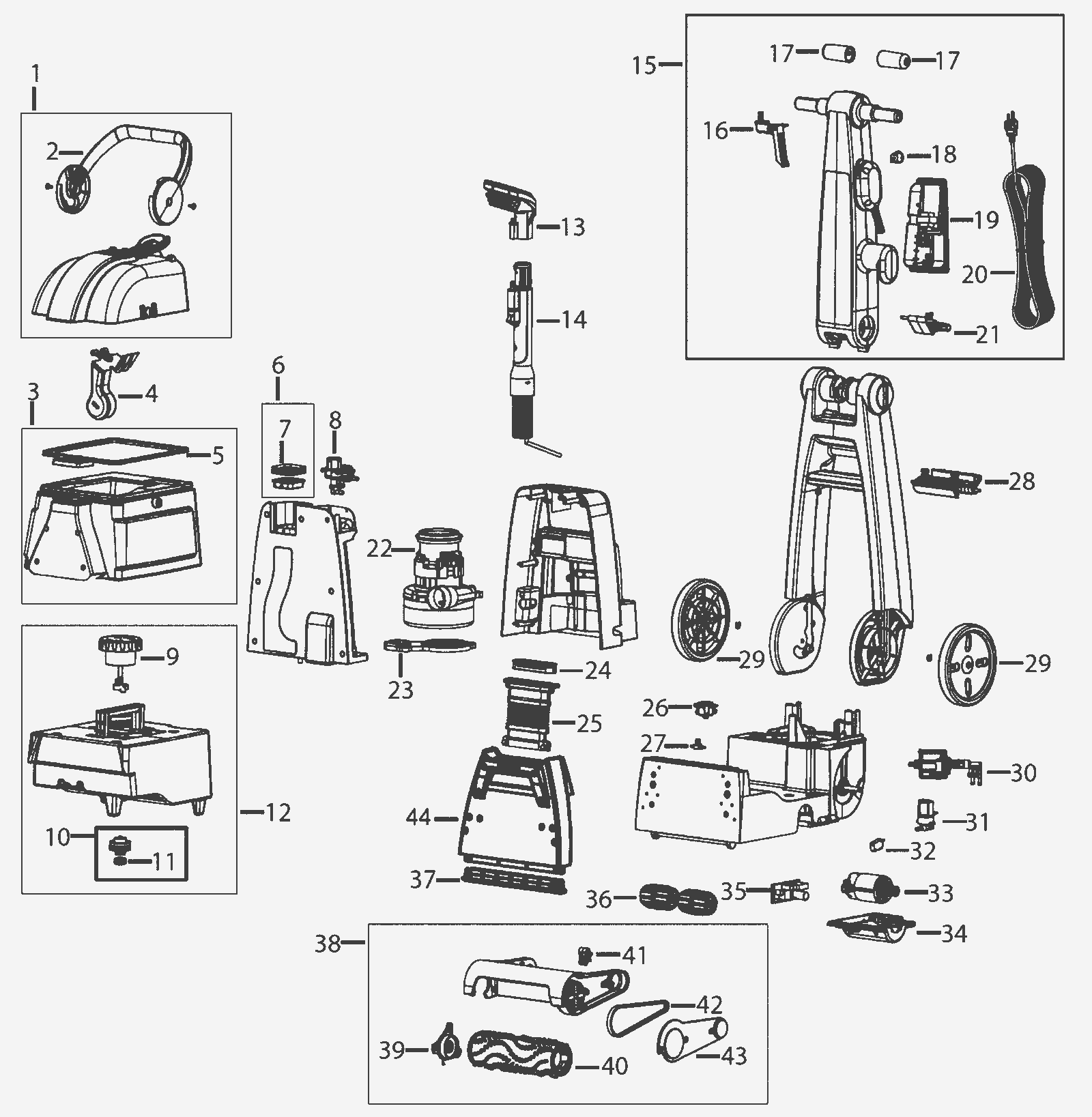

Entire Assembly

#PartDescription ReqNotesAvailability
1a 194-0177 Water separator assembly 1 (includes item 2)
1b 194-0177 Water separator assembly 1 (includes item 2)
2 194-0186 Handle assembly 1
3a 194-0175 Dirt tank assembly (green) 1 (includes 5)
3b 194-0187 Dirty tank assembly (purple) 1 (includes 5)
4 194-0188 Float 1
5 194-0172 Gasket 1
6 194-0173 Filter assembly 1 (includes 7)
7 194-0189 Vacuum motor duct gasket 1
8 194-0171 Flow indicator 1
9 194-0190 Clean tank cap assembly 1
10 194-0174 Cap and insert 1 (includes 11)
11 194-0192 Auto load gasket 1
12a 194-0191 Clean tank assembly 1 (includes 9-11)
12b 194-0193 Clean tank assembly (purple) 1 (includes 9-11)
13 194-0181 6 inch upholstery tool 1
14 194-0194 Hose assembly with 6 inch tool 1
15a 194-0195 Handle assembly with hour meter (green) 1 (includes 16-21)
15b 194-0196 Handle assembly with hour meter (purple) 1
16 194-0197 Spray trigger 1
17 194-0198 Handle grip assembly 2
18 194-0199 On/off switch 1
19 194-0200 Hour meter 1
20 194-0201 25 foot yellow cord 1
21a 194-0202 Upper handle (green) 1
21b 194-0204 Upper handle (purple) 1
22 194-0203 Vacuum motor 1
23 194-0205 Motor mount 1
24 194-0206 Nozzle gasket 1
25 194-0207 Nozzle assembly 1
26 194-8988 Strainer 1
27 194-0208 Spray tip with screw 1
28a 194-0209 Lower handle detent (green) 1
28b 194-0210 Lower handle detent (purple) 2
29 194-0211 Wheel assembly with e-clip 1
30 194-0183 Pump assembly 1
31 194-0212 Solenoid valve 1
32 194-0213 Micro switch 1
33 194-0214 Foot motor 1
34 194-0215 Brush motor cover 1
35 194-0216 Foot motor circuit board 1
36 194-0217 Base roller 1
37 194-0218 Nozzle assembly 1
38 194-0219 Brush carriage 1 (includes 39-43)
39 194-0220 Brush end cap 1
40 194-0221 Screw 1
41 194-0222 Brush carriage clip 1
42 194-0223 Belt 1
43 194-0224 Brush carriage plate assembly 1
44 194-0225 Nozzle body 1
N/S 194-0226 3 foot tube 1
N/S 194-0227 Screw package 1
N/S 194-9017 Pigtail cord 1
