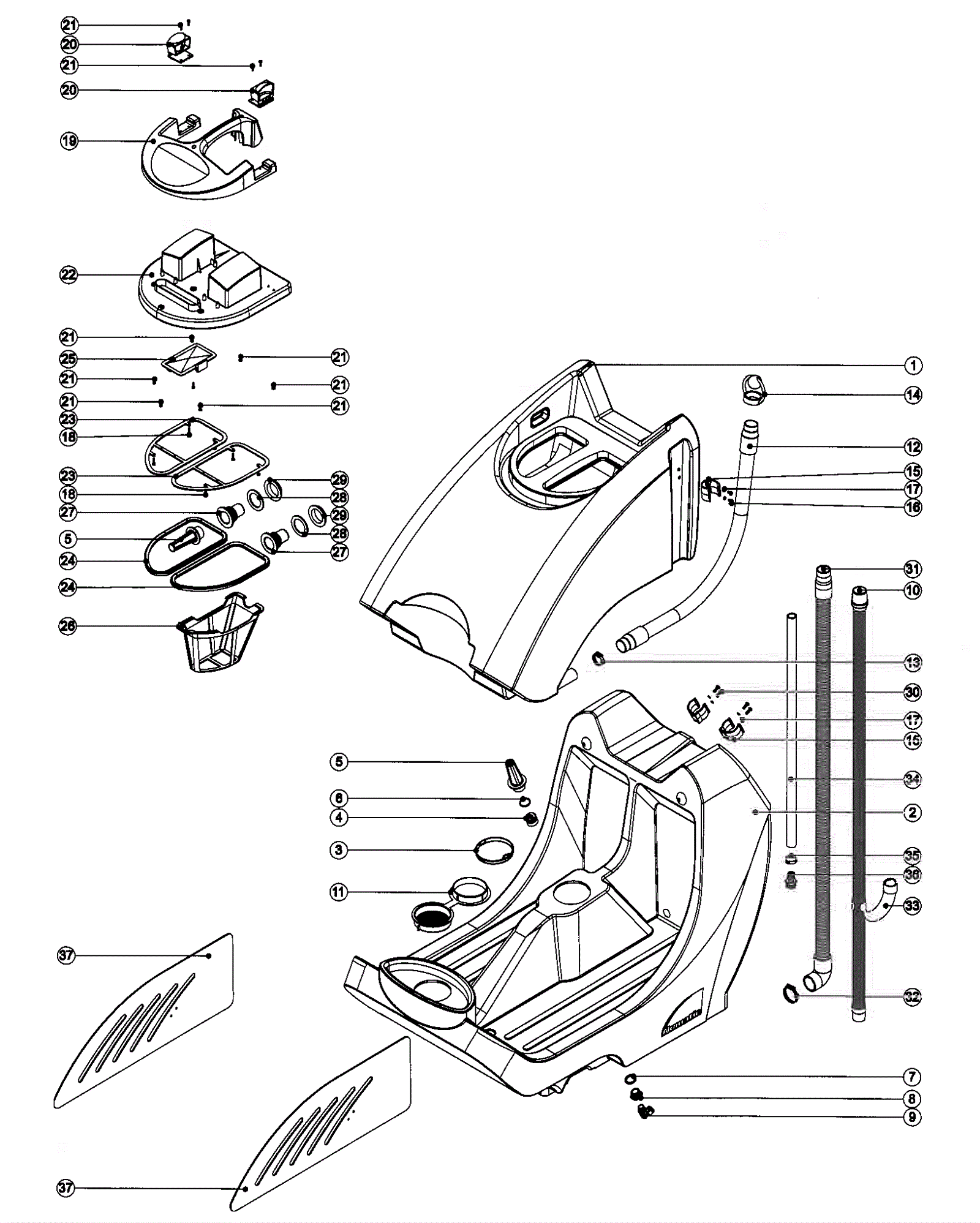

TTB6652 Tank, Separator, and Hose Assembly

#PartDescriptionPriceReqNotesAvailability
2 193-1958 Top tank molding (blue) $953.99 usually ships 16-21 days
3 193-0288 Plug $8.46 usually ships 16-21 days
4 220-4102 Filter connector $63.80 usually ships 16-21 days
5 220-0155 Barrel filter $63.35 usually ships 16-21 days
6 220-4103 O-ring $10.20 usually ships 16-21 days
7 193-1960 Sealing gasket $10.34 usually ships 16-21 days
8 193-1200 Tap connector $55.08 usually ships 16-21 days
9 193-1201 Swivel elbow $27.41 usually ships 16-21 days
10 193-1961 1400mm dump hose $126.36 usually ships 16-21 days
11 193-1962 Filter cap (OBSOLETE) $74.91 usually ships 16-21 days
12 193-1963 Hose assembly $180.57 usually ships 16-21 days
13 193-1964 Clip $39.38 usually ships 16-21 days
14 193-1965 Hose cap $30.99 usually ships 16-21 days
16 193-1967 Screw $3.32 usually ships 16-21 days
17 193-1803 Washer $3.07 usually ships 16-21 days
18 193-1968 Screw $3.41 usually ships 16-21 days
19 193-1969 Separator top $123.40 usually ships 16-21 days
20 193-1970 Clip molding $6.81 usually ships 16-21 days
22 193-1972 Separator molding $112.71 usually ships 16-21 days
23 193-1973 Gasket support ring $23.86 usually ships 16-21 days
24 193-1974 Sealing gasket $23.76 usually ships 16-21 days
25 193-1975 Float molding $3.29 usually ships 16-21 days
27 193-1977 Drain hose connector $14.80 usually ships 16-21 days
28 193-1978 Washer $4.40 usually ships 16-21 days
29 193-1979 Nut $5.50 usually ships 16-21 days
30 193-1862 Screw $4.09 usually ships 16-21 days
32 193-1112 Hose clamp stainless steel $14.09 usually ships 16-21 days
