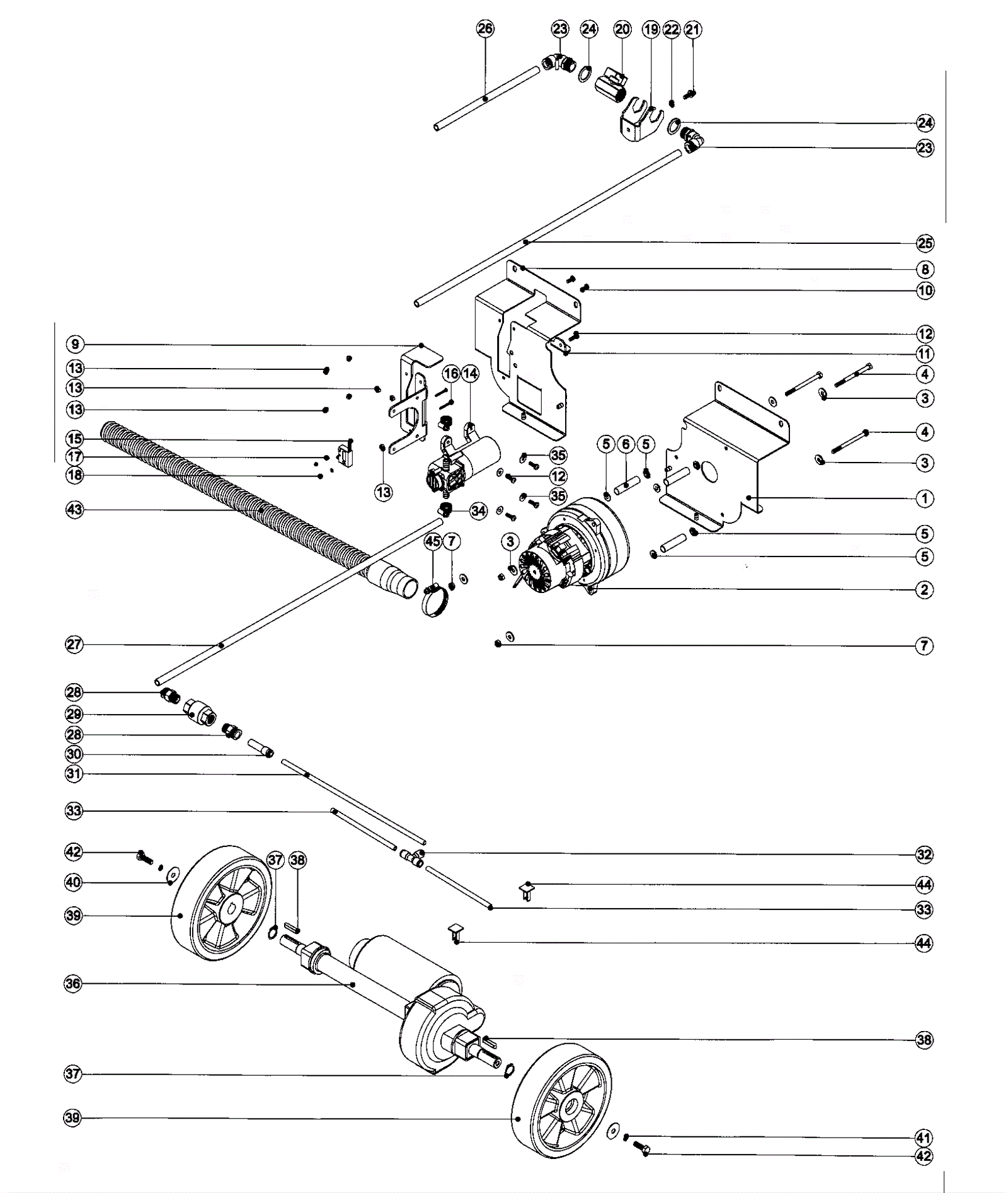

TTB6652 Vacuum and Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 193-1898 Motor mounting plate Call for price usually ships 7-21 days
2 193-1899 2 stage vacuum motor assembly $552.90 usually ships 7-21 days
3 193-1102 Washer M6 form g steel $2.66 usually ships 7-21 days
4 193-1340 Bolt hex head $2.71 usually ships 7-21 days
5 193-1880 Nylon insulation sleeve Call for price usually ships 7-21 days
6 193-1890 Spacer $22.42 usually ships 7-21 days
7 193-1738 Nylon insert nut $3.96 usually ships 7-21 days
8 193-1900 Pedal back plate Call for price usually ships 7-21 days
9 193-1901 Pedal latch plate Call for price usually ships 7-21 days
10 193-1794 Screw $3.19 usually ships 7-21 days
11 193-1902 Pedal safety latch Call for price usually ships 7-21 days
12 193-1862 Screw $3.54 usually ships 7-21 days
13 193-1022 Nut M5 nyloc stainless steel $3.89 usually ships 7-21 days
14 193-1903 24v pump assembly $460.36 usually ships 7-21 days
15 193-1904 Sealed microswitch $77.52 usually ships 7-21 days
16 193-1905 Screw $3.87 usually ships 7-21 days
17 193-1906 Washer $2.85 usually ships 7-21 days
18 193-1774 Nylon insert nut $2.66 usually ships 7-21 days
19 193-1907 Tap bracket Call for price usually ships 7-21 days
20 193-1908 Ball valve $218.01 usually ships 7-21 days
21 193-1256 Screw $3.38 usually ships 7-21 days
22 193-1807 Washer $2.75 usually ships 7-21 days
23 193-1909 Elbow $35.39 usually ships 7-21 days
24 193-1910 Washer Call for price usually ships 7-21 days
25 193-1911 650mm tube $13.26 usually ships 7-21 days
26 193-1912 250mm poly tube $13.26 usually ships 7-21 days
27 193-1913 700mm tube $13.26 usually ships 7-21 days
28 193-1914 Male connector $20.02 usually ships 7-21 days
29 193-1915 Valve kit $17.31 usually ships 7-21 days
30 193-1916 Water valve $20.99 usually ships 7-21 days
31 193-1917 350mm poly tube $13.26 usually ships 7-21 days
32 193-1918 8mm equal tee $44.00 usually ships 7-21 days
33 193-1919 8mm polyurathane tube $10.88 usually ships 7-21 days
34 193-1920 Polyurethane Call for price usually ships 7-21 days
36 193-1921 Traction motor $1,828.95 usually ships 7-21 days
37 193-1922 19mm heavy duty circlip $2.92 usually ships 7-21 days
38 193-1923 Key way $3.27 usually ships 7-21 days
39 193-1924 Wheel 200mm x 50mm $251.69 usually ships 7-21 days
40 193-1925 Washer $3.27 usually ships 7-21 days
41 193-1853 Steel washer $3.27 usually ships 7-21 days
42 193-1851 Steel bolt $3.27 usually ships 7-21 days
43 193-1926 Hose assembly $174.25 usually ships 7-21 days
44 193-1842 Clip $5.58 usually ships 7-21 days
