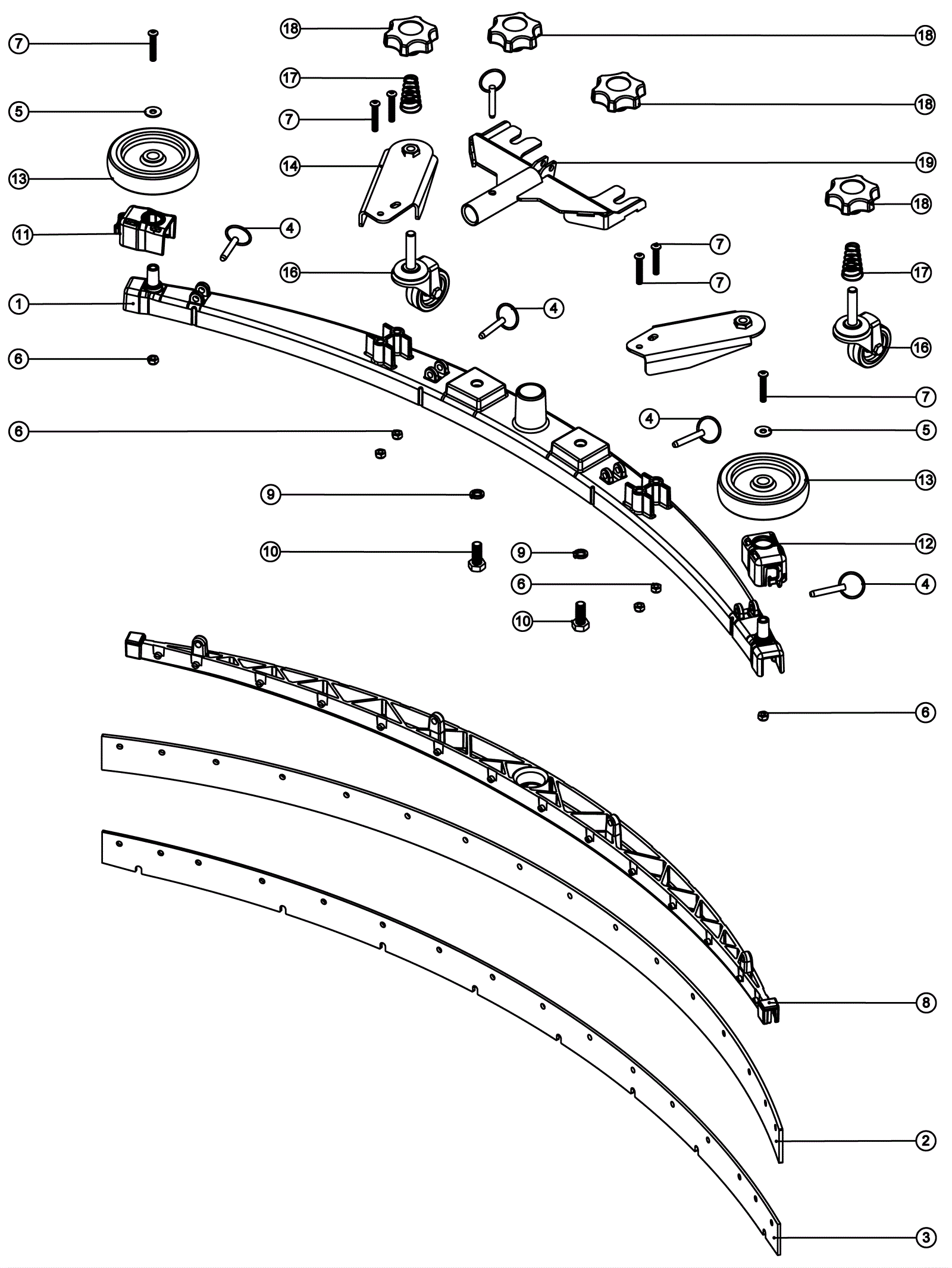

TTV678 850mm Squeegee Assembly Aluminum Floor Tool From SN 1314 - SN 1812

#PartDescriptionPriceReqNotesAvailability
1 193-1599 850mm aluminum squeegee casting $161.71 usually ships 16-24 days
2 193-1603 Squeegee blade kit 850mm polyurethane (green) $154.89 usually ships 16-24 days
3 193-1603 Squeegee blade kit 850mm polyurethane (green) $154.89 usually ships 16-24 days
4 193-1468 Detent pins $34.08 usually ships 16-24 days
5 220-4090 Washer $2.93 usually ships 16-24 days
6 193-0139 Nut M6 nylon insert stainless steel $3.96 ships same day
7 999-1953 Screw M6-1 x 35mm socket stainless steel $2.07 ships same day
8 193-1598 850mm blade holder $42.41 (sloping profile) (32mm & 38mm hose fitting) usually ships 16-24 days
9 193-1604 Washer M10 single coil stainless steel $3.27 usually ships 16-24 days
10 193-1479 Screw M10 x 25mm hex head stainless steel $2.85 usually ships 16-24 days
11 193-1579 Left hand clip $7.11 usually ships 16-24 days
12 193-1578 Right hand clip $7.11 usually ships 16-24 days
13 193-1580 4 inch wheel $23.56 usually ships 16-24 days
14 193-1581 Left hand caster plate weldment assembly Call for price usually ships 16-24 days
15 193-1582 Right hand caster plate weldment assembly Call for price usually ships 16-24 days
16 193-1584 50mm tyred swivel caster (grey) $11.89 usually ships 16-24 days
17 193-1583 Conical spring $12.66 usually ships 16-24 days
18 193-1577 Lobe knob $6.91 usually ships 16-24 days
19a 220-0389 Bracket $118.84 usually ships 16-24 days
19b 193-1467 Welded tube/plate assembly $152.98 (TTV678 and TRO650 only) usually ships 16-24 days
