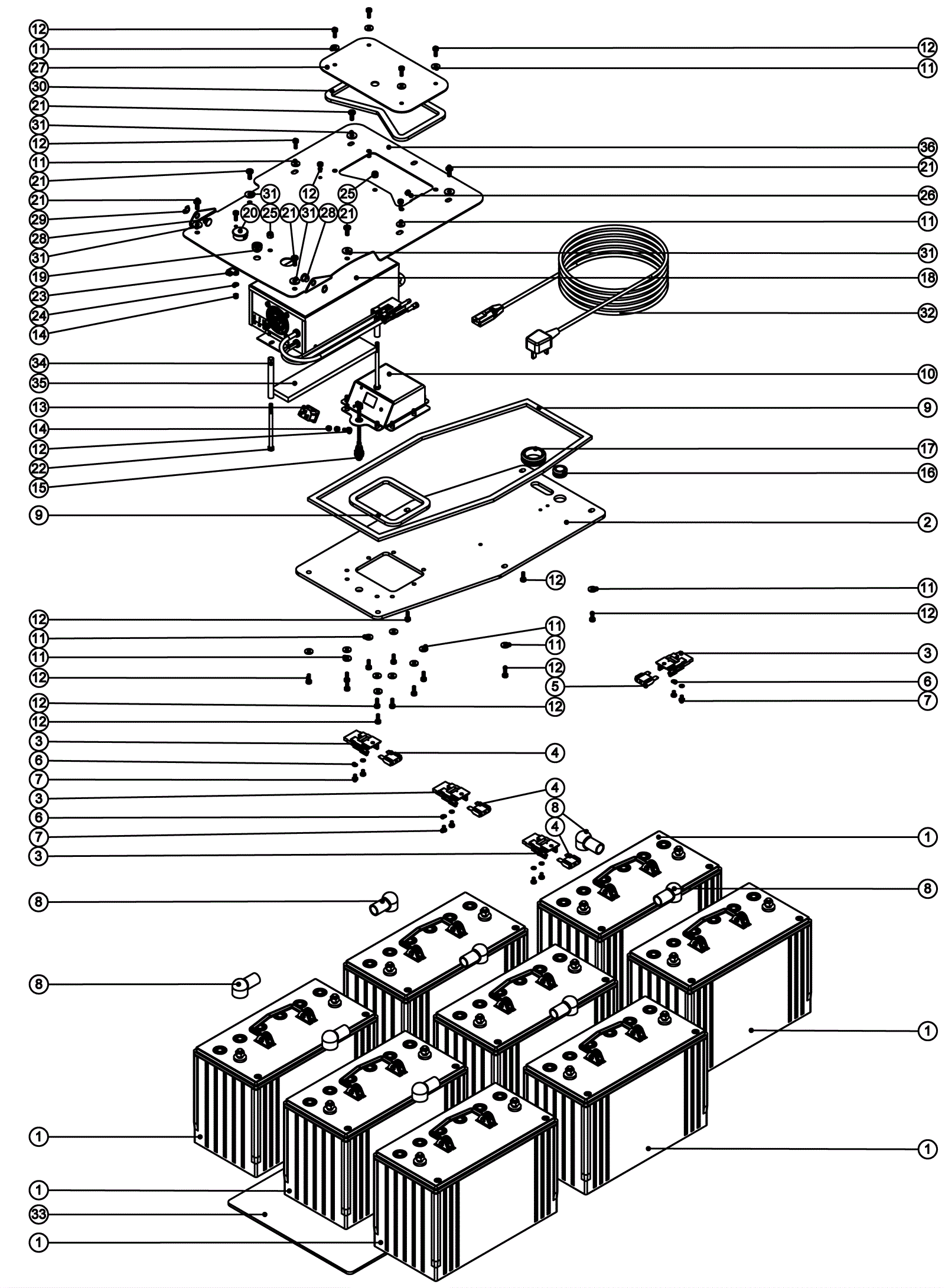

TTV678 Vario Charger/Charger Plate/Batteries From SN 0902 - SN 1412

#PartDescriptionPriceReqNotesAvailability
1 162-6022 12V 102Ah gel battery (SNSR) $793.65 (after SN 1002) ships same day
2 193-1382 Plastic cover plate $59.54 usually ships 16-24 days
3 220-0335 Fuse holder $27.26 usually ships 16-24 days
4a 220-0627 40amp fuse $33.96 (6 battery machines only) usually ships 16-24 days
4b 193-1383 30amp maxi fuse $28.55 (8 battery machines only) usually ships 16-24 days
5 193-1383 30amp maxi fuse $28.55 (8 battery machines only) usually ships 16-24 days
6 220-4166 Shakeproof washer $2.66 usually ships 16-24 days
7 193-1384 Screw M5 x 8mm pozi pan head $2.96 usually ships 16-24 days
8 193-1385 PVC terminal cap (red) $4.85 usually ships 16-24 days
9 193-1386 Inseal roll $155.90 usually ships 16-24 days
10 193-1387 Nutserted charging box $84.51 usually ships 16-24 days
11 220-4157 Washer $2.66 usually ships 16-24 days
12 220-0115 Screw $2.66 usually ships 1-5 days
13 193-1389 Inlet socket $45.88 usually ships 16-24 days
14 193-1045 Nut M5 nylon insert $2.66 usually ships 16-24 days
15 193-1402 120V neon indicator (red) $30.33 usually ships 16-24 days
16 193-1391 Panel grommet 20 x 6mm $9.64 usually ships 16-24 days
17 193-1392 Panel grommet 38 x 6mm $12.97 usually ships 16-24 days
18 193-1394 115V mentzer charger $1,885.14 usually ships 16-24 days
19 193-1395 IP66/67 grommet $5.83 usually ships 16-24 days
20 193-1396 Window plug $17.99 usually ships 16-24 days
21 193-1220 Screw pan head $4.85 usually ships 16-24 days
22 220-0167 Screw $6.62 (after SN 0906) usually ships 1-5 days
23 193-1397 P clip $3.89 usually ships 16-24 days
24 220-4131 Washer $2.66 usually ships 16-24 days
25 220-0170 Nylon nut $2.66 usually ships 1-5 days
26 220-4162 Screw $2.66 usually ships 16-24 days
27a 193-1398 Charger access panel Call for price (before SN 1017, and after SN 1117) usually ships 16-24 days
27b 193-1405 120V charger access panel $68.84 (SN 1017-1116) (120V machines only) usually ships 16-24 days
28 193-1399 Pivot bush $23.69 usually ships 16-24 days
29 193-1219 Circlip $4.02 usually ships 16-24 days
30 193-1386 Inseal roll $155.90 usually ships 16-24 days
31 220-0168 Washer $2.66 usually ships 1-5 days
32 193-1400 Charging lead $64.37 usually ships 16-24 days
33 193-1401 Rubber mat Call for price usually ships 16-24 days
34 193-1403 Wall tube stainless steel Call for price (after SN 0906) usually ships 16-24 days
35 193-1404 Battery plate pad $22.78 (after SN 0906) usually ships 16-24 days
36 193-1393 Nutserted charger plate Call for price (after SN 1002) usually ships 16-24 days
N/S 193-1406 Screw M4 x 16mm pozi pan $2.68 usually ships 16-24 days
N/S 193-1407 Surge arrestor $141.61 usually ships 16-24 days
