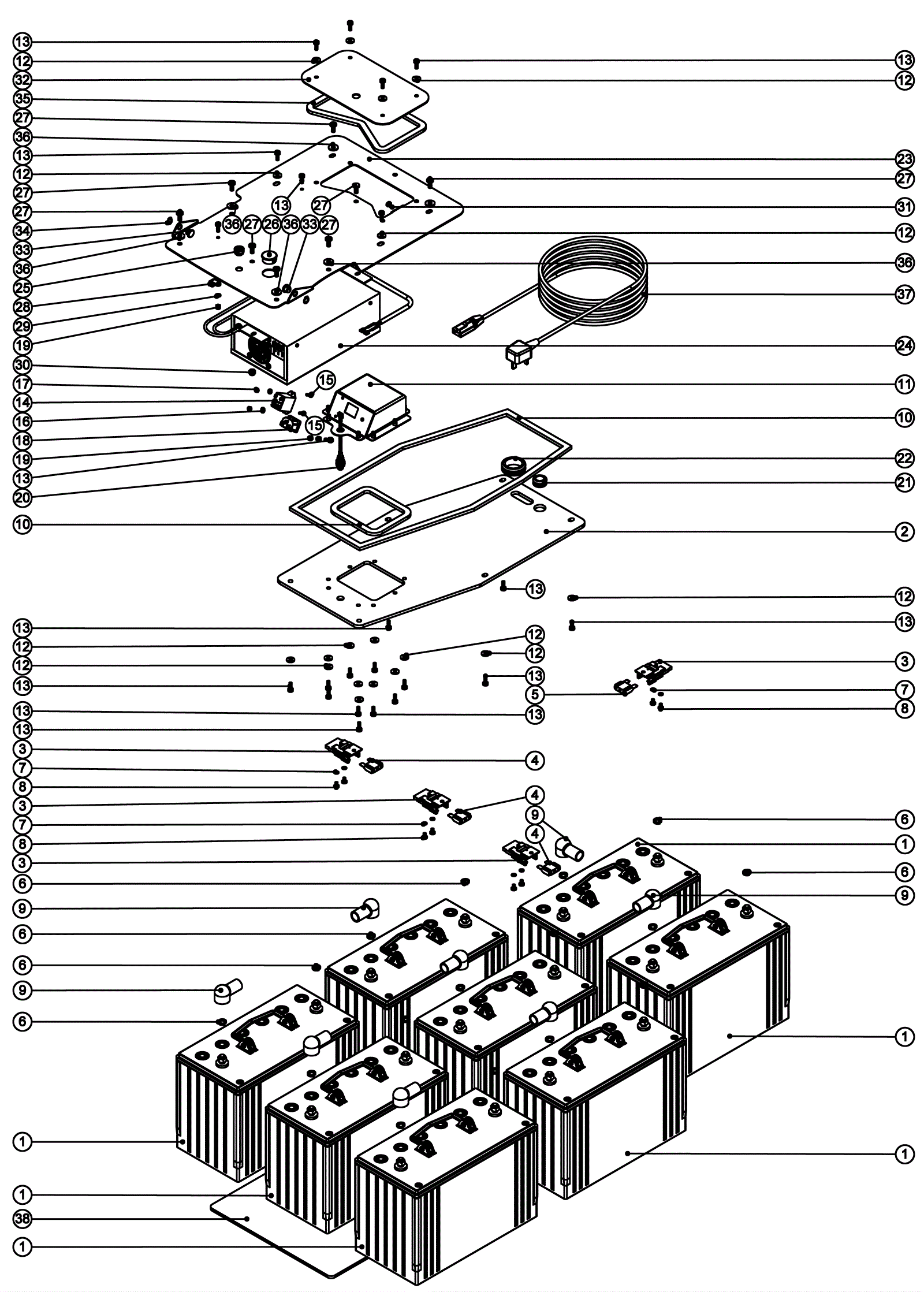

TTV678 Vario Charger/Charger Plate/Batteries Before SN 0902

#PartDescriptionPriceReqNotesAvailability
1 162-6022 12V 102Ah gel battery (SNSR) $793.65 (before SN 1003) ships same day
2 193-1382 Plastic cover plate $59.54 usually ships 16-24 days
3 220-0335 Fuse holder $27.26 usually ships 16-24 days
4a 220-0627 40amp fuse $33.96 (6 battery machines only) usually ships 16-24 days
4b 193-1383 30amp maxi fuse $28.55 (8 battery machines only) usually ships 16-24 days
5 193-1383 30amp maxi fuse $28.55 (8 battery machines only) usually ships 16-24 days
6 193-1257 Washer $3.27 (before SN 1003) usually ships 16-24 days
7 220-4166 Shakeproof washer $2.66 usually ships 16-24 days
8 193-1384 Screw M5 x 8mm pozi pan head $2.96 usually ships 16-24 days
9 193-1385 PVC terminal cap (red) $4.85 usually ships 16-24 days
10 193-1386 Inseal roll $155.90 usually ships 16-24 days
11 193-1387 Nutserted charging box $84.51 usually ships 16-24 days
12 193-1026 Washer M5 steel $2.66 usually ships 16-24 days
13 220-0115 Screw $2.66 usually ships 1-5 days
14 193-1388 120V relay $41.79 usually ships 16-24 days
15 193-0052 Screw M4 x 12mm pozi pan $2.85 usually ships 16-24 days
16 193-1215 Flat washer $3.85 usually ships 16-24 days
17 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 ships same day
18 193-1389 Inlet socket $45.88 usually ships 16-24 days
19 193-1045 Nut M5 nylon insert $2.66 usually ships 16-24 days
20 193-1390 120V neon indicator (red) $117.71 usually ships 16-24 days
21 193-1391 Panel grommet 20 x 6mm $9.64 usually ships 16-24 days
22 193-1392 Panel grommet 38 x 6mm $12.97 usually ships 16-24 days
23 193-1393 Nutserted charger plate Call for price (before SN 1003) usually ships 16-24 days
24 193-1394 115V mentzer charger $1,885.14 usually ships 16-24 days
25 193-1395 IP66/67 grommet $5.83 usually ships 16-24 days
26 193-1396 Window plug $17.99 usually ships 16-24 days
27 193-1220 Screw pan head $4.85 usually ships 16-24 days
28 193-1397 P clip $3.89 usually ships 16-24 days
29 193-1021 Washer M5 form a steel $2.66 usually ships 16-24 days
30 193-1009 Nut M6 nylon insert $2.66 usually ships 16-24 days
31 193-1090 Scew M5 x 10mm sems $2.66 usually ships 16-24 days
32 193-1398 Charger access panel Call for price usually ships 16-24 days
33 193-1399 Pivot bush $23.69 usually ships 16-24 days
34 193-1219 Circlip $4.02 usually ships 16-24 days
35 193-1386 Inseal roll $155.90 usually ships 16-24 days
36 193-1102 Washer M6 form g steel $2.66 usually ships 16-24 days
37 193-1400 Charging lead $64.37 usually ships 16-24 days
38 193-1401 Rubber mat Call for price usually ships 16-24 days
