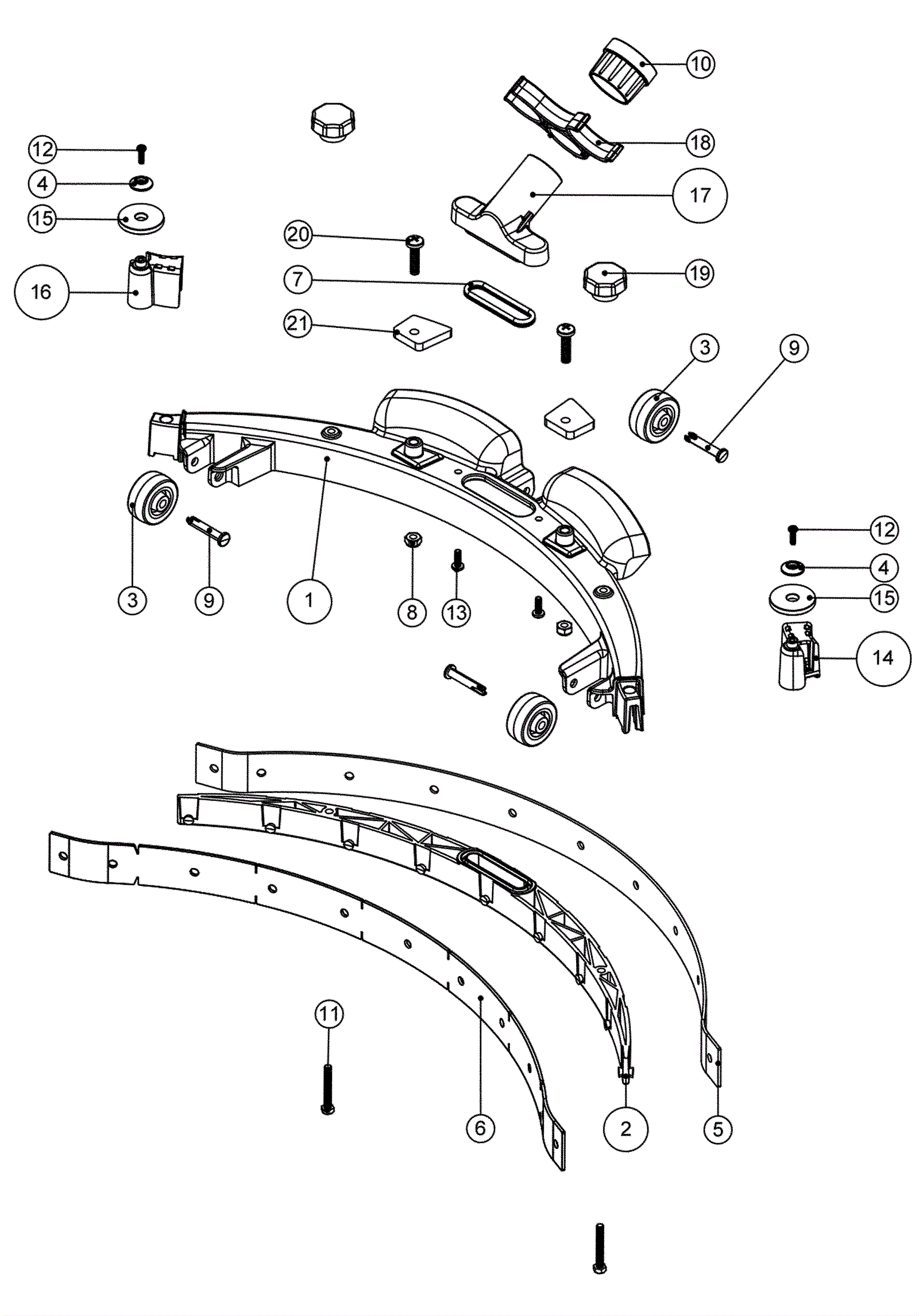

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
193-3114
|
Squeegee outer die casting (silver) |
1 |
(911916 only) |
|
1b |
193-3115
|
Outer squeegee moulding |
1 |
(918093 only) |
|
1c |
193-2163
|
Outer squeegee die casting |
1 |
|
|
2a |
193-2164
|
Inner squeegee moulding for die casting |
1 |
(911916 only) |
|
2b |
193-3116
|
Inner squeegee moulding |
1 |
(918093 only) |
|
3 |
193-2165
|
Squeegee wheel |
3 |
|
|
4 |
193-2166
|
Finishing washer (black) |
2 |
|
|
5 |
193-9034
|
Blade set |
1 |
|
|
6 |
193-9034
|
Blade set |
1 |
|
|
7 |
193-2169
|
Squeegee seal extrusion |
1 |
|
|
8 |
193-1738
|
Nylon insert nut |
2 |
|
|
9 |
193-2171
|
Snap lock pin |
3 |
|
|
10 |
193-2172
|
Hose cuff |
1 |
|
|
11 |
193-1374
|
Screw M5 x 35mm hex head |
2 |
|
|
12 |
193-2173
|
Screw 3.5 x 12mm |
2 |
|
|
13 |
193-2007
|
Screw 8 x 1/2 inch stainless steel |
2 |
|
|
14a |
193-2174
|
Left hand floor tool clip |
1 |
(911916 only) |
|
14b |
193-3117
|
Left hand floor tool clip - NUC420 (black) |
1 |
(918093 only) |
|
15 |
193-2069
|
Buffer wheel |
2 |
|
|
16a |
193-2175
|
Right hand floor tool clip |
1 |
(911916 only) |
|
16b |
193-3118
|
Right hand floor tool clip - NUC420 |
1 |
(918093 only) |
|
17a |
193-2176
|
Hose trap inlet |
1 |
(911916 only) |
|
17b |
193-3119
|
Hose trap inlet |
1 |
(918093 only) |
|
18 |
193-2177
|
Hose trap clip |
1 |
|
|
19 |
193-2178
|
Squeegee knob |
2 |
|
|
20a |
193-1375
|
Screw M6 x 25mm pozi pan head (OBSOLETE) |
2 |
|
|
20b |
193-2170
|
Bolt M6 x 20mm |
2 |
|
|
21 |
193-3120
|
Squeegee snap plate |
2 |
|
|
N/S |
193-2145
|
Washer |
2 |
|
|
N/S |
193-9098
|
Floor tool trap molding |
1 |
(includes 7 and 20a) |
|
