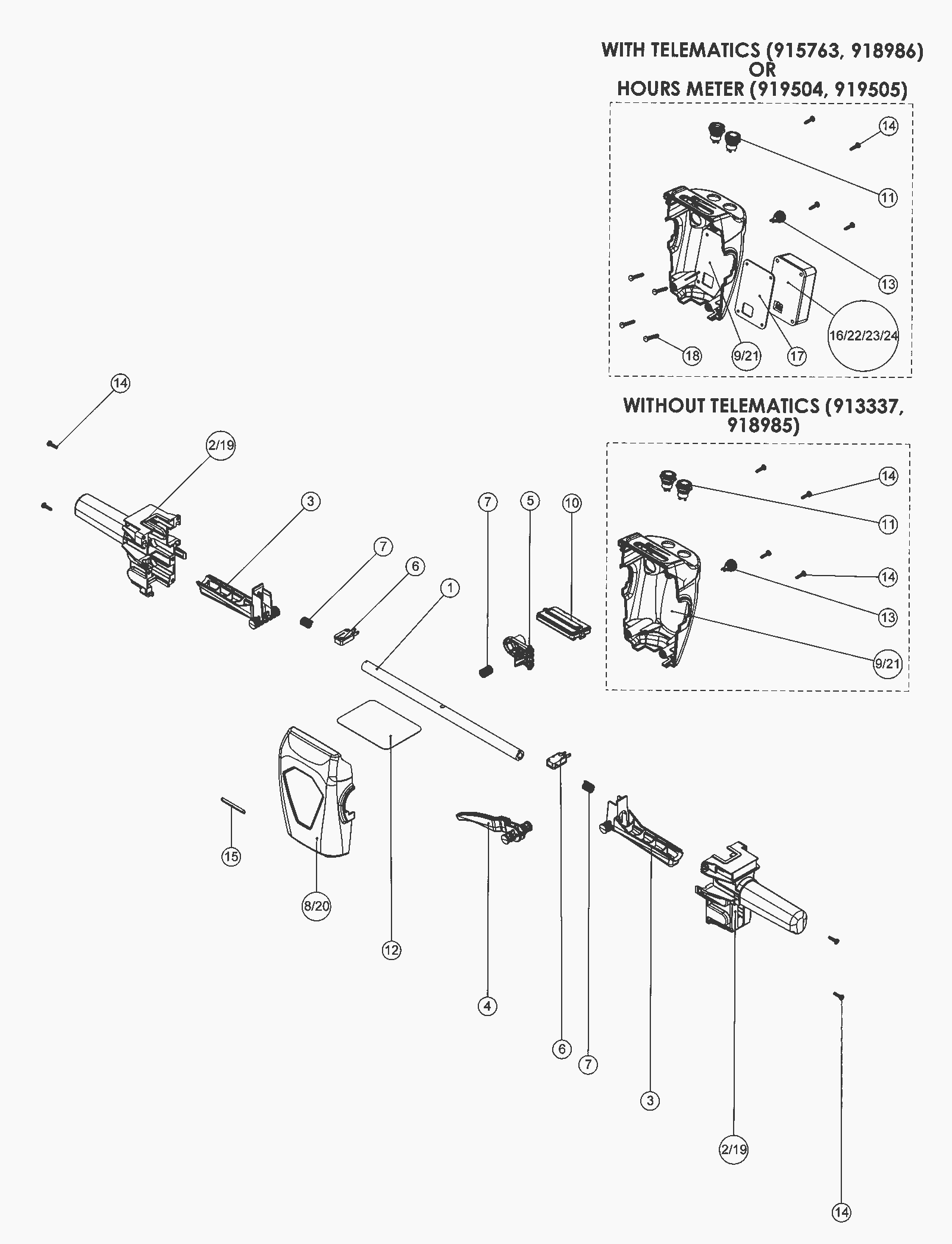

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
193-2120
|
Handle cross tube |
1 |
|
|
2 |
193-2121
|
Handle grip |
2 |
|
|
3 |
193-2122
|
Handle trigger |
2 |
|
|
4 |
193-2123
|
Handle release lever |
1 |
|
|
5 |
193-2124
|
Handle lock button (red) |
1 |
|
|
6 |
193-1787
|
Switch |
2 |
|
|
7 |
193-1753
|
Trigger compression spring |
3 |
|
|
8 |
193-2125
|
Handle front cover moulding |
1 |
|
|
9a |
193-2126
|
Handle rear cover moulding |
1 |
(913337 Only) |
|
9b |
193-9132
|
Rear cover moulding |
1 |
(Telematics-915763 only) |
|
10 |
193-2127
|
Handle PC8 enclosure |
1 |
|
|
11 |
193-2128
|
Illuminated toggle switch |
2 |
|
|
12 |
193-2129
|
Handle wiring protector |
1 |
|
|
13 |
193-9133
|
Push button switch (yellow) |
1 |
|
|
14 |
193-1023
|
Screw #8 x 5/8 plastite stainless steel |
8 |
(Torque to 2.6Nm) |
|
15 |
193-9134
|
Domed protective strip |
1 |
|
|
16 |
193-9135
|
Telematics module assembly |
1 |
(913337 Only) |
|
17 |
193-9136
|
Adhesive pad |
1 |
(915763 and 918986 Only) |
|
18 |
193-1057
|
Screw #8 x 1 plastite |
4 |
(915763 and 918986 Only) |
|
20 |
193-9138
|
Front handle cover |
1 |
|
|
21a |
193-9139
|
Rear handle cover |
1 |
(918985 Only) |
|
21b |
193-9140
|
Rear handle cover - Telematics |
1 |
(918986 Only) |
|
22 |
193-9141
|
Telematics module assembly (black) |
1 |
(918986 Only) |
|
23 |
193-9142
|
Hour meter (black) |
1 |
(919505 Only) |
|
24 |
193-9143
|
Hour meter (grey) |
1 |
(919504 Only) |
|
