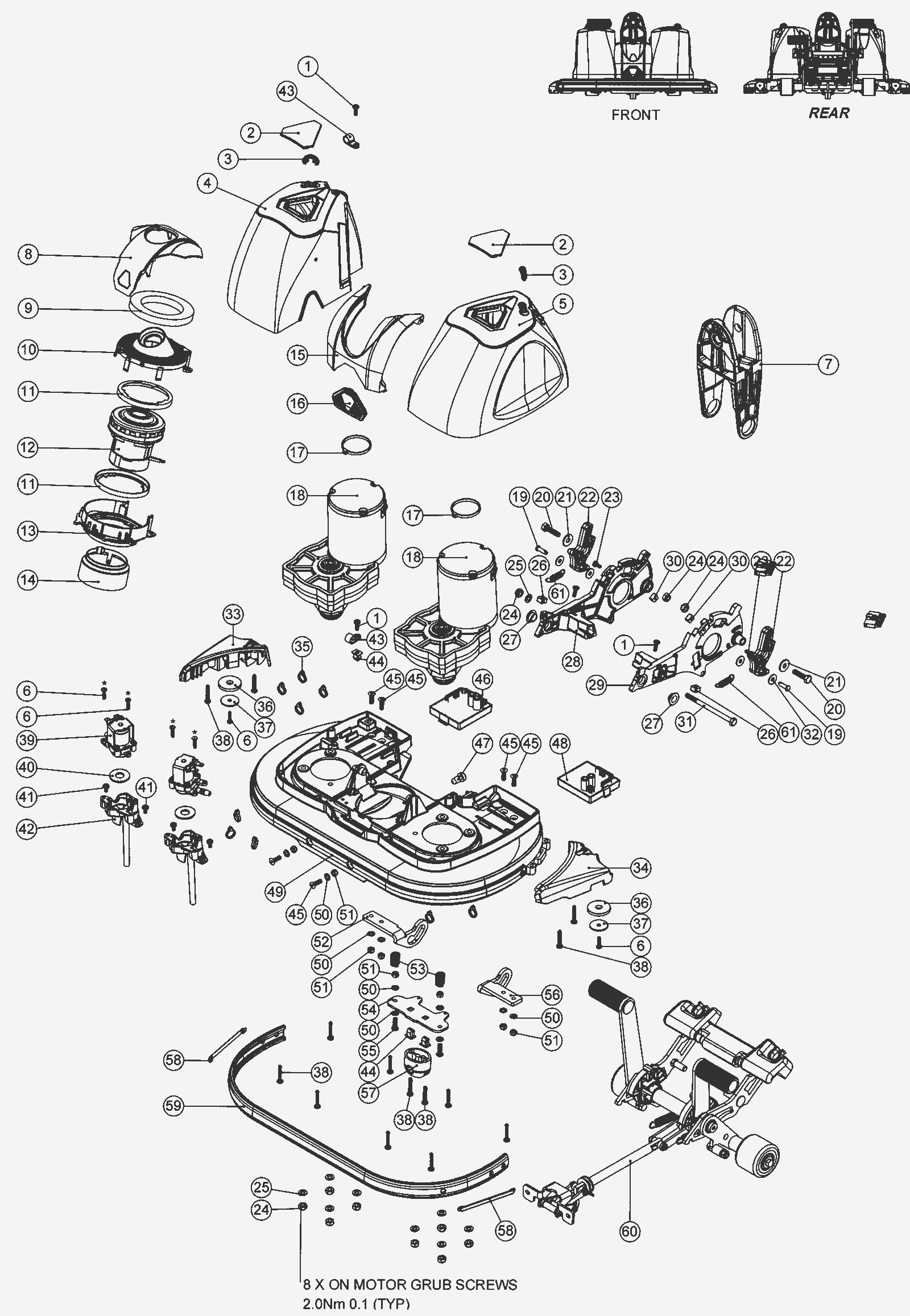

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
193-2007
|
Screw 8 x 1/2 inch stainless steel |
4 |
|
|
2 |
193-2074
|
Vent cap moulding |
2 |
|
|
3 |
193-2075
|
Tube clip |
2 |
|
|
4 |
193-9040
|
Left hand motor cover molding |
1 |
|
|
5 |
193-9041
|
Right hand motor cover molding |
1 |
|
|
6 |
193-9063
|
Screw |
9 |
|
|
7 |
193-2087
|
Yoke |
1 |
|
|
8 |
193-2079
|
Vac motor moulding |
1 |
|
|
9 |
193-2084
|
Pad disc foam |
1 |
|
|
10 |
193-2080
|
Vac motor top |
1 |
|
|
11 |
193-2083
|
Gasket |
2 |
|
|
12a |
193-9013
|
Vacuum motor kit |
1 |
|
|
12b |
193-9155
|
Vacuum motor |
1 |
|
|
13 |
193-2081
|
Vac motor middle casing |
1 |
|
|
14 |
193-2082
|
Vac motor bottom moulding |
1 |
|
|
15 |
193-9016
|
Center cover molding |
1 |
|
|
16 |
193-2076
|
Grill |
1 |
|
|
17 |
193-2088
|
Cable tie |
2 |
|
|
18 |
193-9012
|
Brush motor kit |
2 |
|
|
19 |
193-2105
|
Clevis pin |
2 |
|
|
20 |
193-2104
|
Bolt hex head |
2 |
|
|
21 |
193-2145
|
Washer |
2 |
|
|
22a |
193-2103
|
Latch |
2 |
|
|
22b |
193-2064
|
CSD deck casting |
1 |
|
|
23 |
193-9156
|
Screw |
2 |
|
|
24 |
193-1738
|
Nylon insert nut |
1 |
|
|
25 |
193-0149
|
Washer M6-A stainless steel |
9 |
|
|
26 |
193-2091
|
Screw block |
11 |
|
|
27 |
193-9056
|
Bearing |
1 |
|
|
28a |
193-2085
|
Left and right hand link arm assembly |
1 |
(includes 28 and 29) |
|
28b |
N/A
|
Not available |
1 |
(Left deck link arm casting) |
|
29 |
N/A
|
Not available |
1 |
(Right deck link arm casting) |
|
30 |
193-9157
|
Handle position stop block |
2 |
|
|
31 |
999-1609
|
Bolt M6-1 x 90mm hex head stainless steel |
2 |
|
|
32 |
193-1994
|
Washer M5 stainless steel |
4 |
|
|
33 |
193-2067
|
Left hand deck wing moulding |
1 |
|
|
34 |
193-2066
|
Right hand deck wing moulding |
1 |
|
|
35 |
193-2106
|
Cable tie (white) |
9 |
|
|
36 |
193-2069
|
Buffer wheel |
2 |
|
|
37 |
193-2070
|
Washer |
2 |
|
|
38 |
193-1057
|
Screw #8 x 1 plastite |
12 |
|
|
39 |
193-2098
|
Solenoid valve |
2 |
|
|
40 |
193-2111
|
2mm closed cell disc neoprene |
2 |
|
|
41 |
220-0332
|
Screw M4 x 8mm pozi pan head stainless steel |
4 |
|
|
42 |
193-2099
|
Solenoid connector |
2 |
|
|
43a |
193-2108
|
P clip |
1 |
|
|
43b |
193-2107
|
P clip |
1 |
|
|
44 |
193-2090
|
Grommet nut nylon |
2 |
|
|
45 |
193-9158
|
Screw M5 x 16mm |
6 |
|
|
46 |
193-2077
|
36v left hand bldc motor controller |
1 |
|
|
47 |
193-9159
|
Blind grommet |
1 |
|
|
48 |
193-2078
|
36v right hand bldc motor controller |
1 |
|
|
49 |
193-9160
|
Deck casting |
1 |
|
|
50 |
193-0205
|
Washer M5-A stainless steel |
10 |
|
|
51 |
193-1022
|
Nut M5 nyloc stainless steel |
8 |
|
|
52 |
193-9161
|
Latch plate right hand |
1 |
|
|
53 |
193-1753
|
Trigger compression spring |
2 |
|
|
54 |
193-9162
|
Bearing mounting plate |
1 |
|
|
55 |
193-1876
|
Screw |
2 |
|
|
56 |
193-9163
|
Latch plate left hand |
1 |
|
|
57 |
193-9126
|
Rjump split housing |
1 |
|
|
58 |
193-2109
|
Trim guide moulding |
2 |
|
|
59 |
193-2065
|
Trim extrusion |
1 |
|
|
60a |
193-2101
|
Squeegee lift mechanism assembly (OBSOLETE) |
1 |
(N/A as a kit. Must order 193-3109, 193-3110, 193-3111) |
|
60b |
193-9164
|
Squeegee and lifting mechanism assembly |
1 |
|
|
61 |
193-9165
|
Extension spring |
2 |
|
|
N/S |
193-2068
|
Washer 12mm plastic |
2 |
|
|
N/S |
193-2089
|
Wheel 160mm x 50mm |
1 |
|
|
N/S |
193-2092
|
Left hand arm clip moulding |
1 |
|
|
N/S |
193-2093
|
Right hand arm clip moulding |
1 |
|
|
N/S |
193-2094
|
Reed switch assembly |
1 |
|
|
N/S |
193-2095
|
Reed switch clip |
1 |
|
|
N/S |
193-2096
|
Cable tie |
1 |
|
|
N/S |
193-2097
|
Magnet |
1 |
|
|
N/S |
193-9074
|
Wire clamp molding |
1 |
|
|
N/S |
193-2102
|
Spring |
2 |
|
|
N/S |
193-2110
|
Foot |
1 |
|
|
