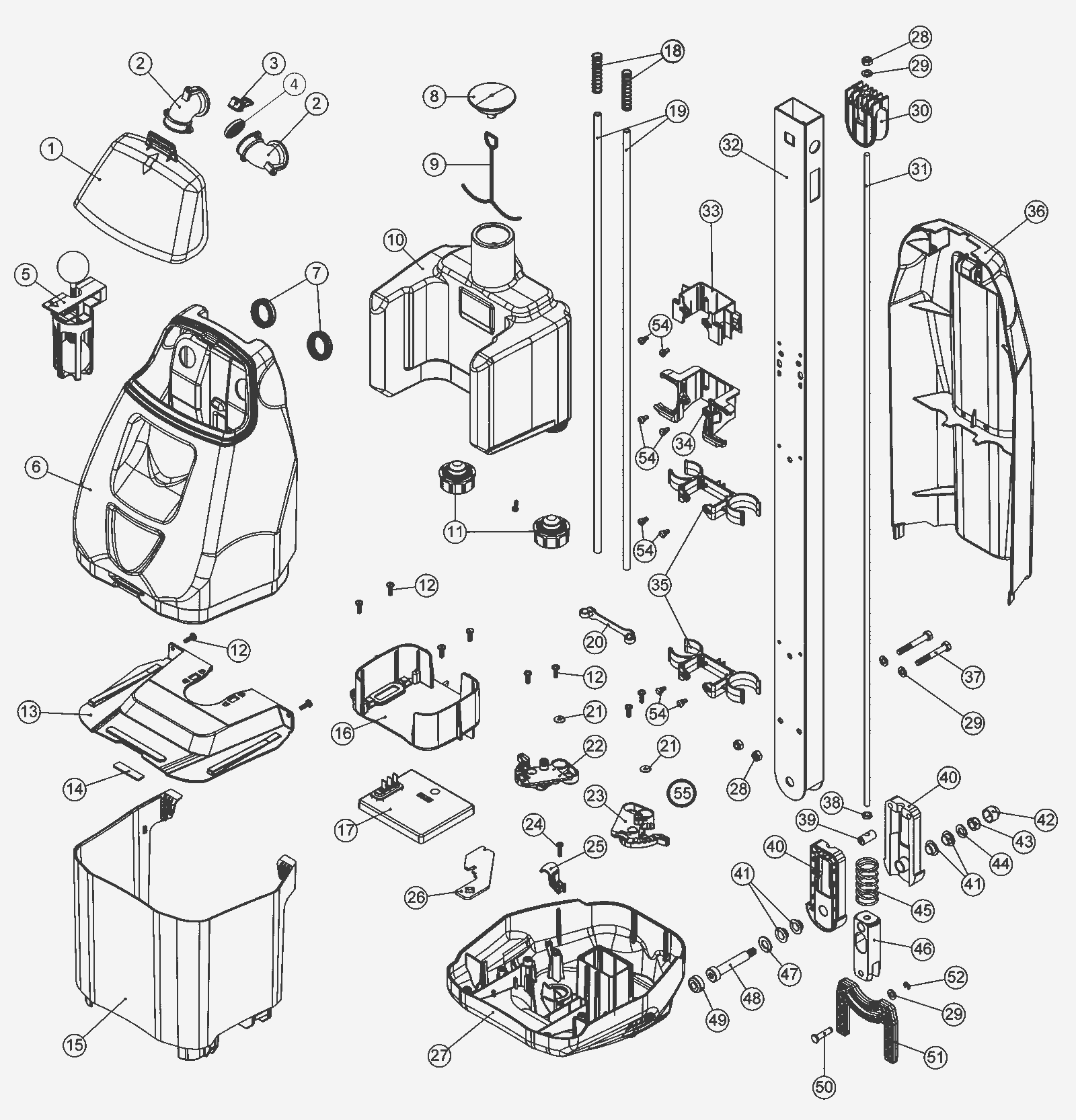

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-2132
|
Separator port molding [440NX] |
1 |
(includes 2-4) |
|
3 |
220-2132
|
Separator port molding [440NX] |
1 |
|
|
4 |
193-9076
|
Port filter disc |
1 |
|
|
5 |
193-9088
|
Ball shut off assembly |
1 |
|
|
6 |
193-9078
|
Recovery tank |
1 |
|
|
7 |
193-9022
|
Gasket seal molding (package of 4) |
1 |
|
|
8 |
193-9070
|
Cap with vent hole molding |
1 |
|
|
9 |
193-9071
|
Tether molding |
1 |
|
|
10 |
193-9080
|
Clean tank blow molding |
1 |
|
|
11 |
193-9091
|
Check valve tank coupling (pkg of 2) |
2 |
|
|
12 |
193-2007
|
Screw 8 x 1/2 inch stainless steel |
10 |
|
|
13 |
193-9083
|
Water tank shelf molding |
1 |
|
|
14 |
193-9087
|
Foam pad |
1 |
|
|
15a |
193-9082
|
Water tank support molding |
1 |
|
|
15b |
193-9144
|
Water tank support molding |
1 |
|
|
16 |
193-9084
|
Battery support molding |
1 |
|
|
17 |
193-9017
|
Battery/control pbc kit |
1 |
|
|
18 |
193-9145
|
Compression spring |
2 |
|
|
19a |
193-9085
|
22 inch clear silicone tube |
2 |
|
|
19b |
193-9146
|
24 inch clear silcone tube |
2 |
|
|
20 |
193-9147
|
Hose retainer |
1 |
|
|
21 |
193-9059
|
Washer |
2 |
|
|
22 |
193-9094
|
Left hand valve assembly |
1 |
|
|
23 |
193-9093
|
Right hand valve assembly |
1 |
|
|
24 |
193-9063
|
Screw |
1 |
|
|
25 |
193-9074
|
Wire clamp molding |
1 |
|
|
26 |
193-9086
|
Retainer plate |
1 |
|
|
27a |
193-9069
|
Handle base section molding |
1 |
|
|
27b |
193-9148
|
Handle base printed white water flow |
1 |
|
|
28 |
193-1738
|
Nylon insert nut |
3 |
|
|
29 |
193-0149
|
Washer M6-A stainless steel |
4 |
|
|
30 |
193-9064
|
Handle release slider |
1 |
|
|
31 |
193-9072
|
Handle locking rod |
1 |
|
|
32 |
193-9092
|
Handle tube (silver) |
1 |
|
|
33a |
193-9066
|
Tank lock molding |
1 |
(includes 54) |
|
33b |
193-9149
|
Wrap-around tank lock housing |
1 |
|
|
34a |
193-9067
|
Hose end mount molding |
1 |
|
|
34b |
193-9150
|
Wrap-around hose end |
1 |
|
|
35a |
193-9068
|
Dual hose clip molding |
2 |
|
|
35b |
193-9151
|
Wrap-around dual hose clip |
2 |
|
|
35c |
193-9166
|
Hose mount clip kit |
1 |
(includes 54) |
|
36 |
193-9089
|
Rear cover assembly |
1 |
|
|
37 |
193-1878
|
Bolt |
2 |
|
|
38 |
193-1745
|
Half nut |
1 |
|
|
39 |
193-9090
|
Cross dowel barrel nut |
1 |
|
|
40 |
193-9061
|
Handle pivot molding (black) |
2 |
|
|
41 |
193-9056
|
Bearing |
4 |
|
|
42 |
193-9058
|
Bolt and nut cap |
1 |
|
|
43 |
193-1255
|
Nut nylon |
1 |
|
|
44 |
193-1889
|
Washer |
1 |
|
|
45 |
193-9062
|
Spring |
1 |
|
|
46 |
193-9065
|
Roll latch |
1 |
|
|
47 |
193-1258
|
Washer |
1 |
|
|
48 |
193-9057
|
Bolt M8 x 10 x 50 hex socket |
1 |
|
|
49 |
220-0966
|
Cover shoulder bolt |
1 |
|
|
50 |
193-9095
|
Clevis pin |
1 |
|
|
51 |
193-9060
|
Pitch latch (black) |
1 |
|
|
52 |
193-9096
|
E-clip |
1 |
|
|
53 |
193-9152
|
Screw 6 x 3/8 |
1 |
|
|
54 |
193-9153
|
Nylon rivet (OBSOLETE) |
8 |
|
|
55 |
193-9154
|
O-ring |
1 |
|
|
N/S |
193-9114
|
Scrub brush nylon (pkg of 2) |
2 |
|
|
