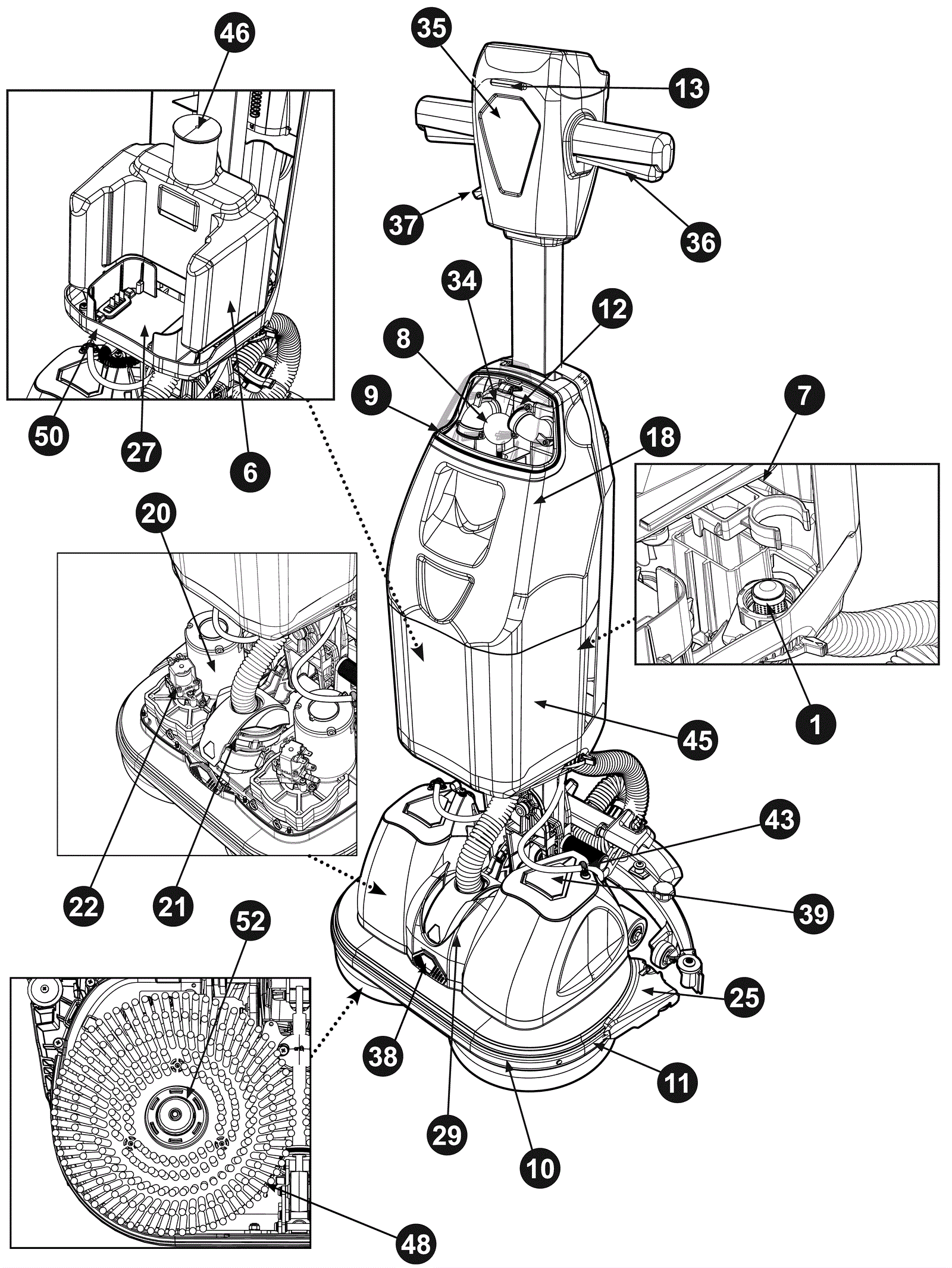

| # | Part | Description |
Req | Notes | Availability |
|---|
6 |
193-9080
|
Clean tank blow molding |
1 |
|
|
7 |
193-9006
|
Dual hose clip |
1 |
|
|
9 |
220-2132
|
Separator port molding [440NX] |
1 |
|
|
10 |
193-9008
|
Deck trim extrusion |
1 |
|
|
11 |
193-9009
|
Trim glides |
2 |
|
|
12 |
193-9010
|
Port filter disc (pkg of 5) |
5 |
|
|
13 |
193-9011
|
Handle protection strip |
2 |
|
|
18 |
193-9078
|
Recovery tank |
1 |
|
|
20 |
193-9012
|
Brush motor kit |
1 |
|
|
21 |
193-9013
|
Vacuum motor kit |
1 |
|
|
22 |
193-9014
|
Water solenoid |
1 |
|
|
25 |
193-9015
|
Deck wing kit |
1 |
|
|
27 |
193-9017
|
Battery/control pbc kit |
1 |
|
|
29 |
193-9016
|
Center cover molding |
1 |
|
|
34 |
193-9022
|
Gasket seal molding (package of 4) |
1 |
|
|
35 |
193-9019
|
Front handle cover |
1 |
|
|
36 |
193-9021
|
Handle grip and trigger |
1 |
|
|
37 |
193-9020
|
Handle adjust and release controls |
1 |
|
|
38 |
193-9018
|
Grill molding |
1 |
|
|
39 |
193-9024
|
Motor vent cover kit |
2 |
|
|
43 |
193-9023
|
Tube clip |
4 |
|
|
45 |
193-9029
|
Water tank support kit |
1 |
|
|
46 |
193-9030
|
Clean water tank cap kit |
1 |
|
|
48 |
193-9031
|
Drive board padlock clip with center molding kit |
1 |
|
|
50 |
193-9032
|
Battery and base support molding kit |
1 |
|
|
52 |
193-9033
|
O-ring kit |
2 |
|
|
N/S |
193-9025
|
Color coding kit (red) |
1 |
|
|
N/S |
193-9026
|
Color coding kit (blue) |
1 |
|
|
N/S |
193-9027
|
Color coding kit (green) |
1 |
|
|
N/S |
193-9028
|
Color coding kit (yellow) |
1 |
|
|
