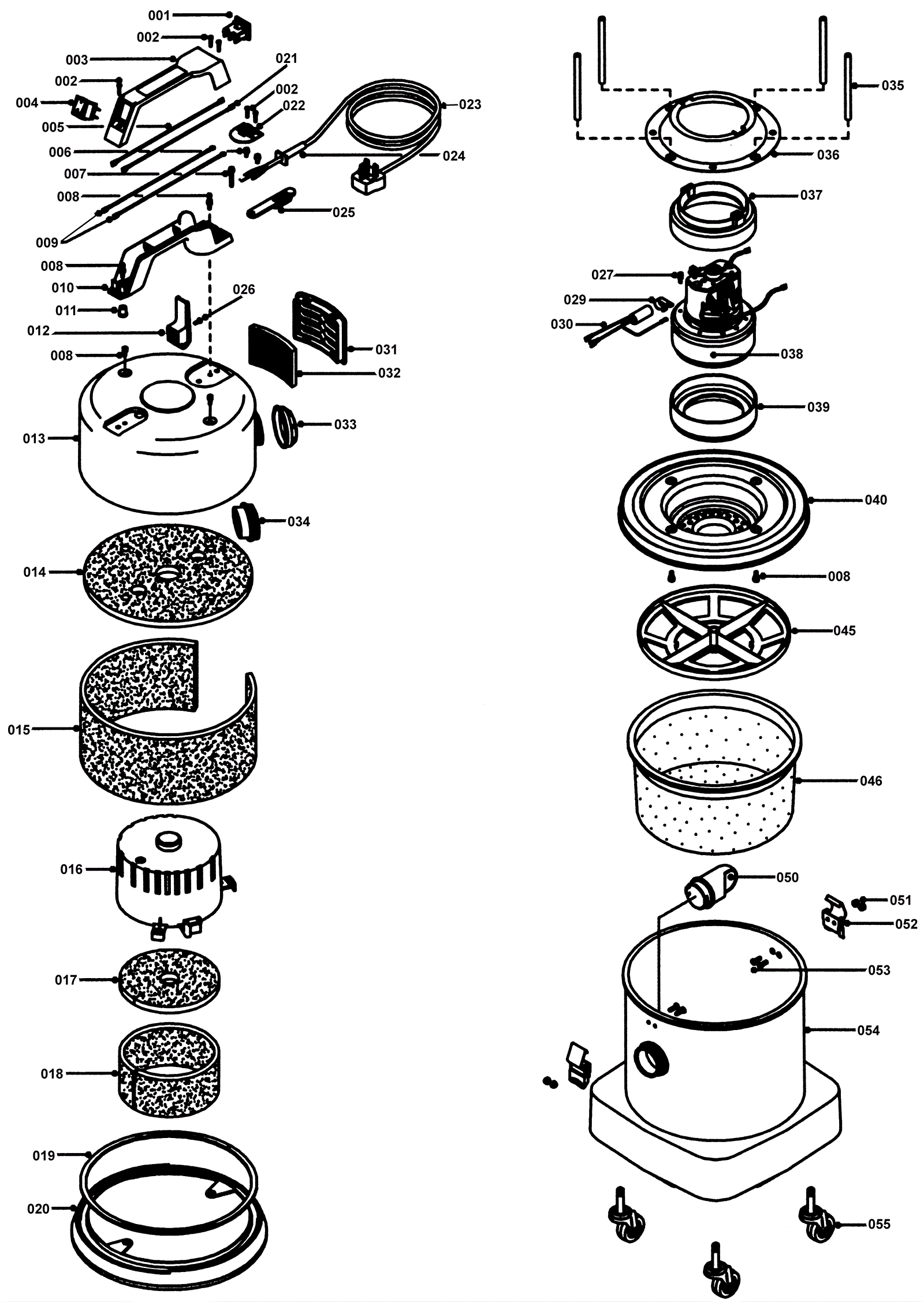

NVQ380 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 193-0027 Power nozzle plug $34.99 usually ships 1-5 days
002 193-0028 Plastic screw $2.66 usually ships 1-5 days
003 193-0029 Handle cover $16.25 usually ships 1-5 days
004 193-0011 Rocker switch (red) $31.70 usually ships 7-21 days
005 193-0030 Blue link wire $10.87 usually ships 1-5 days
006 193-0031 Screw M4 x 8mm SEMS $2.66 usually ships 7-21 days
007 193-0032 Screw M8 x 25mm STETS $3.85 usually ships 1-5 days
008 193-0033 Screw M5 x 10mm SEMS $2.66 usually ships 1-5 days
009 193-0034 Brown link wire assembly (2 req) $10.87 usually ships 1-5 days
010 193-0035 Handle body molding $64.80 usually ships 1-5 days
011 193-0036 Cable bushing $5.83 usually ships 1-5 days
012 193-0037 Cable hook $21.78 usually ships 7-21 days
013a 193-0038 Black head top - no logo $137.03 usually ships 1-5 days
013b 193-0074 Black head top with red logo Call for price usually ships 1-5 days
013c 193-0075 Black head top with blue logo Call for price usually ships 1-5 days
013d 193-0076 Black head top with green logo Call for price usually ships 1-5 days
013e 193-0077 Black head top with yellow logo Call for price usually ships 1-5 days
014 193-0039 Top felt insulation $43.73 usually ships 1-5 days
015 193-0041 Side felt insulation $23.21 usually ships 1-5 days
016 193-0042 Noise reduction pod $56.42 usually ships 1-5 days
017 193-0043 Felt disc $16.25 usually ships 1-5 days
018 193-0044 Side felt insulation $16.25 usually ships 1-5 days
019 193-0045 Seal $6.06 usually ships 1-5 days
020 193-0046 Buffer ring $54.59 usually ships 1-5 days
021 193-0047 Brown link wire $10.87 usually ships 1-5 days
022 193-0048 Cable clamp $10.25 usually ships 1-5 days
023 193-0015 Power cord $117.66 usually ships 1-5 days
024 193-0049 Strain relief $7.54 usually ships 1-5 days
025 193-0050 Strain relief cable $24.52 100V and 120V Models usually ships 1-5 days
026 193-0052 Screw M4 x 12mm pozi pan $2.85 usually ships 7-21 days
027 193-0053 Screw M4 x 6mm long pozi pan taptite $3.94 Not used on 100V and 120V Models usually ships 7-21 days
029 193-0054 Securing clip $2.52 Not used on 100V and 120V Models usually ships 1-5 days
030 193-0055 Suppressor $49.05 Not used on 100V and 120V Models usually ships 1-5 days
031 193-0056 Outlet grille with diffuser pad $17.74 usually ships 1-5 days
032 193-0057 Air diffuser pad $8.62 usually ships 1-5 days
033 193-0078 Diffuser $22.40 For 380B Models usually ships 1-5 days
034 193-0094 Air outlet $21.78 usually ships 1-5 days
035 193-0058 Aluminium spacer $3.36 ships same day
036 193-0059 Black top motor housing $279.50 usually ships 1-5 days
037 193-0060 Top motor gasket $31.04 usually ships 1-5 days
038 193-0013 120V vac motor w/ carbon brushes $316.95 usually ships 7-21 days
039 193-0061 Bottom motor gasket $31.04 usually ships 1-5 days
040 193-0062 Bottom motor housing $156.82 usually ships 1-5 days
045 193-0063 Single filter grid $36.71 usually ships 1-5 days
046 193-0014 Filter assembly (white) $62.02 usually ships 7-21 days
050 193-0064 Bag connector $22.79 usually ships 7-21 days
051 193-0066 Nut self locking $2.66 usually ships 1-5 days
052 193-0065 Toggle latch $32.88 usually ships 1-5 days
053 193-0067 Screw M5x x 12mm pozi drive $2.06 usually ships 1-5 days
054a 193-0068 Red tank $235.99 usually ships 1-5 days
054b 193-0069 Blue container Call for price usually ships 1-5 days
054c 193-0070 Green container Call for price usually ships 1-5 days
054d 193-0071 Yellow container Call for price usually ships 1-5 days
054e 193-0072 Black container Call for price usually ships 1-5 days
054f 193-0073 Brown container Call for price usually ships 1-5 days
055 193-0012 2 Inch grey non marking castor $22.36 usually ships 7-21 days
