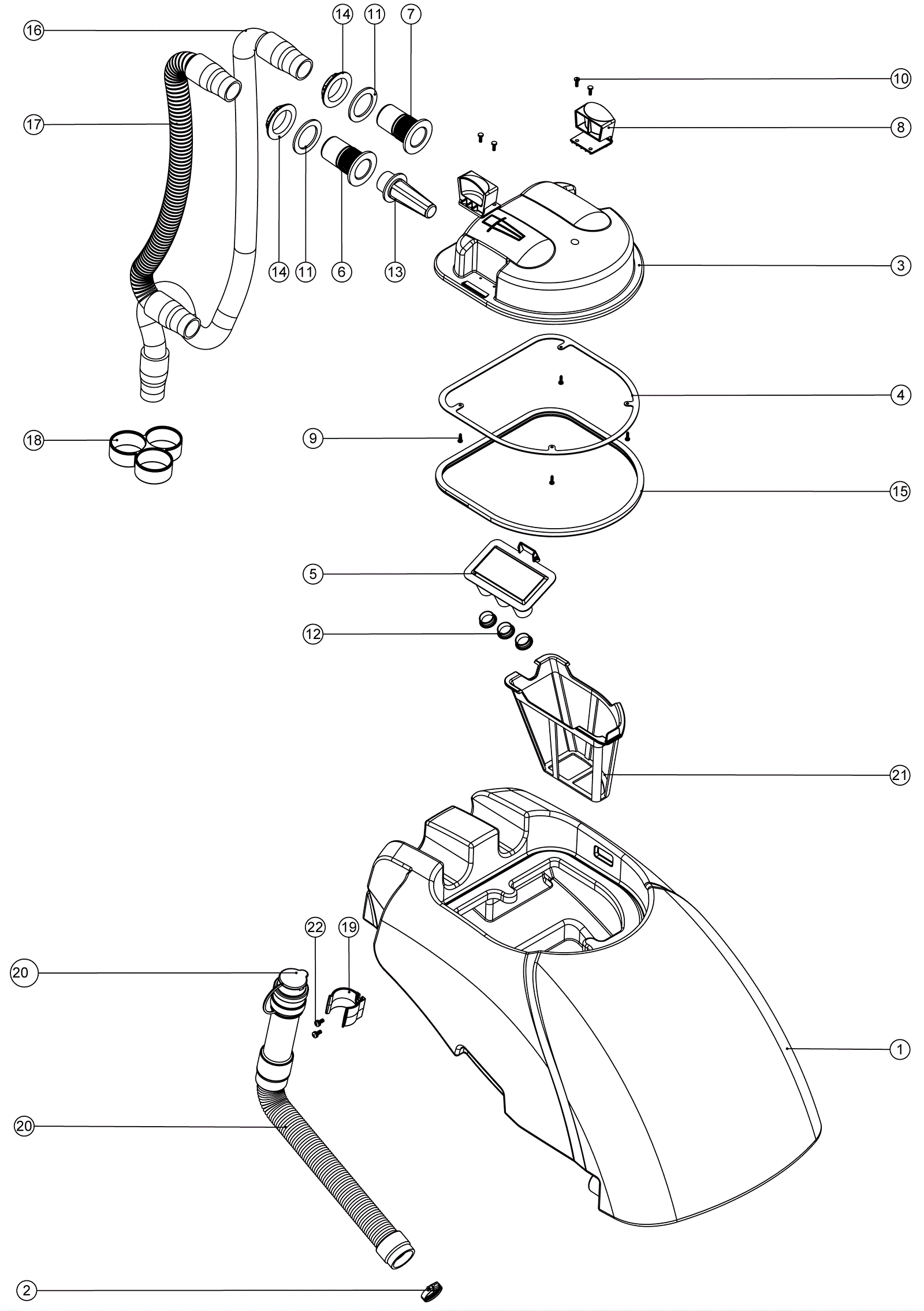

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
193-3088
|
Top tank moulding |
1 |
|
|
2 |
193-1689
|
Hose clamp |
1 |
|
|
3 |
220-1012
|
Seperator moulding |
1 |
|
|
4 |
220-1013
|
Filter gasket ring |
1 |
|
|
5 |
220-0153
|
Separator float moulding |
1 |
|
|
6 |
193-1702
|
Drain hose connector (red) |
1 |
|
|
7 |
193-1692
|
Hose connector |
1 |
|
|
8 |
193-1717
|
Clip molding |
2 |
|
|
9 |
193-1968
|
Screw |
4 |
|
|
10 |
193-2007
|
Screw 8 x 1/2 inch stainless steel |
4 |
|
|
11 |
193-1978
|
Washer |
2 |
|
|
12 |
193-0283
|
Tube end plug |
3 |
|
|
13 |
220-0155
|
Barrel filter |
1 |
|
|
14 |
193-1979
|
Nut |
2 |
|
|
15 |
220-1014
|
New separator gasket |
1 |
|
|
16 |
220-1031
|
Stretch hose |
1 |
|
|
17 |
220-4082
|
Vacuum hose |
1 |
|
|
18 |
193-1709
|
Hose guide |
1 |
|
|
19 |
193-1966
|
Hose clip |
1 |
|
|
20a |
220-2137
|
Strech hose w/ cap |
1 |
|
|
20b |
193-1710
|
Hose closure |
1 |
|
|
21 |
193-3089
|
Grit filter basket |
1 |
|
|
22a |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
2 |
(before 08/2018) |
|
22b |
193-1260
|
Screw pan head |
2 |
(after 08/2018) |
|
