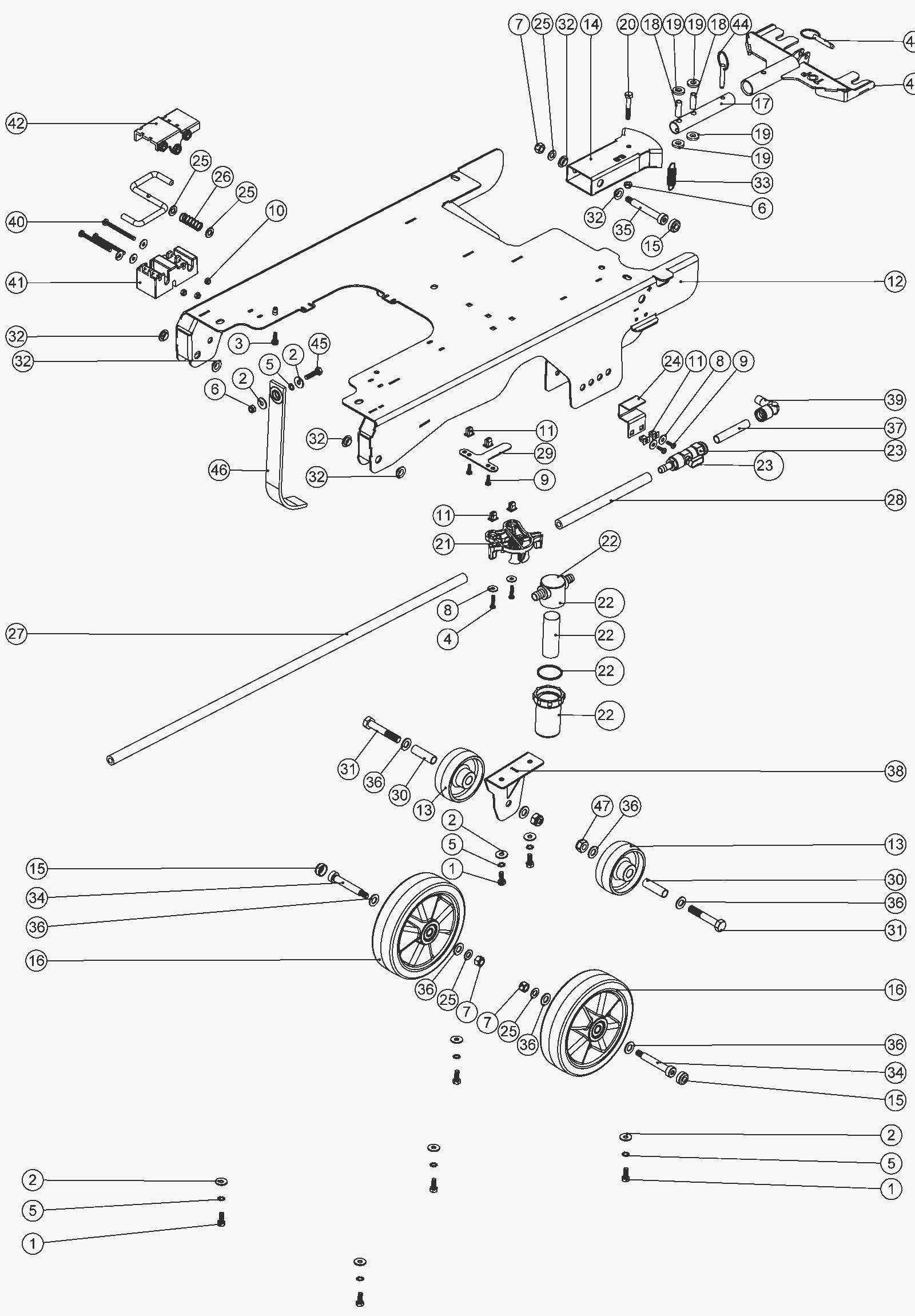

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
193-0183
|
Bolt M6 x 16mm hex head stainless steel |
7 |
|
|
2 |
193-2145
|
Washer |
9 |
|
|
3 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
1 |
|
|
4 |
193-0341
|
Screw 8 x 3/4 inch long pozi pan head stainless steel |
2 |
|
|
5 |
193-2144
|
Washer |
8 |
|
|
6 |
193-1738
|
Nylon insert nut |
2 |
|
|
7 |
193-1255
|
Nut nylon |
3 |
|
|
8 |
193-1994
|
Washer M5 stainless steel |
7 |
|
|
9 |
193-2007
|
Screw 8 x 1/2 inch stainless steel |
4 |
|
|
10 |
193-1022
|
Nut M5 nyloc stainless steel |
3 |
|
|
11 |
193-2090
|
Grommet nut nylon |
6 |
|
|
12 |
193-3082
|
Chassis weldment assembly |
1 |
|
|
13 |
220-0967
|
80mm wheel (white) |
2 |
|
|
14 |
220-0965
|
Squeegee mount weldment assembly |
1 |
|
|
15 |
220-0966
|
Cover shoulder bolt |
3 |
|
|
16 |
220-0968
|
160mm wheel with polyurethane tire |
2 |
|
|
17 |
220-0969
|
Floor tool pivot tube |
1 |
|
|
18 |
193-1441
|
Spiro spacer |
2 |
|
|
19 |
193-1443
|
Slide nylon spacer |
4 |
|
|
20 |
999-1147
|
Bolt M6-1 x 40mm hex head stainless steel |
1 |
|
|
21 |
193-3078
|
Filter mounting bracket |
1 |
|
|
22a |
220-0971
|
Extended strainer |
1 |
|
|
22b |
193-3074
|
Strainer top (black) |
1 |
(spare part) |
|
22c |
193-3076
|
Strainer mesh screen |
1 |
(spare part) |
|
22d |
193-3075
|
Strainer gasket |
1 |
(spare part) |
|
22e |
193-3077
|
Strainer clear bowl |
1 |
(spare part) |
|
23a |
193-3079
|
10mm hose tail ball valve assembly |
1 |
|
|
23b |
193-3080
|
Tap handle complete with cover |
1 |
(spare part) |
|
24 |
193-3070
|
10mm tap bracket |
1 |
|
|
25 |
193-1889
|
Washer |
5 |
|
|
26 |
220-0974
|
Deck lock spring |
1 |
|
|
27 |
220-0976
|
8mm silicon tube |
1 |
|
|
28 |
220-0977
|
Silicon tube 170 x 8mm |
1 |
|
|
29 |
220-1026
|
Silencer clamp |
1 |
|
|
30 |
220-0979
|
1/2 x 18G stainless steel tube |
2 |
|
|
31 |
193-1882
|
Bolt |
2 |
|
|
32 |
193-3073
|
Igus bearing |
6 |
|
|
33 |
193-2102
|
Spring |
1 |
|
|
34 |
220-0983
|
Hex socket shoulder bolt |
2 |
|
|
35 |
220-1027
|
Bolt M8-10 x 60mm shoulder |
1 |
|
|
36 |
193-1258
|
Washer |
8 |
|
|
37 |
193-3081
|
Nylon tube |
1 |
|
|
38 |
193-3071
|
Transport wheel bracket weld assembly |
1 |
|
|
39 |
193-3085
|
Elbow angle connector |
1 |
|
|
40 |
193-3086
|
Screw M6 x 60 |
3 |
|
|
41 |
193-3084
|
Latch block bottom moulding |
1 |
|
|
42 |
193-3083
|
Latch block top moulding |
1 |
|
|
43 |
220-0389
|
Bracket |
1 |
|
|
44 |
193-1468
|
Detent pins |
2 |
|
|
45 |
193-2104
|
Bolt hex head |
1 |
|
|
46 |
193-3072
|
Anti-static strap |
1 |
(cut to length 270mm) |
|
47 |
193-1367
|
Nut nylon insert |
2 |
|
|
48 |
193-3087
|
Deck latch bar |
1 |
|
|
49 |
193-1646
|
M5 nutsert stainless steel |
1 |
|
|
