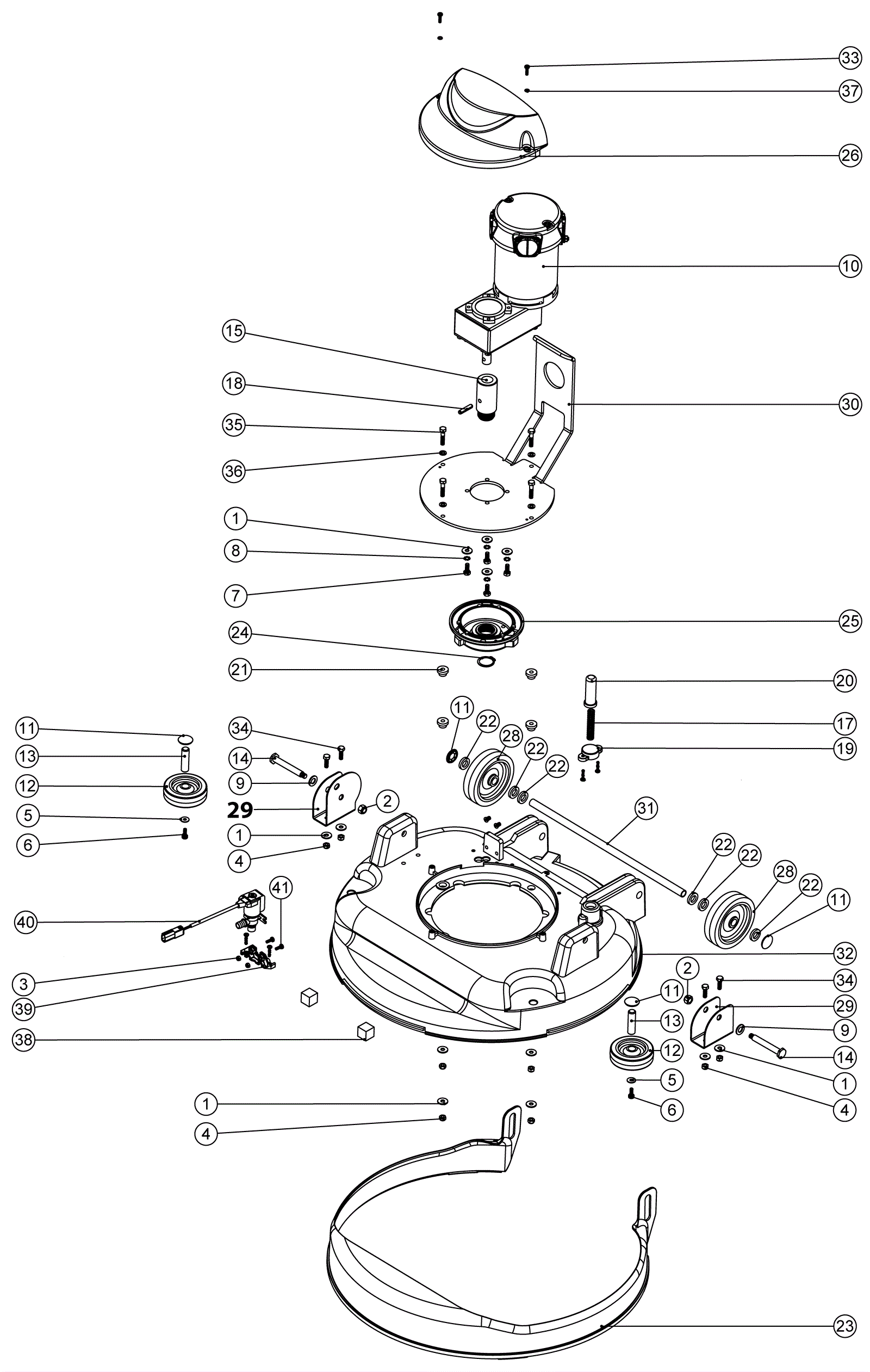

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
193-2145
|
Washer |
12 |
|
|
2 |
193-1255
|
Nut nylon |
2 |
|
|
3 |
193-0176
|
Nut M4 nylon insert stainless steel |
2 |
|
|
4 |
193-1738
|
Nylon insert nut |
8 |
|
|
5 |
193-1994
|
Washer M5 stainless steel |
2 |
|
|
6 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
2 |
|
|
7 |
193-0183
|
Bolt M6 x 16mm hex head stainless steel |
4 |
|
|
8 |
193-2144
|
Washer |
4 |
|
|
9 |
193-1258
|
Washer |
2 |
|
|
10 |
220-0634
|
Brush drive motor |
1 |
|
|
11 |
193-1996
|
Chrome cap starlock |
4 |
|
|
12 |
193-2048
|
3 inch 3 wheel (gray) |
2 |
|
|
13 |
193-1993
|
Buffer wheel pin |
2 |
|
|
14 |
193-3063
|
Pivot pin |
2 |
|
|
15 |
220-0986
|
Drive shaft |
1 |
|
|
16 |
220-4145
|
Insert |
2 |
|
|
17 |
220-4204
|
Compression spring |
1 |
|
|
18 |
193-1380
|
6mm roll pin |
1 |
|
|
19 |
N/A
|
Not available |
1 |
|
|
20 |
193-2015
|
Plunger |
1 |
|
|
21 |
220-4144
|
Motor mounting spacer |
4 |
|
|
22 |
193-1938
|
Spacer |
6 |
|
|
23 |
220-4148
|
Splash skirt moulding |
1 |
|
|
24 |
193-2020
|
External 26MM circlip |
1 |
|
|
25 |
193-3064
|
Chuck |
1 |
|
|
26 |
220-0992
|
Splash skirt |
1 |
|
|
28 |
220-4106
|
Wheel |
2 |
|
|
29a |
220-0991
|
Deck mount bracket |
1 |
|
|
29b |
193-3066
|
Right hand deck mount |
1 |
|
|
30 |
193-3067
|
Motor adaptor plate |
1 |
|
|
31 |
193-3065
|
Stainless steel tube |
1 |
|
|
32 |
193-3062
|
Deck moulding drilled |
1 |
|
|
33 |
193-0177
|
Screw M4 x 16mm pan head stainless steel |
2 |
|
|
34 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
35 |
193-2151
|
Bolt M6 x 30MM |
4 |
|
|
36 |
193-0149
|
Washer M6-A stainless steel |
4 |
|
|
37 |
193-2153
|
Washer |
2 |
|
|
38 |
193-3068
|
Foam spacer |
2 |
|
|
39 |
193-3069
|
Solenoid mount moulding |
1 |
|
|
40 |
220-0705
|
Termindated solenoid assembly |
1 |
|
|
41 |
193-1650
|
Screw M4 x 12mm pan head pozi stainless steel |
2 |
|
|
42 |
193-0341
|
Screw 8 x 3/4 inch long pozi pan head stainless steel |
4 |
|
|
