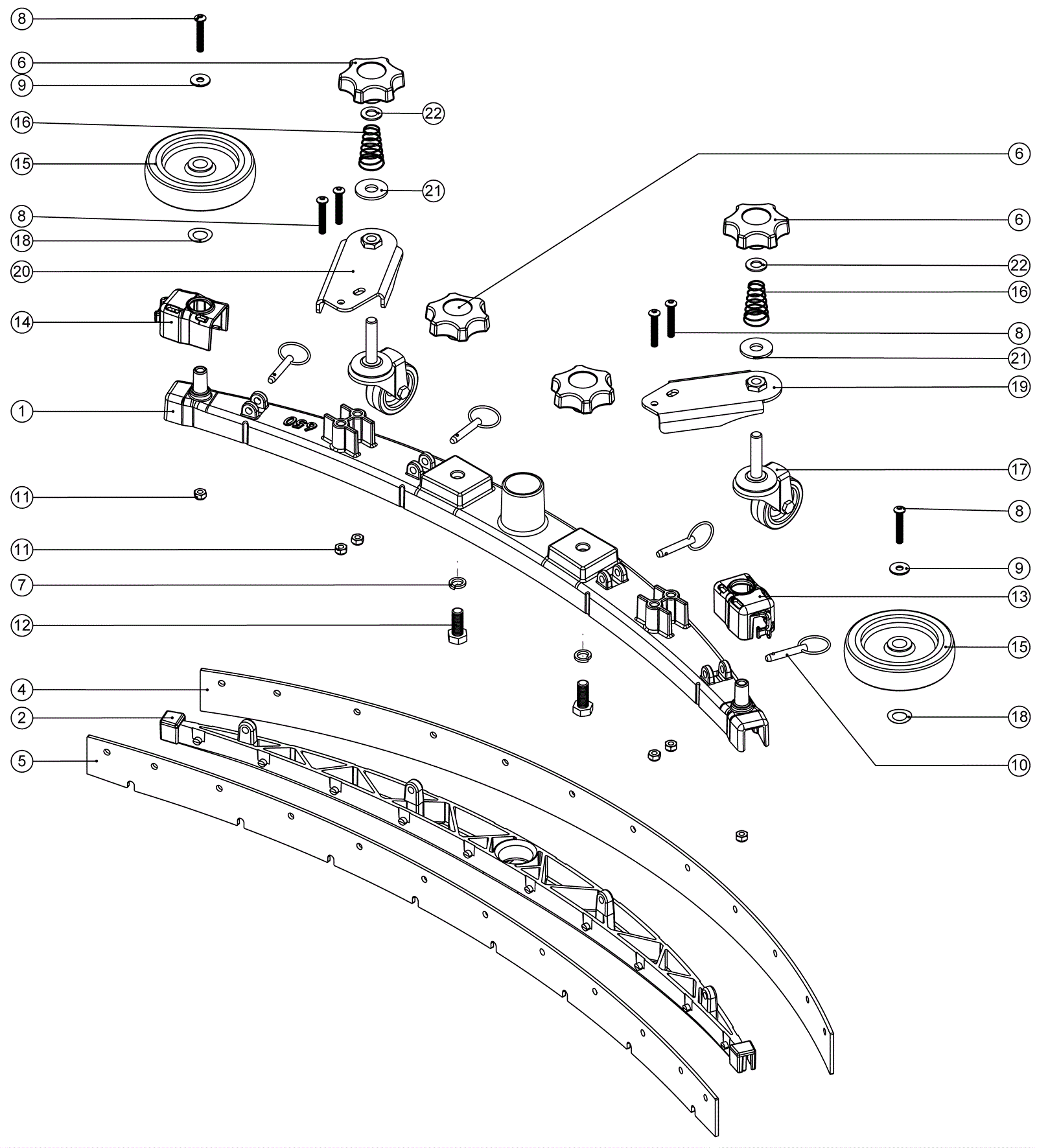

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
220-0357
|
Squeegee weldment |
1 |
|
|
2a |
193-1585
|
Red blade holder moulding |
1 |
|
|
2b |
193-0095
|
Squeegee blade kit 26 inch |
1 |
(optional) |
|
4 |
193-0095
|
Squeegee blade kit 26 inch |
1 |
|
|
5 |
193-0095
|
Squeegee blade kit 26 inch |
1 |
|
|
6 |
193-1588
|
M10 lobe knob (red) |
4 |
|
|
7 |
193-1257
|
Washer |
2 |
|
|
8 |
999-1953
|
Screw M6-1 x 35mm socket stainless steel |
6 |
|
|
9 |
193-2145
|
Washer |
2 |
|
|
10 |
193-1468
|
Detent pins |
4 |
|
|
11 |
193-1738
|
Nylon insert nut |
6 |
|
|
12 |
193-1885
|
Screw |
2 |
|
|
13 |
193-1578
|
Right hand clip |
1 |
|
|
14 |
193-1579
|
Left hand clip |
1 |
|
|
15 |
193-1580
|
4 inch wheel |
2 |
|
|
16 |
193-1583
|
Conical spring |
2 |
|
|
17 |
193-1584
|
50mm tyred swivel caster (grey) |
2 |
|
|
18 |
193-1590
|
13mm wave washer |
2 |
|
|
19 |
193-1594
|
Right hand caster plate weldment assembly |
1 |
|
|
20 |
193-1595
|
Left hand caster plate weldment assembly |
1 |
|
|
21 |
193-1365
|
Washer |
2 |
|
|
22 |
193-1258
|
Washer |
2 |
|
|
