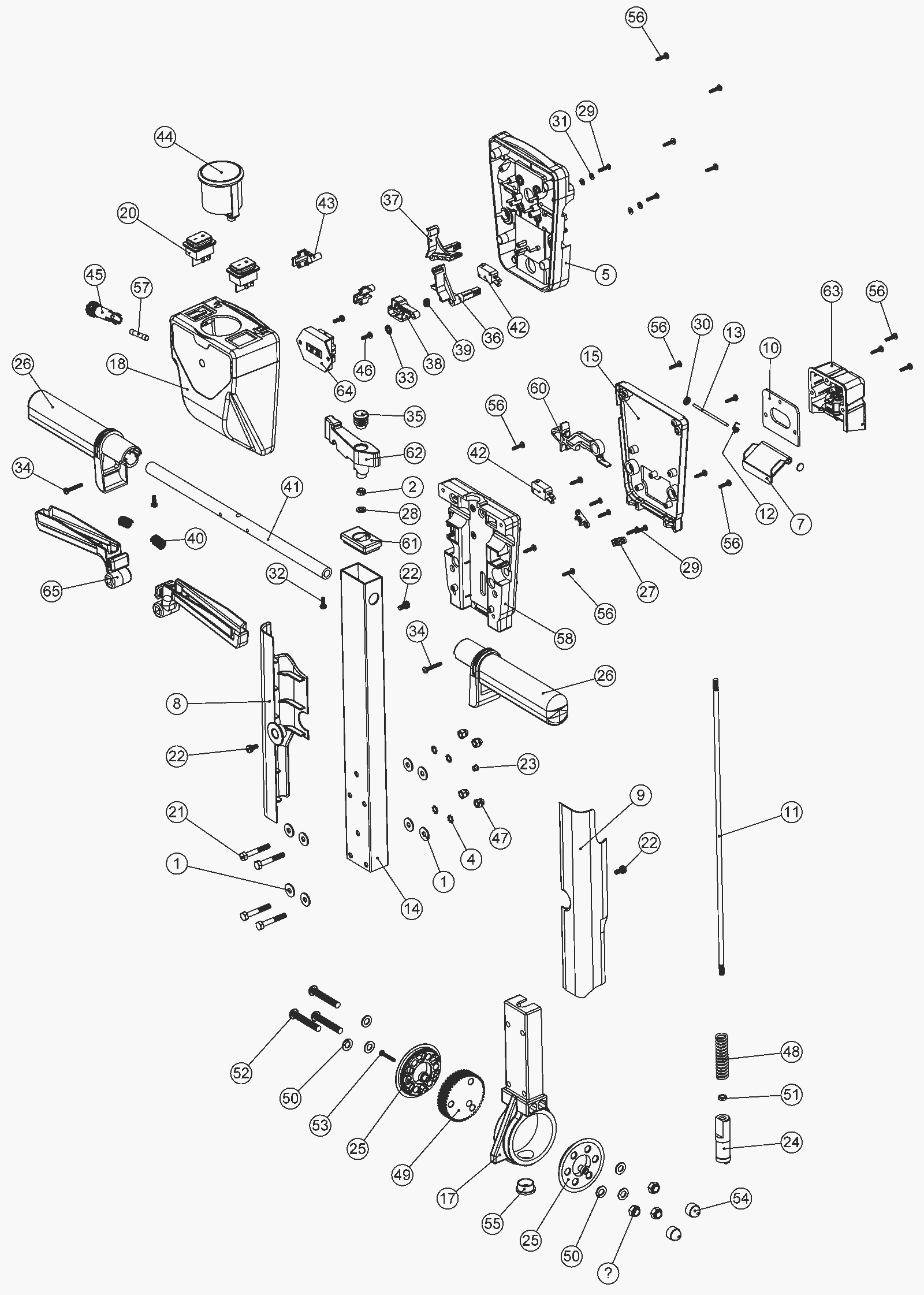

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
193-2145
|
Washer |
8 |
|
|
2 |
193-1738
|
Nylon insert nut |
1 |
|
|
3 |
193-1255
|
Nut nylon |
3 |
(torque 1.5-2NM) |
|
4 |
193-2144
|
Washer |
4 |
|
|
5a |
193-1734
|
Front inner half molding |
1 |
(standard TGB machine) |
|
5b |
220-0996
|
Front inner half moulding |
1 |
(flame retardent 120V) |
|
7 |
193-1827
|
Flap molding |
1 |
|
|
8 |
193-3046
|
Left hand handle cable cover |
1 |
|
|
9 |
193-3047
|
Right hand handle cable cover |
1 |
|
|
10 |
220-1005
|
Socket cover sealing gasket |
1 |
|
|
11 |
220-0998
|
440mm handle locking rod |
1 |
|
|
12 |
193-1828
|
Spring |
1 |
|
|
13 |
193-1826
|
Stainless steel bar |
1 |
|
|
14 |
193-3054
|
Handle |
1 |
|
|
15a |
220-0254
|
Rear cover |
1 |
(standard TGB machine) |
|
15b |
220-1004
|
Rear cover moulding |
1 |
(flame retardent 120V) |
|
17 |
193-3049
|
Handle casting for gear spacer |
1 |
|
|
18a |
193-3051
|
Handle front cover |
1 |
(standard TGB machine) |
|
18b |
193-3053
|
Handle front cover |
1 |
(flame retardent 120V) |
|
20 |
193-3050
|
Illuminated switch (red) |
2 |
|
|
21 |
999-1147
|
Bolt M6-1 x 40mm hex head stainless steel |
4 |
|
|
22 |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
3 |
|
|
23 |
193-0345
|
Blanking pin |
1 |
|
|
24 |
193-1743
|
Gear locking pin |
1 |
|
|
25 |
193-3048
|
Adjustment gear spacer |
2 |
|
|
26 |
193-1747
|
Hand grip molding |
2 |
|
|
27 |
193-0226
|
Handle cable clamp |
2 |
|
|
28 |
193-0219
|
Washer M6 nylon |
1 |
|
|
29 |
193-1034
|
Screw #6 x 5/8 plastite |
6 |
|
|
30 |
193-1829
|
3mm diameter starlock |
2 |
|
|
31 |
193-1215
|
Flat washer |
4 |
|
|
32 |
193-1749
|
Screw |
2 |
|
|
33 |
193-1752
|
4mm spirefix starlock |
1 |
|
|
34 |
193-1754
|
Screw |
2 |
|
|
35 |
193-1739
|
Tube end cap (black) |
1 |
|
|
36 |
193-1750
|
Left hand switch operating lever molding |
1 |
|
|
37 |
193-1751
|
Right hand switch lever |
1 |
|
|
38 |
220-0192
|
Center switch lever |
1 |
|
|
39 |
220-0211
|
Switch compression spring |
1 |
|
|
40 |
193-1753
|
Trigger compression spring |
2 |
|
|
41 |
193-1733
|
Cross tube |
1 |
|
|
42 |
193-1787
|
Switch |
2 |
|
|
43 |
193-3052
|
Handle boss |
2 |
|
|
44 |
193-3058
|
Battery discharge indicator |
1 |
|
|
45 |
193-3059
|
Fuseholder |
1 |
|
|
46 |
193-2007
|
Screw 8 x 1/2 inch stainless steel |
2 |
|
|
47 |
193-3055
|
Dome nut |
4 |
|
|
48 |
193-1744
|
Spring |
1 |
|
|
49 |
193-3057
|
Mini adjustment gear |
1 |
|
|
50 |
193-1889
|
Washer |
6 |
|
|
51 |
193-1745
|
Half nut |
1 |
|
|
52 |
193-0216
|
Bolt M8 x 50mm socket button head stainless steel |
3 |
|
|
53 |
193-3056
|
Screw #6 x 1 pozi pan stainless steel |
1 |
|
|
54 |
193-9058
|
Bolt and nut cap |
2 |
|
|
55 |
193-1726
|
25mm hole plug |
1 |
|
|
56 |
193-1023
|
Screw #8 x 5/8 plastite stainless steel |
15 |
|
|
57 |
193-3060
|
2.5Amp fuse |
1 |
|
|
58a |
193-1735
|
Rear inner half molding |
1 |
(standard TGB machine) |
|
58b |
220-0997
|
Rear inner half moulding |
1 |
(flame retardent 120V) |
|
60 |
193-1740
|
Interlock lever molding |
1 |
|
|
61 |
193-3042
|
Handle plug moulding (red) |
1 |
|
|
62 |
193-3061
|
Lever |
1 |
|
|
63a |
193-3043
|
240V filter with socket assembly |
1 |
(240V version) |
|
63b |
193-3044
|
120V filter with socket assembly |
1 |
(120V version) |
|
64 |
193-3045
|
DMH terminal block PCB assembly |
1 |
|
|
65 |
193-3041
|
Trigger moulding (red) |
2 |
|
|
