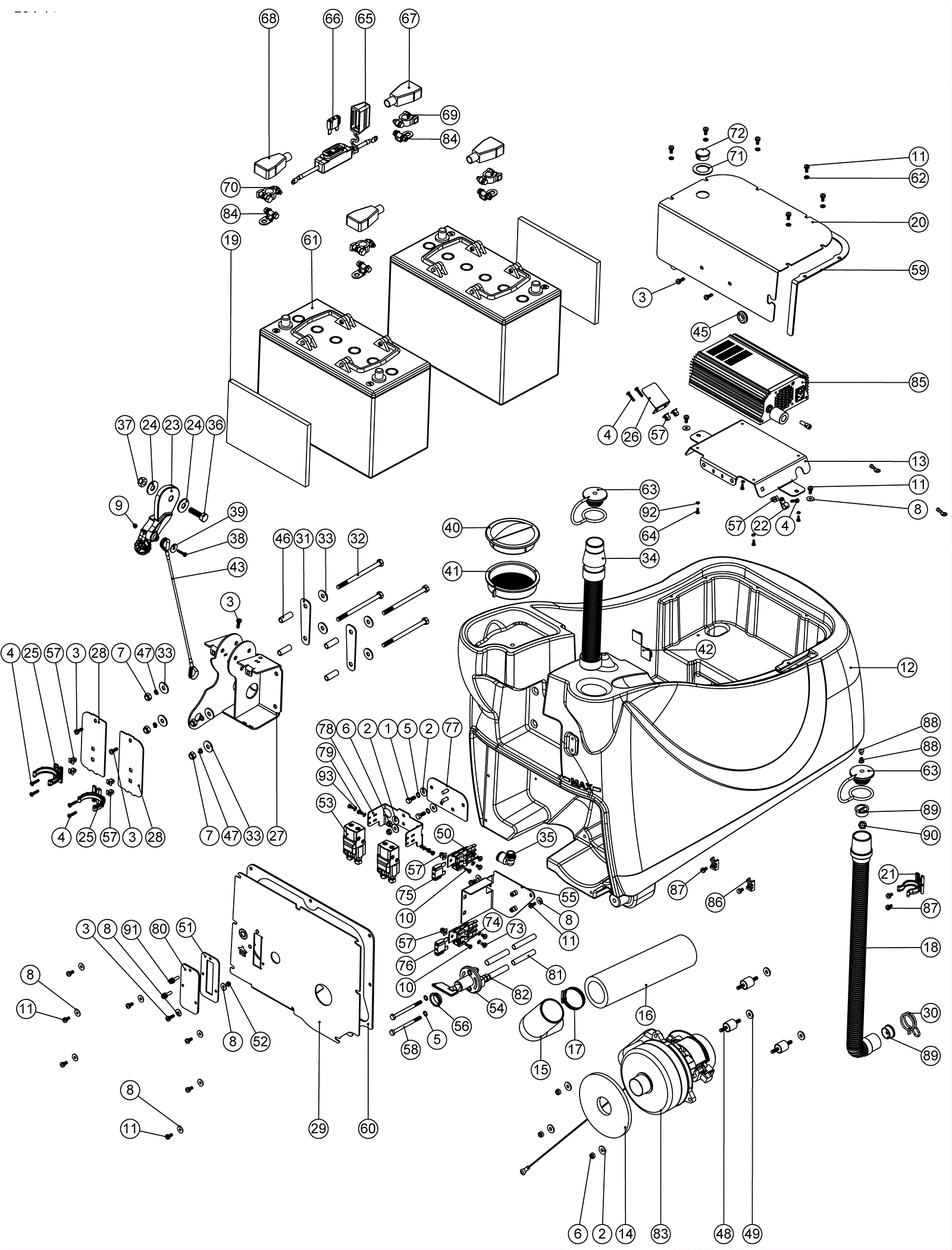

Bottom Tank Assembly

#PartDescription ReqNotesAvailability
1 193-0183 Bolt M6 x 16mm hex head stainless steel 2
2 193-2145 Washer 7
3 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 6
4 193-0341 Screw 8 x 3/4 inch long pozi pan head stainless steel 7
5 193-2144 Washer 4
6 193-1738 Nylon insert nut 5
7 193-1255 Nut nylon 4
8 193-1994 Washer M5 stainless steel 13
9 193-0176 Nut M4 nylon insert stainless steel 1
10 193-2007 Screw 8 x 1/2 inch stainless steel 2
11 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 17
12a 193-3014 Bottom tank moulding 1 (with logo)
12b 193-3015 Bottom tank moulding 1 (without logo)
13 193-3001 Charger plate 1
14 193-0192 Vacuum motor gasket 1
15 220-0947 Dip molded elbow 1
16 220-0948 Silencer foam 1
17 193-1112 Hose clamp stainless steel 1
18a 193-1714 Drain hose assembly 1 (includes 18b, 63, 88-90)
18b 220-0130 Dump hose assembly 1
19 193-1290 Foam battery spacer 2
20 193-3016 Charger cover plate 1
21 193-1711 Hose clip 1
22 193-2108 P clip 1
23 193-3000 Squeegee lift handle (red) 1
24 193-1365 Washer 2
25 193-1713 Hose clip 2
26 193-3017 Nord charger mirror plate 1
27 193-3002 Weld assembly 1
28 193-3018 Handle mount cover 2
29 193-3019 Back plate 1
30 193-1712 Spring wire clamp 1
31 193-3020 Handle mount link plate 2
32 999-1384 Screw M8-1.25 x 120mm hex head full thread 8.8 grade 4
33 193-1457 Washer M8 form g stainless steel 8
34 193-3021 Filling hose 1
35 193-3004 Elbow angle connector 1
36 193-1379 Screw M10 hex head 1
37 193-1367 Nut nylon insert 1
38 193-1801 Screw 1
39 193-1259 Washer 1
40 193-3011 Filler cap lid (red) 1
41 193-3010 Clean tank inlet filter (red) 1
42 220-4119 Cable clip 2
43 193-3003 Lifting wire (red) 1
44 193-1646 M5 nutsert stainless steel 3
45 193-1287 Grommet 1
46 193-3022 PVC hose 4
47 193-1853 Steel washer 4
48 193-3023 Male to male mount 3
49 193-1102 Washer M6 form g steel 3
50 193-1789 Fuse holder 2
51 193-3024 Fuse plate gasket 1
52 193-1022 Nut M5 nyloc stainless steel 1
53 193-3012 Contactor 2
54a 193-1796 Master key switch and key 1 (includes 54b)
54b 193-3025 Key 1
55 193-3026 Isolator support bracket 1
56 193-3027 PVC grommet 1
57 193-2090 Grommet nut nylon 9
58 193-1340 Bolt hex head 2
59 193-3009 Charger cover gasket 1
60 193-3008 Back plate gasket 1
61a 193-3028 12V traction block battery 2 (80Ah version)
61b 162-6022 12V 102Ah gel battery (SNSR) 2 (100Ah version)
62 193-0205 Washer M5-A stainless steel 6
63 193-1721 Hose cap (red) 2
64 999-0459 Screw 6-32 x 3/8 pan head thread-cutting type 23 zinc 4
65 193-3013 Waterproof battery fuse holder 1
66 193-1791 40amp fuse 1
67 193-3029 Battery terminal cover (black) 2
68 193-3030 Battery terminal cover (red) 2
69 193-1839 Negative battery terminal convertor 2 (80Ah version)
70 193-1838 Positive battery terminal converter 2 (80Ah version)
71 193-3031 Window plug gasket 1
72 193-1830 Window plug 1
73 193-1792 Screw 4
74 193-1954 Washer 4
75 193-1790 30amp fuse 1
76 193-1626 20amp maxi fuse 1
77 193-3032 Contactor adapter bracket assembly 1
78 193-3033 Contactor bracket 1
79 220-0332 Screw M4 x 8mm pozi pan head stainless steel 4
80 193-3034 Fuse cover plate 1
81 193-3035 Tube 2
82 193-3036 PVC sleeving 2
83 193-3006 24V 2-stage vac motor assembly 1
84 193-3005 Battery connector 4 (100Ah version)
85a 193-3037 230V charger assembly 1
85b 220-5138 115V charger assembly 1
86 193-3038 Cable clip platform 2
87 193-1260 Screw pan head 4
88 193-1722 Barbed rivet (black) 2
89 193-1719 Float stop molding 2
90 193-1718 Float molding 1
91 193-3039 Thumb screw M5 x 16 knurled nylon (white) 2
92 193-3040 Washer M3 external shakeproof 4
93 193-3007 Knob 4
