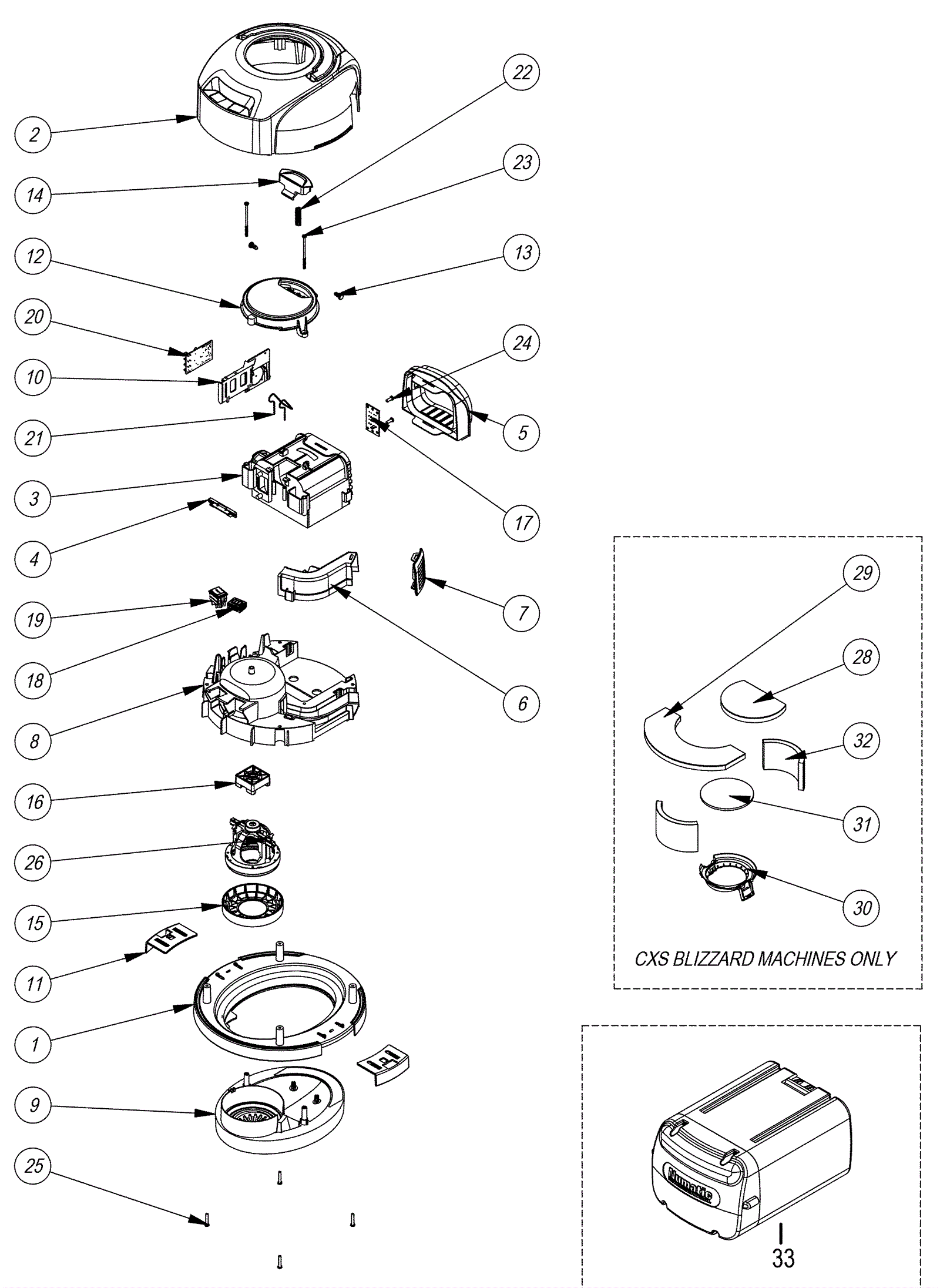

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
193-2207
|
Bottom motor housing |
Call for price
|
1 |
|
usually ships 16-24 days |
2 |
N/A
|
Not available |
Call for price
|
1 |
(handle and battery cover) |
usually ships 3-26 days |
3 |
193-2208
|
Battery pod |
$155.93
|
1 |
|
usually ships 16-24 days |
4 |
193-2209
|
Battery release spring |
$5.50
|
1 |
|
usually ships 16-24 days |
5 |
193-2210
|
Battery pod fascia |
$15.93
|
1 |
|
usually ships 16-24 days |
6 |
193-2211
|
Exhaust duct |
Call for price
|
1 |
|
usually ships 16-24 days |
7 |
193-2212
|
Exhaust air duct fascia |
$16.10
|
1 |
|
usually ships 16-24 days |
8 |
193-2213
|
Motor housing |
Call for price
|
1 |
|
usually ships 16-24 days |
9 |
193-2214
|
Motor adaptor |
Call for price
|
1 |
|
usually ships 16-24 days |
10 |
193-2215
|
PCB mount and fan housing |
$15.94
|
1 |
|
usually ships 16-24 days |
11 |
193-2216
|
Toggle switch (single shot) |
$15.11
|
2 |
|
usually ships 16-24 days |
12 |
220-4084
|
Reeler cap |
$15.42
|
1 |
|
usually ships 16-24 days |
13 |
220-2006
|
Battery release toggle (black) |
$17.49
|
2 |
|
usually ships 16-24 days |
14 |
193-2217
|
Battery release catch (red) |
$10.68
|
1 |
|
usually ships 16-24 days |
15 |
220-2046
|
Motor gasket |
$32.57
|
1 |
|
usually ships 16-24 days |
16 |
220-2045
|
Motor top mount |
$10.14
|
1 |
|
usually ships 16-24 days |
17 |
220-2011
|
Battery vac connecting PCB |
$57.48
|
1 |
|
ships same day |
18 |
220-2015
|
LED battery indicator light |
$42.43
|
1 |
|
usually ships 16-24 days |
19 |
220-2014
|
Switch |
$30.17
|
1 |
|
usually ships 16-24 days |
20 |
220-2012
|
PCB motor control |
$113.60
|
1 |
|
usually ships 16-24 days |
21 |
220-2041
|
Battery release spring |
$10.40
|
1 |
|
usually ships 16-24 days |
22 |
220-2027
|
11mm coil spring |
$24.78
|
1 |
|
usually ships 16-24 days |
23 |
220-2035
|
Plastic screw |
$3.82
|
2 |
|
usually ships 16-24 days |
24 |
220-2042
|
Screw |
$4.06
|
2 |
|
usually ships 16-24 days |
25 |
220-2043
|
Pan head screw |
$3.55
|
4 |
|
usually ships 16-24 days |
26 |
220-2013
|
36v DC 1 stage motor |
$259.58
|
1 |
|
usually ships 16-24 days |
28 |
193-2219
|
Ratchet handle |
$52.91
|
1 |
(CXS BLIZZARD MACHINES ONLY) |
usually ships 16-24 days |
29 |
193-2220
|
Battery vac cover |
Call for price
|
1 |
(CXS BLIZZARD MACHINES ONLY) |
usually ships 16-24 days |
30 |
N/A
|
Not available |
Call for price
|
1 |
(Filter locking cap) (CXS BLIZZARD MACHINES ONLY) |
usually ships 3-26 days |
31 |
193-2221
|
Pre-motor filter |
Call for price
|
1 |
(CXS BLIZZARD MACHINES ONLY) |
usually ships 16-24 days |
32 |
193-2222
|
Motor accoustic barrier installed position |
Call for price
|
2 |
(CXS BLIZZARD MACHINES ONLY) |
usually ships 16-24 days |
33 |
220-2056
|
36V lithium Ion battery |
$659.03
|
1 |
|
ships same day |
N/S |
193-2218
|
Cable ties (white) |
Call for price
|
1 |
|
usually ships 16-24 days |
