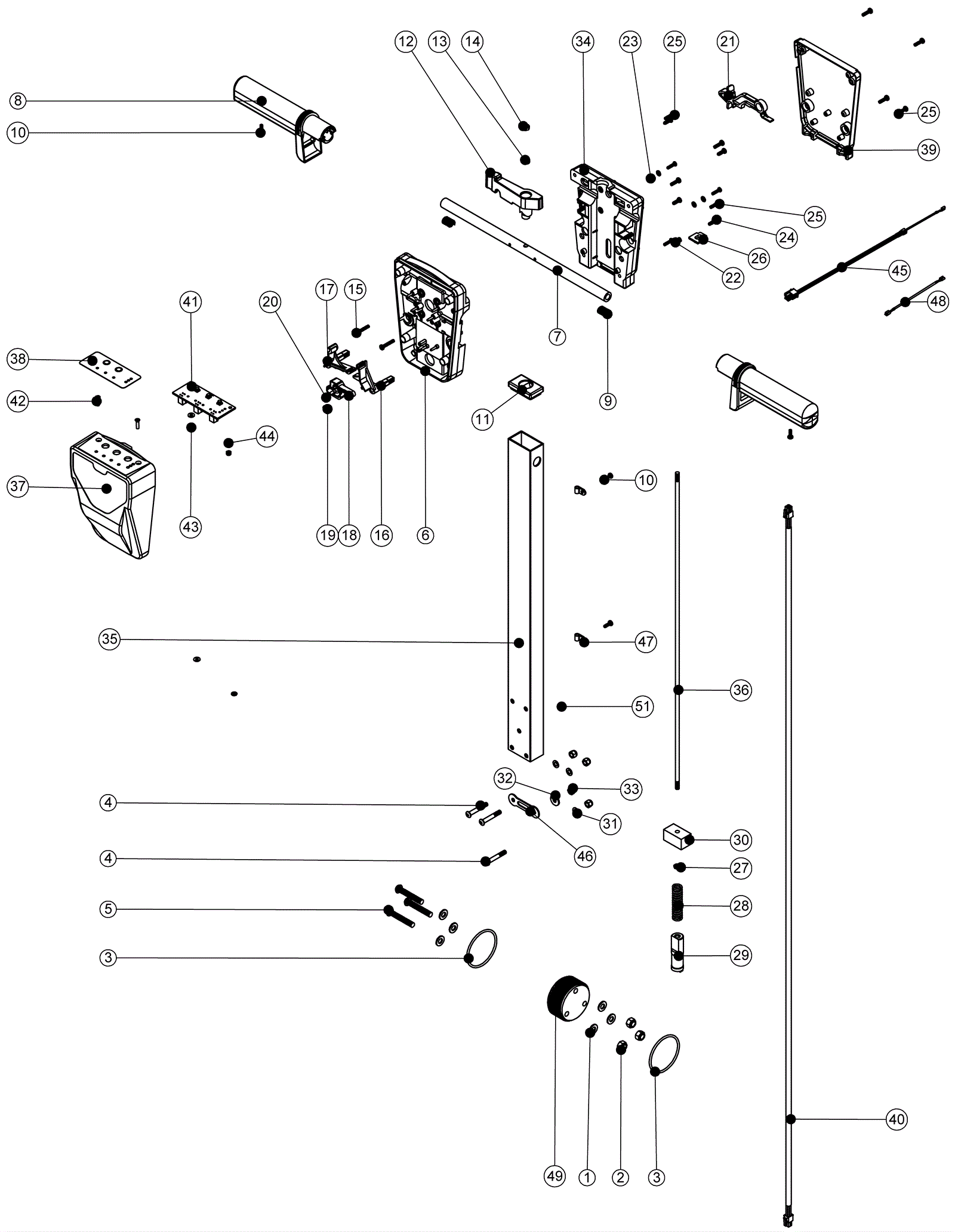

TTB516 Handle Assembly - For Models Starting with SN 1305

#PartDescriptionPriceReqNotesAvailability
1 220-0164 Washer $2.64 6 usually ships 7-21 days
2 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 usually ships 11-24 days
3 220-0176 O ring $8.78 2 usually ships 1-5 days
4 193-0215 Bolt M6 x 40mm socket button head $2.68 3 usually ships 1-5 days
5 193-0216 Bolt M8 x 50mm socket button head stainless steel $2.85 3 usually ships 1-5 days
6 220-0183 Front inner molding $11.80 1 usually ships 1-5 days
7 220-0182 Tube $27.85 1 usually ships 7-21 days
8 220-0124 Hand grip molding $98.80 2 usually ships 7-21 days
9 220-0210 Trigger compression spring $12.13 2 usually ships 7-21 days
10 193-0218 Screw 8 x 1/2 inch pan head self tap $3.85 4 usually ships 7-21 days
11 220-0197 Handle plug $32.42 1 usually ships 1-5 days
12 220-0193 Adjustment lever $46.28 1 usually ships 1-5 days
13 193-0219 Washer M6 nylon $3.38 1 usually ships 1-5 days
14 193-0139 Nut M6 nylon insert stainless steel $3.96 1 ships same day
15 193-0220 Screw 8 x 1 inch pan head self tap $3.27 2 usually ships 1-5 days
16 220-0190 Left hand switch lever $32.45 1 usually ships 7-21 days
17 220-0191 Right hand switch lever $32.45 1 usually ships 7-21 days
18 220-0192 Center switch lever $32.34 1 usually ships 1-5 days
19 220-0209 4mm spirefix $3.92 1 usually ships 1-5 days
20 220-0211 Switch compression spring $14.47 1 usually ships 1-5 days
21 220-0196 Interlock lever $32.45 1 usually ships 1-5 days
22 193-0028 Plastic screw $2.66 4 usually ships 1-5 days
23 193-0221 Washer M4-A $3.85 4 usually ships 1-5 days
24 193-0107 Screw 8 x 1/2 plastite $2.50 4 usually ships 1-5 days
25 220-0109 Screw $2.66 8 usually ships 1-5 days
26 220-0204 Plug $2.71 1 usually ships 1-5 days
27 193-0223 Half nut M6 $2.66 1 usually ships 1-5 days
28 220-0178 Spring $26.26 1 usually ships 1-5 days
29 220-0177 Gear locking pin $116.67 1 usually ships 7-21 days
30 193-0224 Anti-vibration pad $10.87 1 usually ships 1-5 days
31 193-0225 Washer M6-B $2.66 3 usually ships 1-5 days
32 220-0168 Washer $2.66 1 usually ships 1-5 days
33 220-0170 Nylon nut $2.66 4 usually ships 1-5 days
34 220-0184 Rear inner molding $11.80 1 usually ships 7-21 days
35 193-0227 Painted handle $47.52 1 usually ships 1-5 days
36 193-0228 Handle locking rod $29.76 1 usually ships 1-5 days
37 193-0239 Front cover moulding $33.12 1 usually ships 1-5 days
38 193-0230 Control panel overlay $21.82 1 usually ships 1-5 days
39 193-0231 Rear cover moulding $29.89 1 usually ships 1-5 days
40 193-0232 Core loom assembly $114.86 1 usually ships 1-5 days
41 220-4085 Control $366.11 1 usually ships 7-21 days
42 193-0234 Screw M4 x 16mm pan head countersunk $3.62 2 usually ships 1-5 days
43 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
44 193-0235 Nylon washer $2.85 3 usually ships 1-5 days
45 193-0236 3 core handle loom $48.47 1 usually ships 1-5 days
46 220-0189 P-clip $5.83 1 usually ships 1-5 days
47 193-0237 P-clip $5.92 2 usually ships 1-5 days
48 193-0238 Black link wire $8.17 1 usually ships 1-5 days
49 220-0175 Adjustment gear $210.02 1 usually ships 1-5 days
50 193-0194 Washer M4-A stainless steel $3.94 1 usually ships 1-5 days
51 220-0195 Plug $5.13 1 usually ships 1-5 days
