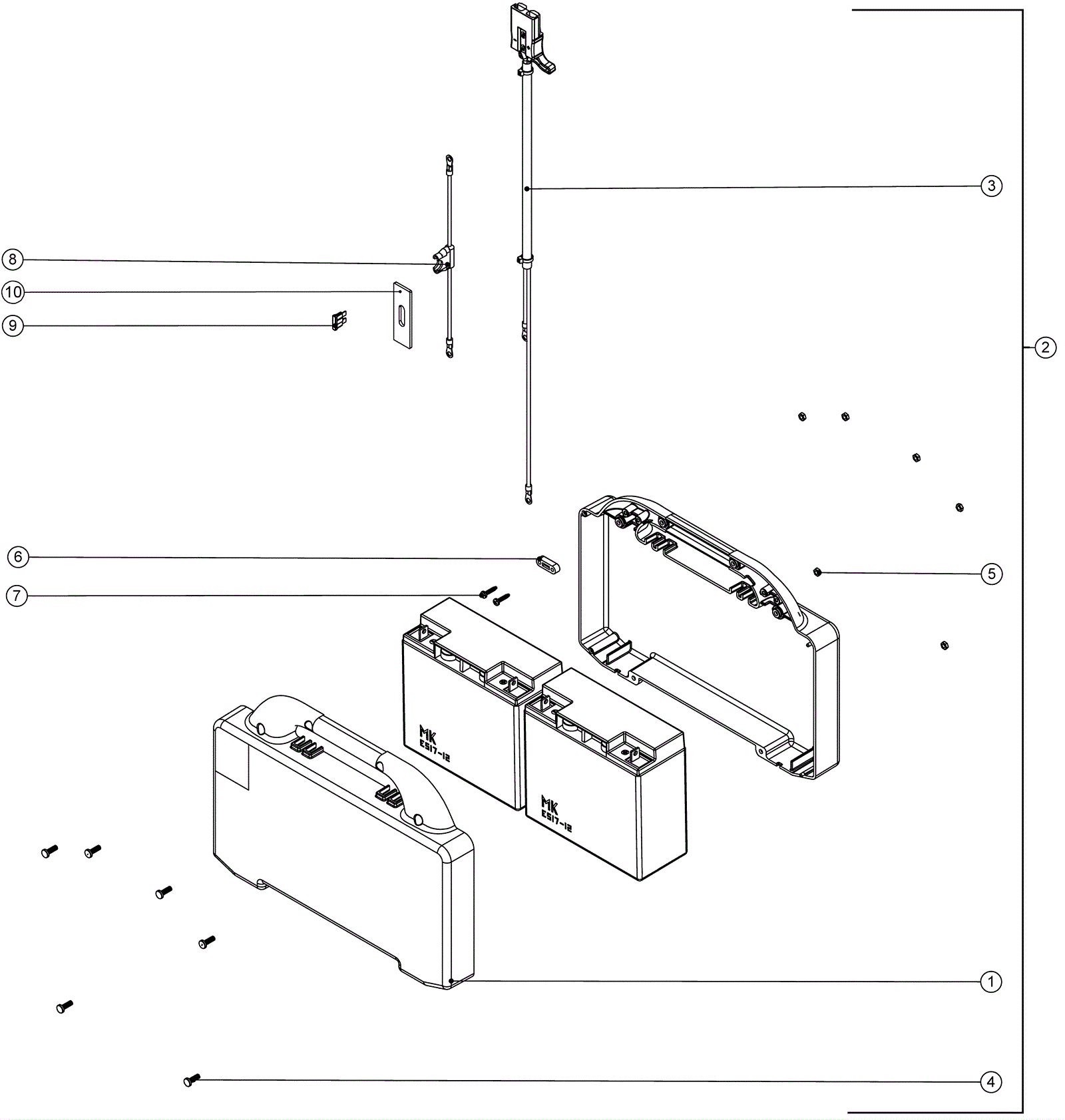

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
193-0207
|
Battery case (half) |
2 |
|
|
2 |
193-0287
|
Battery pack kit |
1 |
|
|
3 |
193-0208
|
Battery lead assembly |
1 |
|
|
4 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
6 |
|
|
5 |
193-0209
|
Nut M5 full stainless steel |
6 |
|
|
6 |
220-0203
|
Cable clamp (black) |
1 |
(for models starting with SN 1115 only) |
|
7 |
193-0028
|
Plastic screw |
2 |
|
|
8 |
193-0210
|
30amp fuse holder assembly |
1 |
|
|
9a |
193-0211
|
30amp fuse |
1 |
(for models starting with SN 1115) |
|
9b |
193-0212
|
40amp fuse |
1 |
(for models starting with SN 1327) |
|
10 |
193-0213
|
Battery pack fuse plate |
1 |
(for models starting with SN 1327 only) |
|
N/S |
220-0336
|
Battery charger |
1 |
|
|
