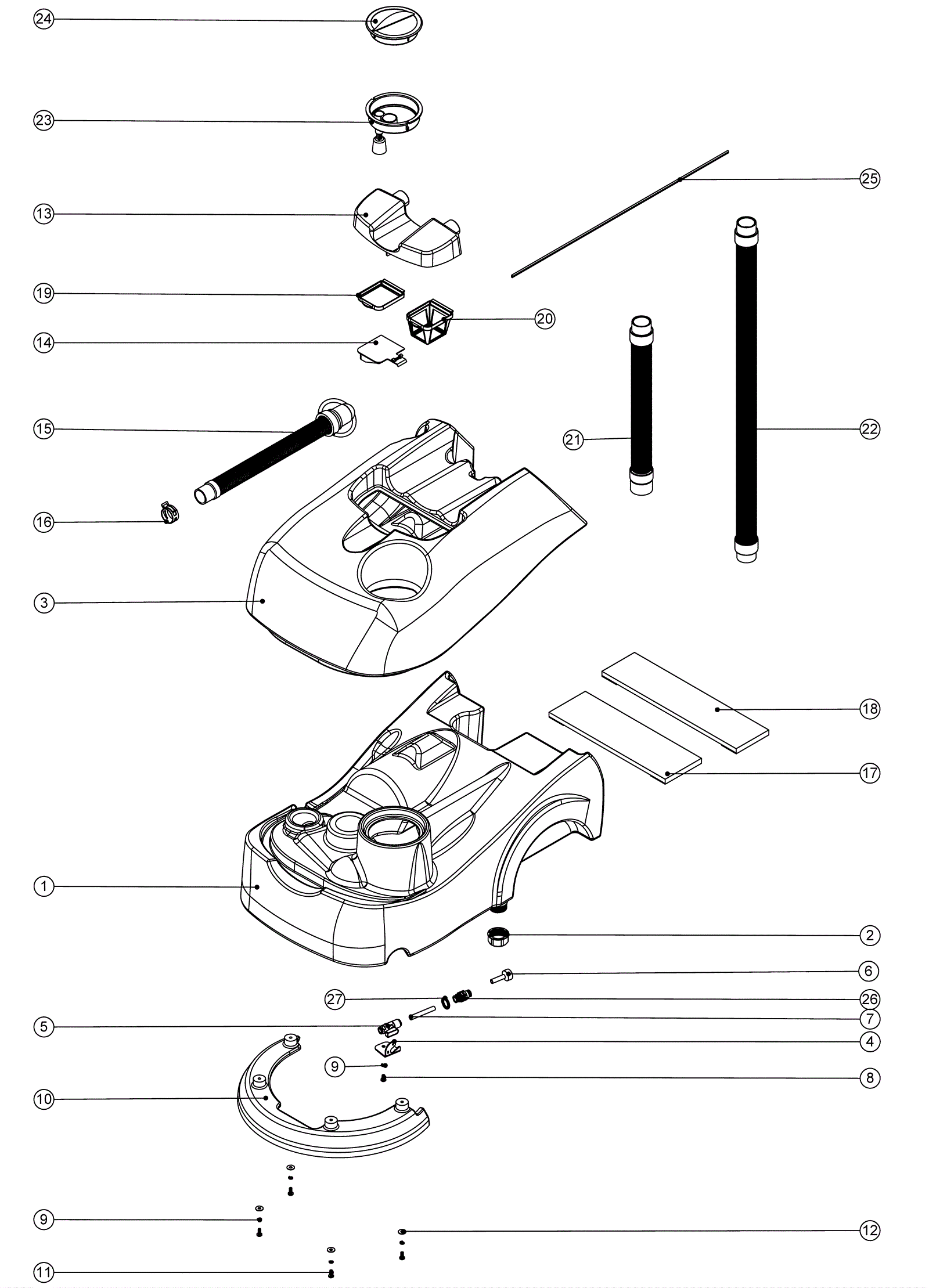

TTB516 Tank Assembly - For Models Starting with SN 1115

#PartDescriptionPriceReqNotesAvailability
2 193-0256 Tank drain cap kit $12.42 1 ships same day
3 193-0257 Collection tank Call for price 1 usually ships 1-5 days
4 193-0258 Tap plate $9.56 1 usually ships 1-5 days
5 193-0259 Mini ball valve $154.41 1 usually ships 1-5 days
6 193-0260 Tank filter assembly $38.08 1 usually ships 7-21 days
7 193-0261 Tank filter tube $80.22 1 usually ships 1-5 days
8 193-0198 Screw M5 x 10mm pan head stainless steel $2.87 1 usually ships 1-5 days
9 193-0262 Washer M5 single coil stainless steel $3.48 5 usually ships 1-5 days
10 193-0263 Deck moulding $75.04 1 usually ships 7-21 days
11 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel $0.99 4 ships same day
12 193-0264 Washer M5-G stainless steel $3.89 4 usually ships 7-21 days
13 193-0265 Separator moulding $20.12 1 usually ships 7-21 days
14 193-0266 Shut off flap $2.89 1 usually ships 7-21 days
15 193-0267 Dump hose assembly $88.11 1 usually ships 7-21 days
16 193-0268 Tension clip $7.70 1 usually ships 1-5 days
17 193-0269 Foam pad $9.26 1 usually ships 1-5 days
18 193-0270 Foam pad $9.85 1 usually ships 1-5 days
19 193-0271 Air filter panel $32.88 1 usually ships 7-21 days
20 193-0272 Grit basket $30.28 1 usually ships 7-21 days
21 193-0273 Vacuum hose with cuffs $65.51 1 usually ships 7-21 days
22 193-0274 Suction hose $80.17 1 usually ships 7-21 days
23 220-0305 Filler cap assembly $17.13 1 usually ships 7-21 days
24 193-0275 Filler cap lid $13.99 1 usually ships 7-21 days
25 193-0276 Seperator seal extrusion $14.40 1 usually ships 7-21 days
26 193-0277 Fitting 8mm push fit metal bulkhead $96.71 1 usually ships 1-5 days
27 193-0278 Bonded seal $2.85 1 usually ships 1-5 days
