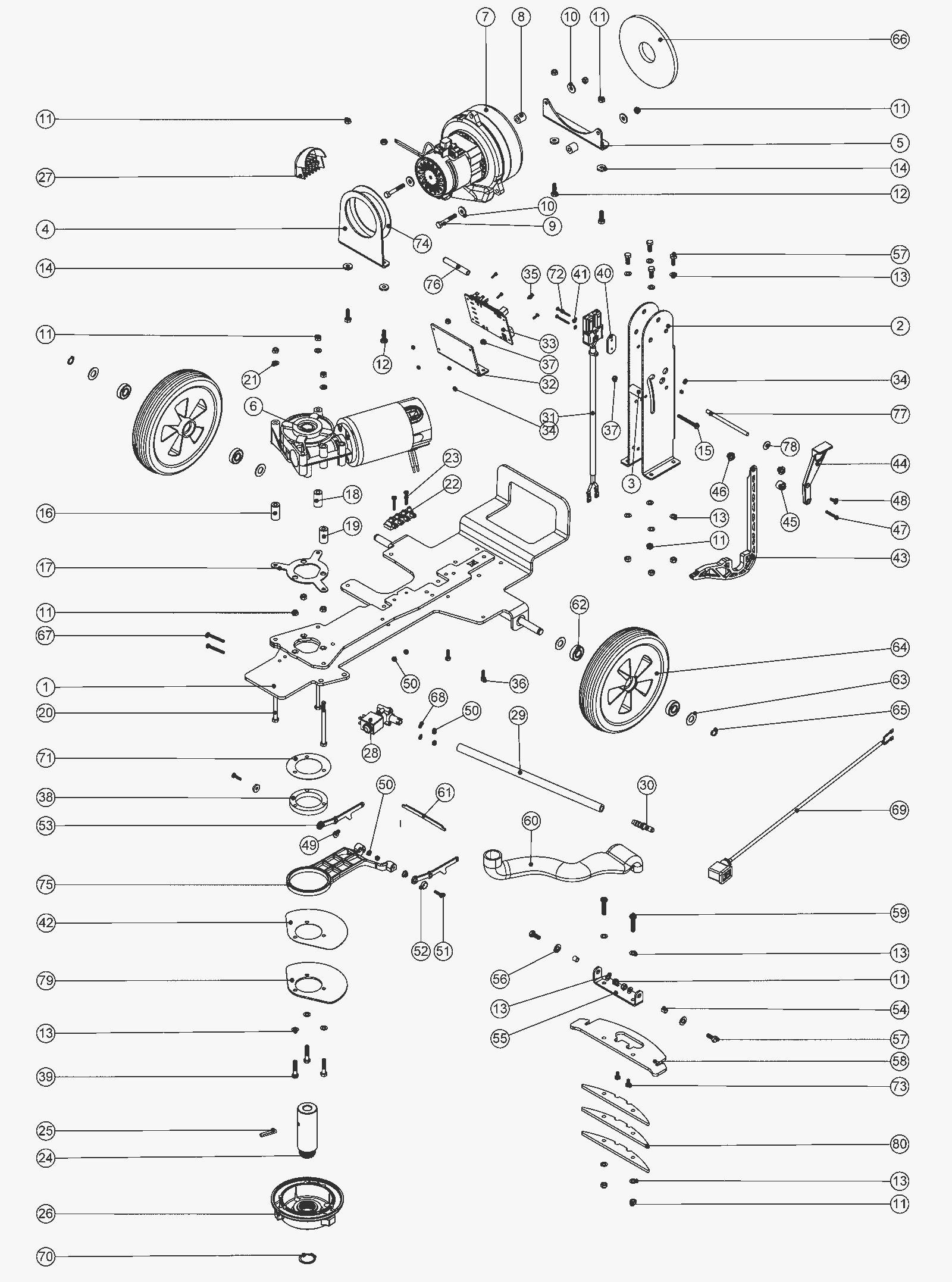

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
193-0138
|
Chassis weldment assembly |
1 |
|
|
2 |
193-0131
|
Handle mounting bracket |
1 |
|
|
3 |
193-0132
|
Handle spacer |
1 |
|
|
4 |
193-0133
|
Front motor plate |
1 |
|
|
5 |
193-0134
|
Rear vacuum motor plate |
1 |
|
|
6 |
193-0135
|
Brush drive motor and gearbox assembly |
1 |
|
|
7 |
193-0136
|
24V 2 stage vacuum motor |
1 |
|
|
8 |
193-0137
|
15mm spacer |
2 |
|
|
9 |
999-1147
|
Bolt M6-1 x 40mm hex head stainless steel |
2 |
|
|
10 |
220-0168
|
Washer |
4 |
|
|
11 |
193-0139
|
Nut M6 nylon insert stainless steel |
20 |
|
|
12 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
13 |
193-0141
|
Washer M6-B stainless steel |
17 |
|
|
14 |
193-0142
|
Rubber spacer |
4 |
|
|
15 |
193-0143
|
Bolt M5 x 45mm hex head stainless steel |
1 |
|
|
16 |
193-0144
|
30mm gearbox spacer |
1 |
|
|
17 |
193-0145
|
Nut retaining plate |
1 |
|
|
18 |
193-0146
|
29mm gearbox spacer |
1 |
|
|
19 |
193-0147
|
28mm gearbox spacer |
1 |
|
|
20 |
999-1609
|
Bolt M6-1 x 90mm hex head stainless steel |
3 |
|
|
21 |
193-0149
|
Washer M6-A stainless steel |
3 |
|
|
22 |
193-0150
|
Terminal block |
1 |
|
|
23 |
193-0151
|
Scrwe M4 x 20mm pan head |
2 |
|
|
24 |
193-0152
|
Drive shaft |
1 |
|
|
25 |
193-1380
|
6mm roll pin |
1 |
|
|
26 |
193-0153
|
Chuck |
1 |
|
|
27 |
193-0154
|
Vacuum diffuser |
1 |
|
|
28 |
220-0114
|
24V solenoid valve |
1 |
|
|
29 |
193-0155
|
Solenoid tube |
1 |
|
|
30 |
193-0156
|
Barbed connector |
1 |
|
|
31 |
193-0157
|
Connector assembly |
1 |
|
|
32 |
193-0158
|
Control board mounting plate |
1 |
|
|
33 |
220-1000
|
PCB control kit |
1 |
|
|
34 |
193-0160
|
Nut M3 nylon insert |
6 |
|
|
35 |
193-0161
|
Screw M3 x 10mm slotted |
4 |
|
|
36 |
999-1618
|
Bolt M5-.8 x 16mm hex head stainless steel |
2 |
|
|
37 |
193-0163
|
Nut M5 nylon insert stainless steel |
3 |
|
|
38 |
193-0164
|
Swing arm center pivot |
1 |
|
|
39 |
193-0165
|
Bolt M6 x 30mm hex head stainless steel |
3 |
|
|
40 |
193-0166
|
Connector back plate |
1 |
|
|
41 |
193-0167
|
Washer M3 |
2 |
|
|
42 |
193-0168
|
Swing arm nylon plate |
1 |
|
|
43 |
193-0169
|
Squeegee lift arm |
1 |
|
|
44 |
193-0170
|
Squeegee lift handle |
1 |
|
|
45 |
193-0171
|
Lift spacer |
1 |
|
|
46 |
193-0172
|
Screw end |
2 |
|
|
47 |
193-0173
|
Screw #6 x 1 inch pan head |
1 |
|
|
48 |
193-0174
|
Screw #6 x 1/2 inch |
1 |
|
|
49 |
193-0175
|
Pivot bush |
2 |
|
|
50 |
193-0176
|
Nut M4 nylon insert stainless steel |
6 |
|
|
51 |
193-0177
|
Screw M4 x 16mm pan head stainless steel |
2 |
|
|
52 |
193-0178
|
Screw insulator |
2 |
|
|
53 |
193-0179
|
Squeegee pivot arm |
2 |
|
|
54 |
193-0180
|
8mm spacer |
2 |
|
|
55 |
193-0181
|
Pipe connecting bracket |
1 |
|
|
56 |
193-0182
|
Washer M8-A stainless steel |
2 |
|
|
57 |
193-0183
|
Bolt M6 x 16mm hex head stainless steel |
6 |
|
|
58 |
193-0184
|
Squeegee skid plate |
1 |
|
|
59 |
193-0185
|
Screw M6 x 30mm pan head stainless steel |
2 |
|
|
60 |
193-0186
|
Fluid pipe |
1 |
|
|
61 |
193-0187
|
Squeegee lift plate |
1 |
|
|
62 |
193-0188
|
Stainless steel bearing |
4 |
|
|
63 |
193-0189
|
Wheel washer |
4 |
|
|
64 |
193-0190
|
Wheel assembly |
2 |
|
|
65 |
220-0243
|
12mm external circlip |
2 |
|
|
66 |
193-0192
|
Vacuum motor gasket |
1 |
|
|
67 |
193-0193
|
Screw M4 x 35mm pan head stainless steel |
2 |
|
|
68 |
193-0194
|
Washer M4-A stainless steel |
2 |
|
|
69 |
193-0195
|
Solenoid lead terminals |
1 |
|
|
70 |
220-0159
|
26mm external clip |
1 |
|
|
71 |
193-0196
|
Nylon disc |
1 |
|
|
72 |
193-0197
|
Screw M3 x 30mm pan head |
2 |
|
|
73 |
193-0198
|
Screw M5 x 10mm pan head stainless steel |
2 |
|
|
74 |
193-0199
|
Vacuum disc plate |
1 |
|
|
75 |
193-0200
|
Swing arm |
1 |
|
|
76 |
193-0201
|
Retaining bar cap |
1 |
|
|
77 |
193-0202
|
Hose retaining bar |
1 |
|
|
78 |
193-0087
|
Chrome cap |
1 |
|
|
79 |
193-0203
|
Swing arm bottom plate |
1 |
|
|
80 |
193-0204
|
Weight |
3 |
|
|
