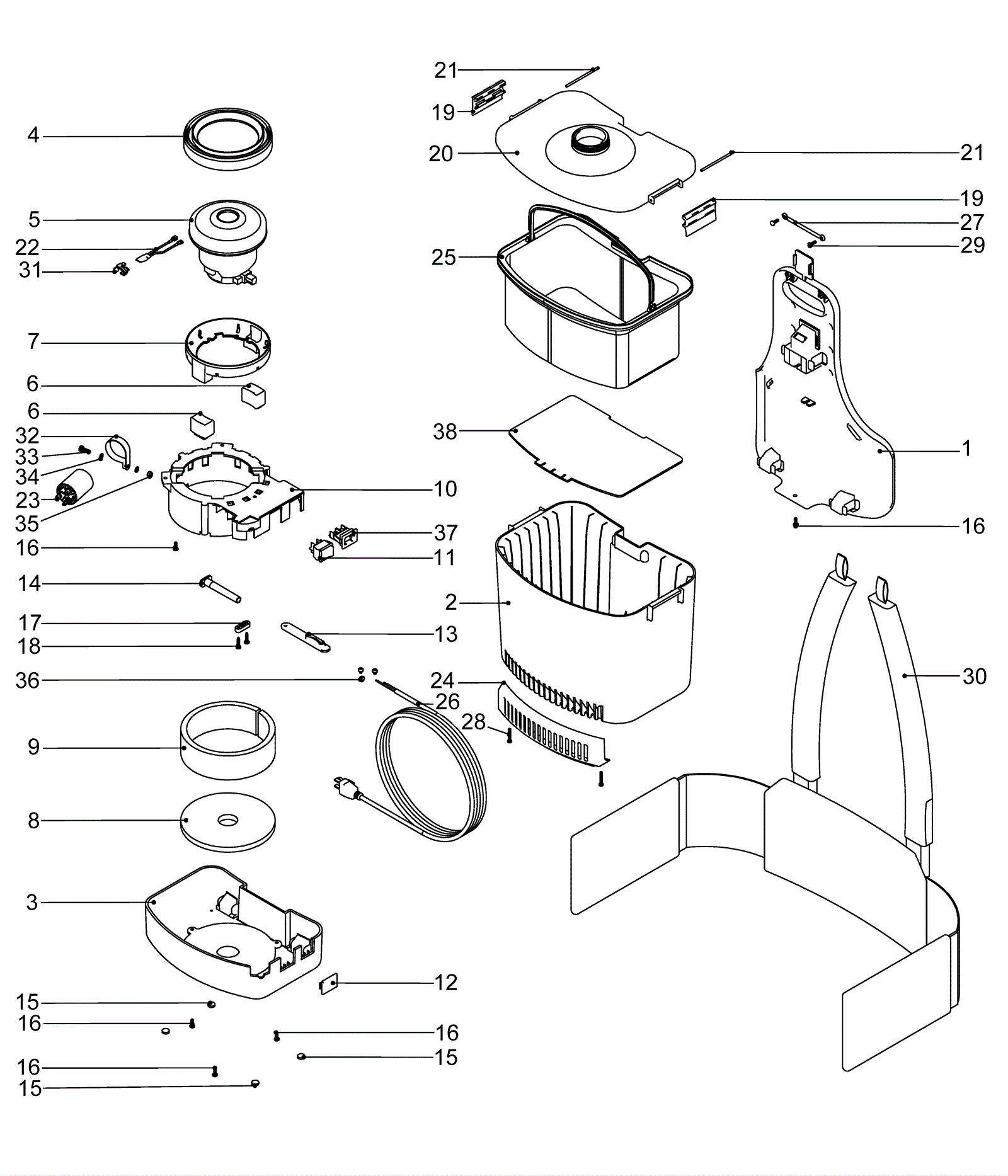

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
193-0096
|
Support molding (black) |
|
|
|
2 |
193-0097
|
Body molding (gray) |
|
|
|
3 |
193-0098
|
Base molding |
|
|
|
4 |
193-0061
|
Bottom motor gasket |
|
|
|
5 |
N/A
|
Not available |
|
(120V motor) |
|
6 |
193-0099
|
Top mounting rubber |
|
|
|
7 |
193-0100
|
Motor spacer |
|
|
|
8 |
193-0101
|
Top felt |
|
|
|
9 |
193-0102
|
Side felt |
|
|
|
10 |
193-0103
|
Motor housing |
|
|
|
11 |
193-0011
|
38 |
|
|
|
12 |
193-0104
|
Plate |
|
|
|
13 |
193-0105
|
Strain relief |
|
|
|
14 |
193-0106
|
Stress relief |
|
|
|
15 |
N/A
|
Not available |
|
(Rubber foot) |
|
16 |
193-0107
|
Screw 8 x 1/2 plastite |
|
|
|
17 |
193-0108
|
Cable clamp |
|
|
|
18 |
193-0028
|
Plastic screw |
|
|
|
19 |
220-0111
|
Latch |
|
|
|
20 |
250-1157
|
Black plastic lid |
|
|
|
21 |
220-0112
|
Latch pin |
|
|
|
22 |
193-0109
|
Overload assembly |
|
|
|
23 |
193-0110
|
10amp suppressor |
|
|
|
24 |
193-0111
|
Diffuser molding |
|
|
|
25 |
N/A
|
Not available |
|
(Filter assembly) |
|
26 |
193-0112
|
Powercord (yellow) |
|
|
|
27 |
193-0113
|
Harness pin |
|
|
|
28 |
193-0114
|
Screw 6 x 1 plastite |
|
|
|
29 |
193-0115
|
Screw 8 x 3/8 |
|
|
|
30 |
193-0026
|
Waist belt with shoulder straps |
|
|
|
31 |
193-0118
|
Overload clip |
|
(use for 193-0109) |
|
32 |
N/A
|
Not available |
|
(P-clamp) |
|
33 |
220-0115
|
Screw |
|
|
|
34 |
193-0116
|
Washer M5 stainless steel |
|
|
|
35 |
193-0066
|
Nut self locking |
|
|
|
36 |
193-0031
|
Screw M4 x 8mm SEMS |
|
|
|
37 |
193-0027
|
Power nozzle plug |
|
|
|
38 |
193-0117
|
Air inlet cover (bagless) |
|
|
|
