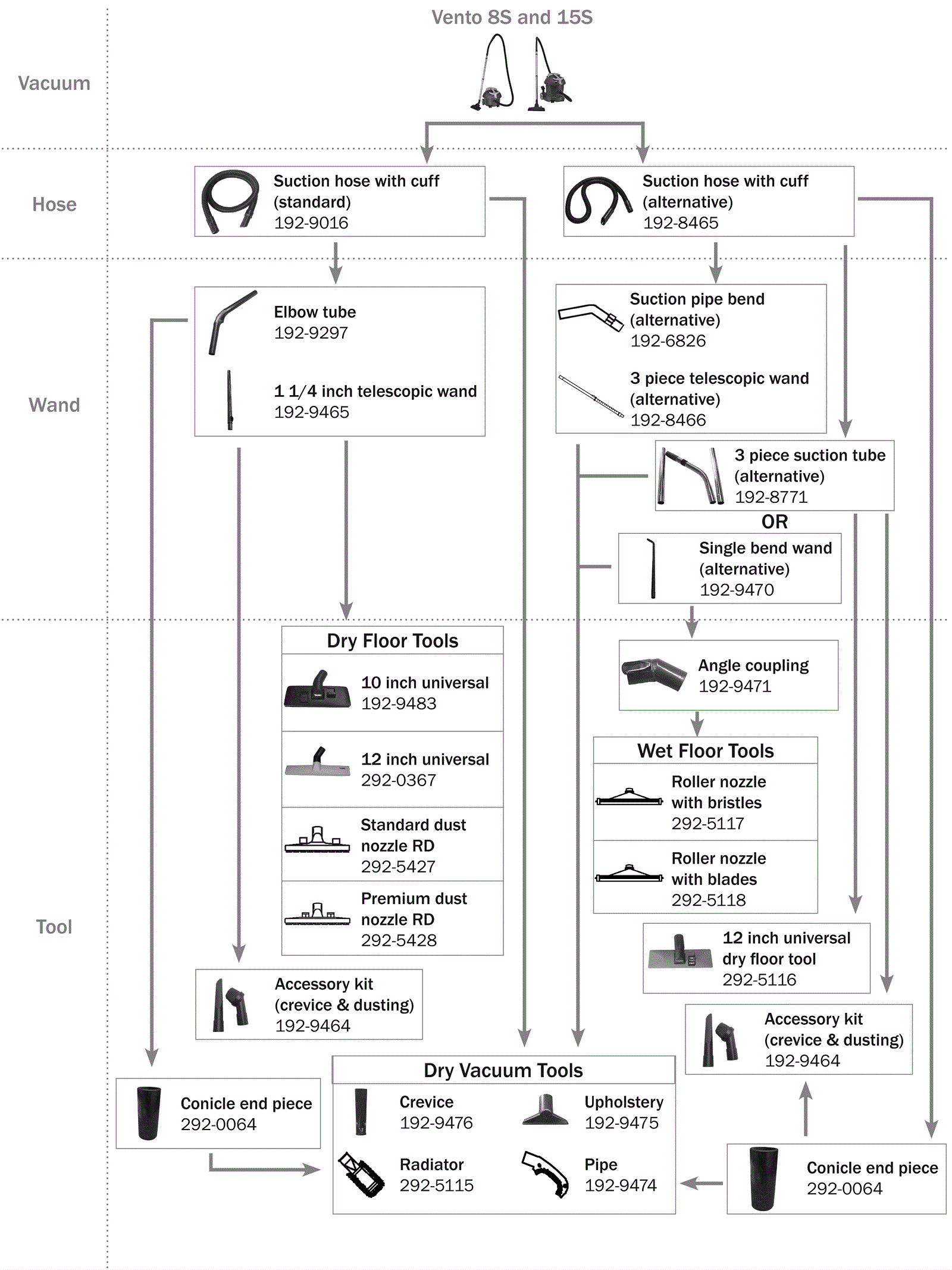

| # | Part | Description |
Req | Notes | Availability |
1 |
192-9016
|
1 1/4 inch suction hose with cuff |
1 |
|
|
2 |
192-8465
|
1 1/2 inch suction hose with cuff |
1 |
|
|
4 |
192-9297
|
Elbow tube |
1 |
|
|
5 |
192-9465
|
1 1/4 inch telescopic wand (OBSOLETE) |
1 |
|
|
6 |
192-6826
|
Suction pipe bend |
1 |
|
|
7 |
192-8466
|
3 piece telescopic wand |
1 |
|
|
8 |
192-8771
|
3 piece suction tube |
1 |
|
|
9 |
192-9470
|
Single bend wand |
1 |
|
|
10 |
192-9483
|
10 inch universal floor tool |
1 |
|
|
11 |
292-0367
|
12 inch universal floor tool with 32mm neck (orange) |
1 |
|
|
12 |
292-5427
|
Standard dust nozzle RD |
1 |
|
|
13 |
292-5428
|
Premium dust nozzle RD |
1 |
|
|
14 |
292-4665
|
Crevice and dusting brush |
1 |
|
|
15 |
292-0064
|
Conical end piece 32mm/38mm |
1 |
|
|
16 |
192-9471
|
Angle coupling |
1 |
|
|
17 |
292-5117
|
Roller nozzle with bristles |
1 |
|
|
18 |
292-5118
|
Roller nozzle with blades |
1 |
|
|
19a |
292-5116
|
12 inch universal floor tool with 38mm neck |
1 |
|
|
19b |
292-8467
|
12 inch universal floor tool with 38mm neck (orange) |
1 |
|
|
20 |
192-9476
|
Crevice nozzle (OBSOLETE) |
1 |
|
|
21 |
192-9475
|
Upholstery nozzle |
1 |
|
|
22 |
292-5115
|
Radiator nozzle |
1 |
|
|
23 |
192-9474
|
Pipe nozzle |
1 |
|
|
