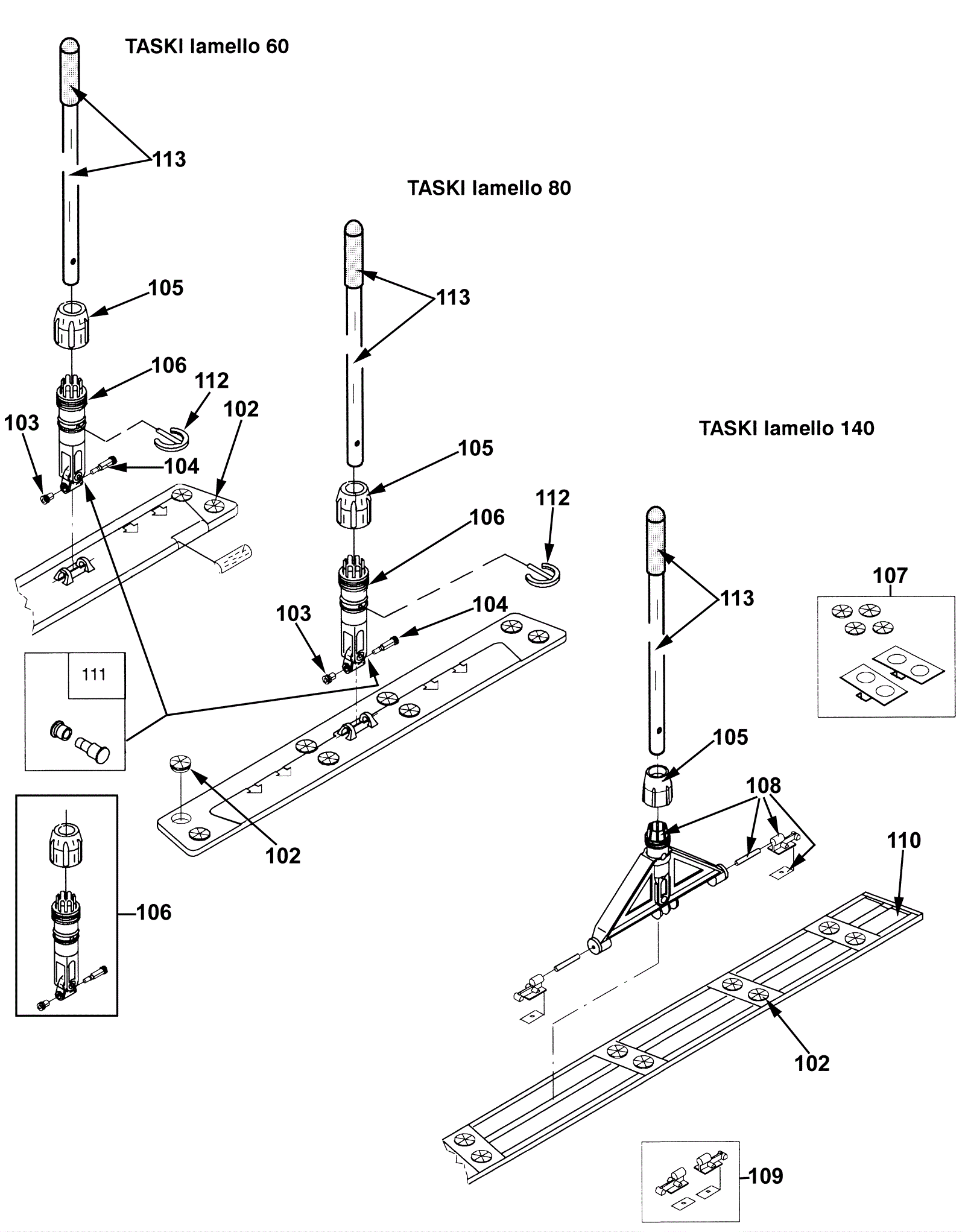

LAMELLO 140 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-7363 Pad $8.69 2 usually ships 30-75 days
102 192-6371 Quick Snap Set (qty 20) $30.65 1 usually ships 1-5 days
103 192-4817 Locking bolt $2.44 1 usually ships 1-5 days
104 192-4049 Goudgeon of articulation $2.44 1 usually ships 1-5 days
105 192-7210 Nut union $5.59 1 usually ships 1-5 days
106 192-1719 Articulation $26.20 1 usually ships 1-5 days
106 192-1719 Articulation $26.20 1 usually ships 1-5 days
107 192-5905 Quick snap set lamello 140 $18.00 1 usually ships 30-75 days
108 192-1724 Articulation set $121.46 1 usually ships 30-75 days
109 192-6886 Support set $44.18 1 usually ships 1-5 days
110 192-5743 Protecting profile 2 parts $10.77 1 usually ships 1-5 days
111 192-2101 Bolt (set of 2) $2.44 1 usually ships 1-5 days
112 192-2842 Clip set 10 pieces $14.41 1 usually ships 1-5 days
113a 192-7389 Handle $28.11 1 usually ships 30-75 days
113b 192-7441 Vario handle Call for price 1 usually ships 1-5 days
