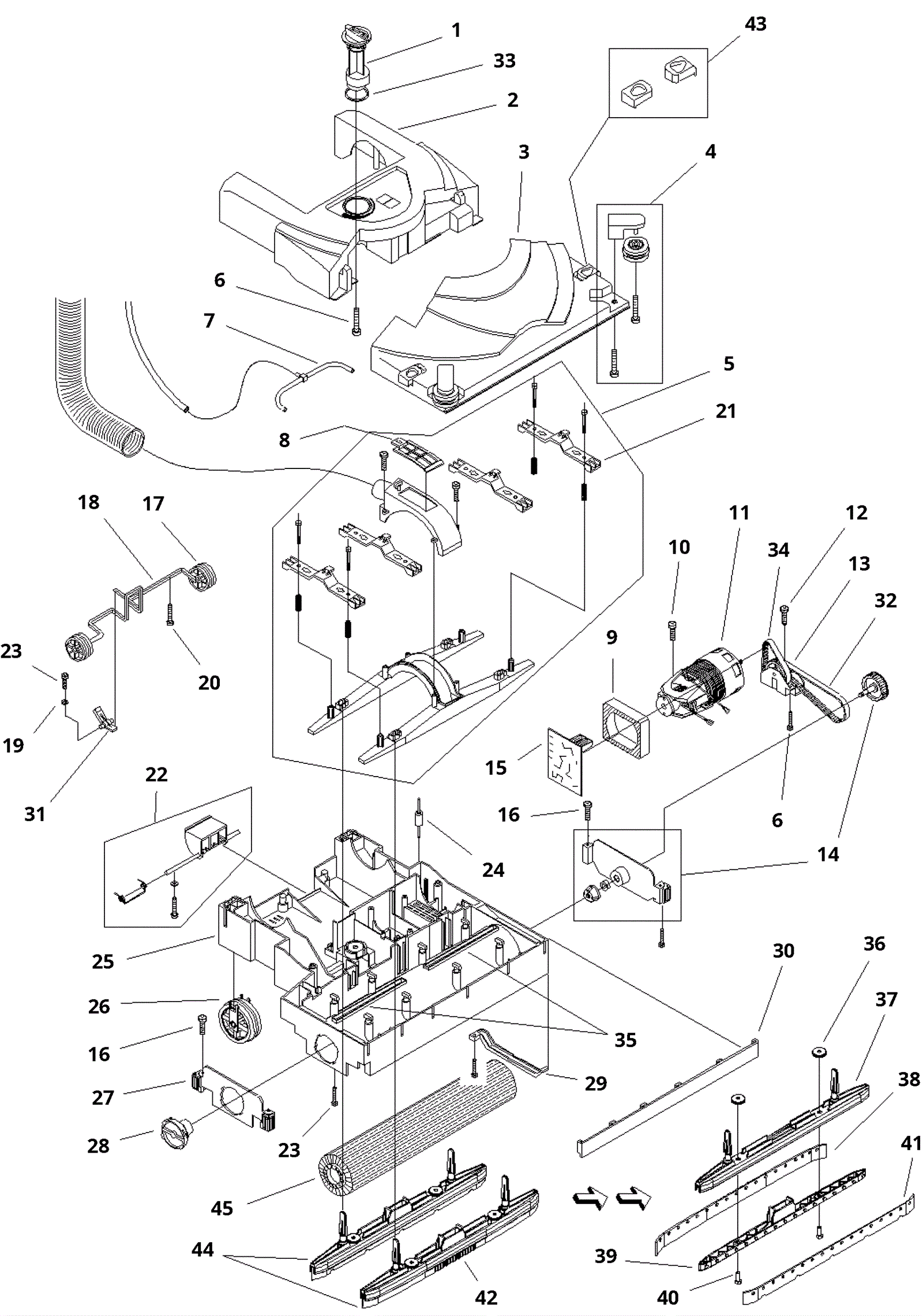

SWINGO 150B Power Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-9904 Adjusting knob $19.31 1 usually ships 17-21 days
2 192-9905 Brush housing $56.62 1 ships same day
3 192-9906 Brush housing cover $59.82 1 usually ships 17-21 days
4 192-9907 Guide wheel kit $25.77 2 usually ships 17-21 days
5 192-9908 Bracket kit $202.31 1 (includes 8, 21) usually ships 17-21 days
6 192-1595 Screw M40 x 16mm torx head $2.56 2 ships same day
7 192-9909 Tubing kit $21.36 1 usually ships 17-21 days
8 192-9910 Suction cover $5.08 1 usually ships 17-21 days
9 192-3626 Filter $6.28 1 ships same day
10 192-6286 Screw KA 40 x 18 $2.56 3 usually ships 17-21 days
11 292-8591 36V 150W brush motor $321.72 1 usually ships 17-21 days
12 192-6285 Screw KA 40 x 16 $2.56 2 usually ships 1-5 days
13 192-9912 Belt support $126.80 1 usually ships 17-21 days
14 192-9913 Transmission support $73.54 1 usually ships 17-21 days
15 292-8592 Electronic board $308.79 1 usually ships 17-21 days
16 192-5442 Screw 3 1/2 x 13 pan head tapping $2.70 4 ships same day
17 192-9915 Wheel $6.92 2 usually ships 17-21 days
18 192-9916 Axle $85.21 1 usually ships 17-21 days
19 192-0149 Washer $2.56 1 ships same day
20 192-1571 Screw M50 x 16mm $2.56 3 ships same day
21 192-9917 Bracket $20.33 4 usually ships 1-5 days
22 192-9918 Foot pedal $38.53 1 usually ships 17-21 days
23 192-0548 Screw KA 35 x 10 $2.56 9 ships same day
24 192-9919 Bushing $8.84 1 usually ships 1-5 days
25 192-9920 Brush housing $138.59 1 ships same day
26 192-9921 Rear wheel $31.92 2 usually ships 17-21 days
27 192-9922 Bracket $27.05 1 usually ships 17-21 days
28 192-9923 Brush bearing $41.54 1 ships same day
29 192-9924 Belt cover $7.65 1 usually ships 17-21 days
30 192-9925 Front bumper $18.80 1 usually ships 17-21 days
31 192-9927 Base lifting lever $19.31 1 usually ships 17-21 days
32 192-9928 Belt (long) $44.62 1 usually ships 17-21 days
33 192-9931 O-ring $2.56 1 usually ships 17-21 days
34 192-9932 Belt (short) $41.54 1 usually ships 17-21 days
35 192-9933 Water channels (pkg of 2) $19.44 1 usually ships 17-21 days
36 192-4682 Nut M5 knurled $5.01 4 usually ships 17-21 days
37 292-0057 Squeegee retainer $18.59 2 usually ships 17-21 days
38 292-0056 Squeegee blade rear un-notched (white) $24.10 2 ships same day
39 292-0058 Squeegee weldment $6.74 2 usually ships 17-21 days
40 192-4221 Screw M5 x 14mm hex head $2.56 4 usually ships 17-21 days
41 292-0059 Squeegee blade front notched (clear) $27.69 2 ships same day
42 292-8583 Squeegee assembly $97.94 2 usually ships 17-21 days
43 292-8584 Latch $15.26 1 ships same day
44 192-9926 Squeegee kit $136.53 1 ships same day
45a 192-9929 13 inch brush assembly (black) - CYLINDRICAL $226.13 1 ships same day
45b 192-9930 13 inch hard brush assembly (red) - CYLINDRICAL (OBSOLETE) $184.67 1 usually ships 17-21 days
45c 292-5156 13 inch active fiber pad roll $226.13 1 usually ships 17-21 days
