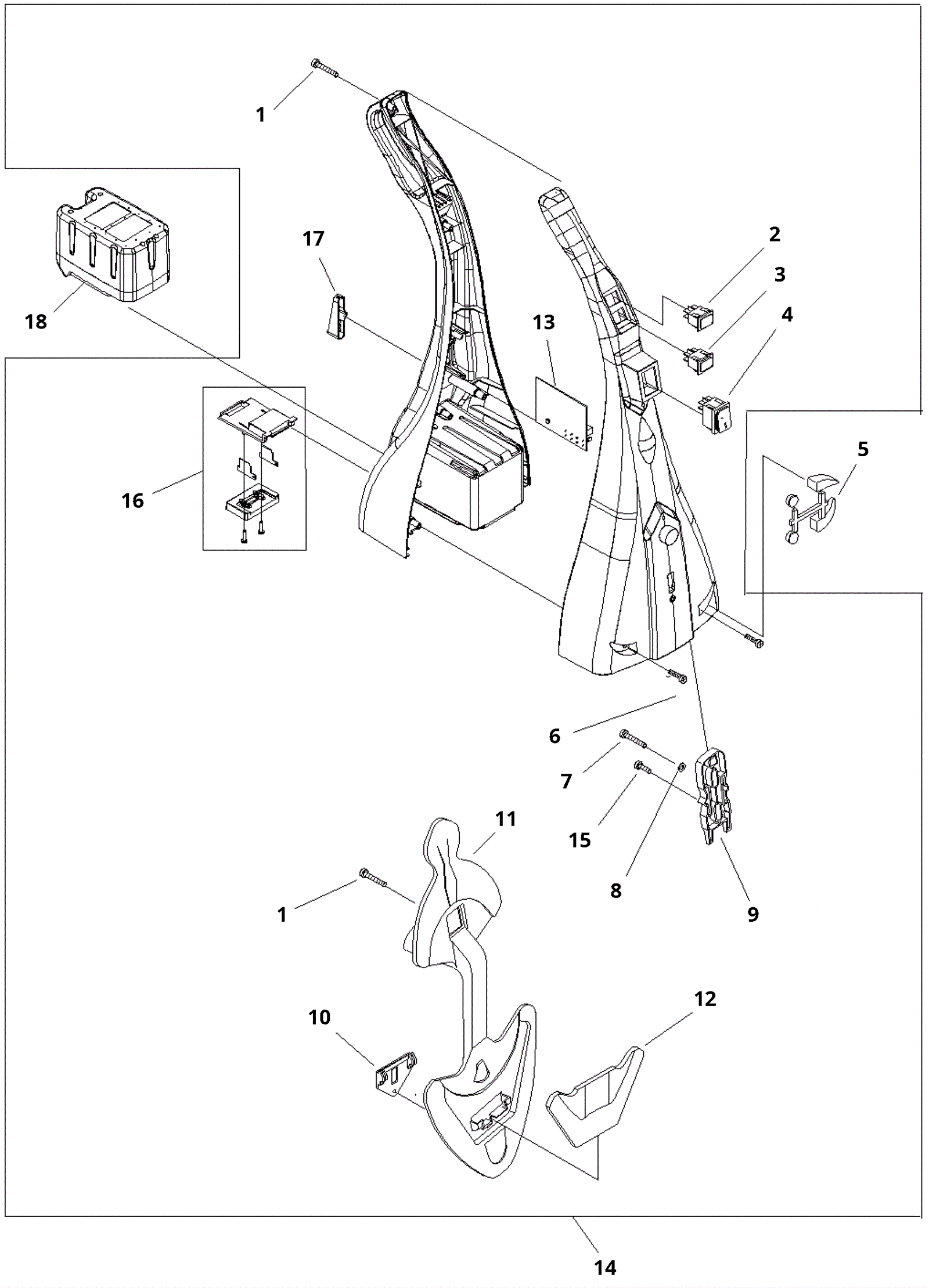

SWINGO 150B Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-6281 Screw KA 40 x 35 $5.98 7 usually ships 24-40 days
2 292-8585 Pressure switch $51.16 1 usually ships 24-40 days
3 192-9860 Vacuum motor switch $29.43 1 usually ships 24-40 days
4 192-9861 Main switch $29.43 1 usually ships 24-40 days
5 192-9862 Bushing $19.36 1 usually ships 24-40 days
6 192-5931 Screw M6 x 12mm truss head phillips $2.44 4 ships same day
7 228-2828 Single screw 4 x 45 hilo Call for price 1 usually ships 9-12 days
8 192-0149 Washer $2.44 3 ships same day
9 192-9863 Quick snap plug $31.38 1 usually ships 24-40 days
10 192-9864 Clamp clip $19.36 1 usually ships 24-40 days
11 192-9865 Front handle $96.10 1 usually ships 24-40 days
12 192-9866 Front hook $37.68 1 usually ships 24-40 days
13 292-8586 Electronic board $223.08 1 usually ships 24-40 days
14 292-8587 Handle assembly $491.74 1 (includes 1-4, 6-13, 15-17) usually ships 24-40 days
15 192-8250 Screw M3-.9 x 13mm pan head tapping $2.44 1 ships same day
16 292-8588 Support assembly $44.40 1 usually ships 24-40 days
17 292-8589 Cover $6.84 1 usually ships 24-40 days
18 292-8581 36V 6Ah Li-ion battery $1,013.43 1 ships same day
