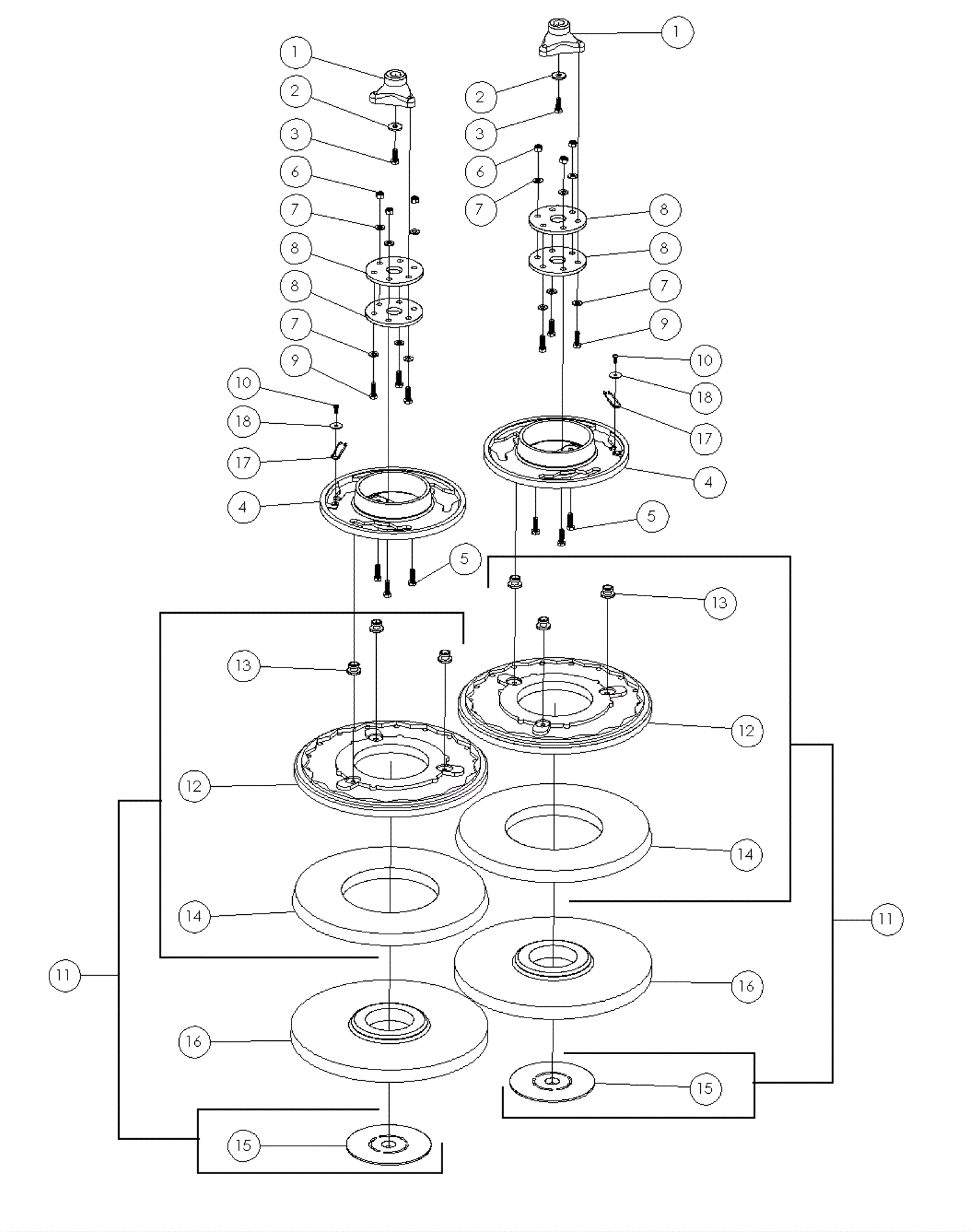

SWINGOBOT 1650 Srub Head Assembly - Drawing 2

#PartDescriptionPriceReqNotesAvailability
1 292-4203 Drive hub $176.53 2 usually ships 30-75 days
2 N/A Not available Call for price 2 (flat washer) usually ships 3-26 days
3 N/A Not available Call for price 2 (hex bolt) usually ships 3-26 days
4 292-4204 Brush holder $197.20 2 usually ships 30-75 days
5 N/A Not available Call for price 6 (hex bolt) usually ships 3-26 days
6 292-4205 Nut $2.44 6 usually ships 30-75 days
7 N/A Not available Call for price 12 (flat washer) usually ships 3-26 days
8 292-4206 Thermoid disk $34.67 4 usually ships 30-75 days
9 N/A Not available Call for price 6 (hex bolt) usually ships 3-26 days
10 N/A Not available Call for price 2 (screw) usually ships 3-26 days
16 292-4208 Pad (red) $56.61 2 usually ships 30-75 days
17 292-4209 Retainer clip $43.98 4 usually ships 30-75 days
18 N/A Not available Call for price 2 (flat washer) usually ships 3-26 days
