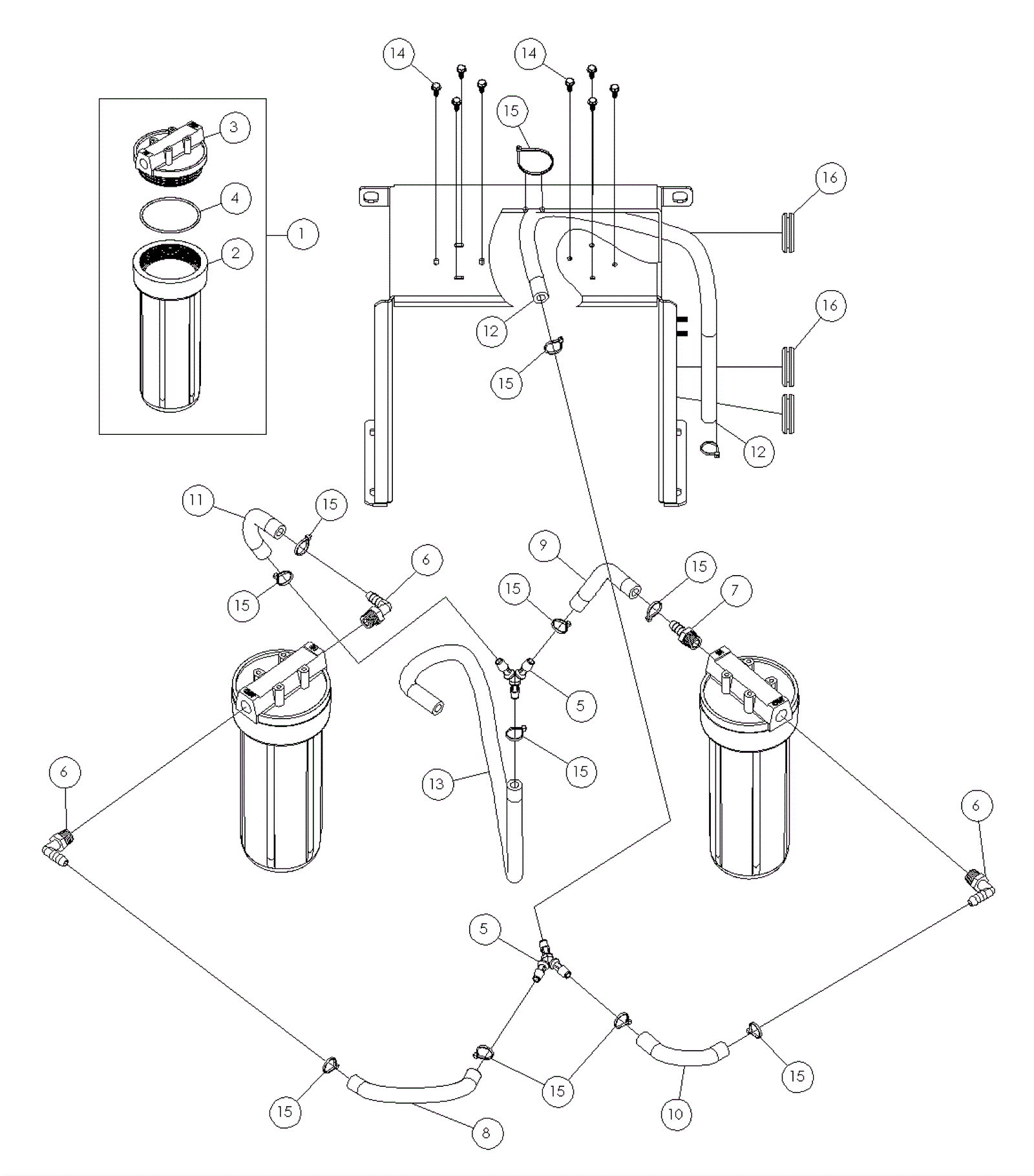

SWINGOBOT 1650 Rear Filter Assembly - Filters and (Parallel)Hose Routing

#PartDescriptionPriceReqNotesAvailability
2 N/A Not available Call for price 2 (filter housing) usually ships 3-26 days
4 292-4045 O-ring $16.14 2 usually ships 30-75 days
5 292-4141 Fitting $8.87 2 usually ships 30-75 days
6 292-4142 Barbed fitting $5.76 3 usually ships 30-75 days
7 292-4143 Barbed fitting $3.98 1 usually ships 30-75 days
8 292-8628 Pressure hose (sold by the foot) $8.25 1 (cut to 7 inches) usually ships 30-75 days
9 292-8628 Pressure hose (sold by the foot) $8.25 1 (cut to 10 inches) usually ships 30-75 days
10 292-8628 Pressure hose (sold by the foot) $8.25 1 (cut to 4 inches) usually ships 30-75 days
11 292-8628 Pressure hose (sold by the foot) $8.25 1 (cut to 8 inches) usually ships 30-75 days
12 292-8628 Pressure hose (sold by the foot) $8.25 2 (cut to 23 inches) usually ships 30-75 days
13 292-8628 Pressure hose (sold by the foot) $8.25 3 (cut to 32 inches) usually ships 30-75 days
14 N/A Not available Call for price 8 (screw) usually ships 3-26 days
15 N/A Not available Call for price 12 (8inch cable tie) usually ships 3-26 days
16 292-4068 Grommet $9.75 3 usually ships 30-75 days
