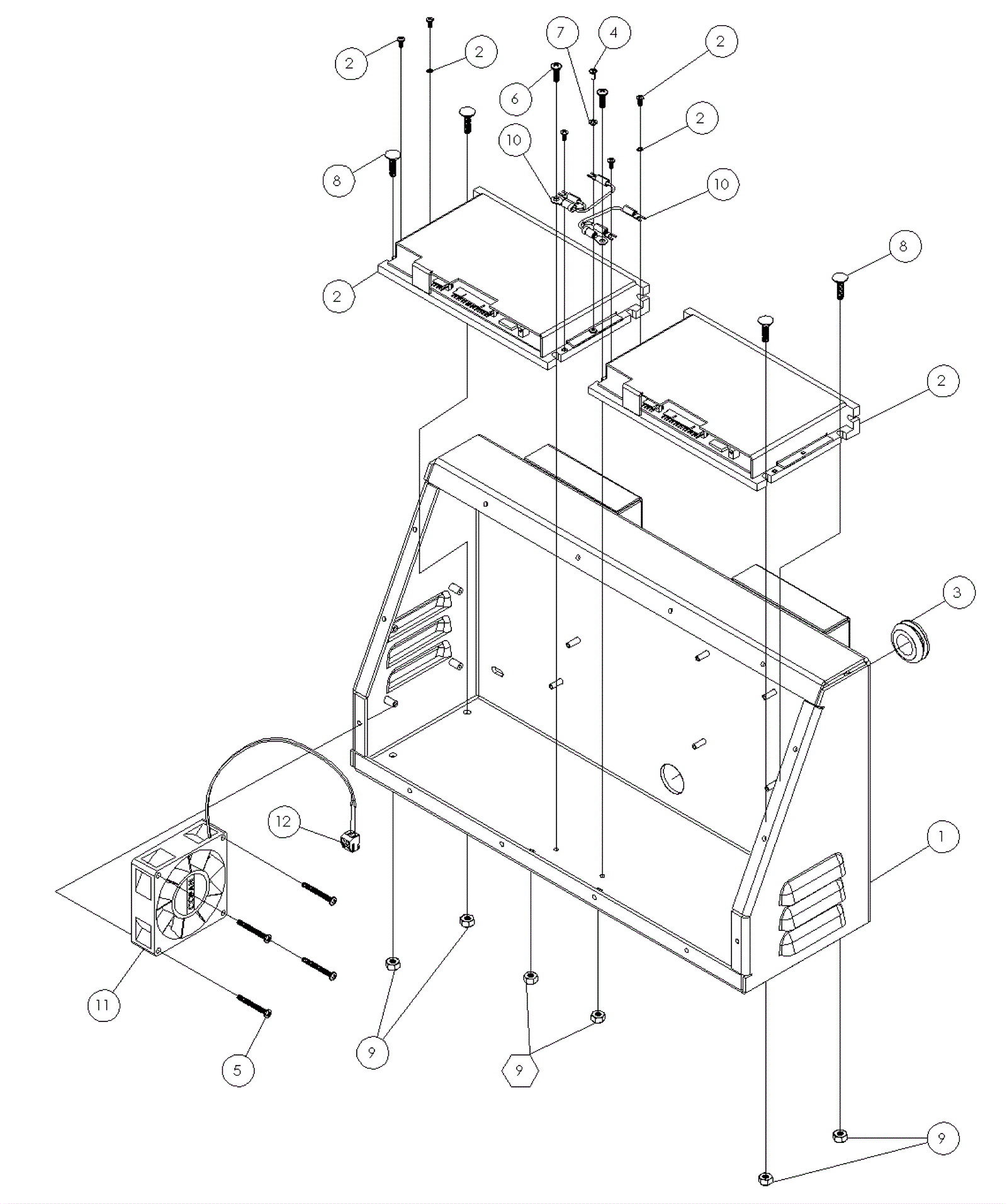

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
Call for price
|
1 |
(electrical enclosure weldment) |
usually ships 3-26 days |
2 |
292-4069
|
Drive amplifier board |
$3,574.11
|
2 |
|
usually ships 30-75 days |
3 |
292-4070
|
Grommet |
$2.74
|
1 |
|
usually ships 30-75 days |
4 |
N/A
|
Not available |
Call for price
|
2 |
(screw) |
usually ships 3-26 days |
5 |
N/A
|
Not available |
Call for price
|
4 |
(screw) |
usually ships 3-26 days |
6 |
N/A
|
Not available |
Call for price
|
2 |
(screw) |
usually ships 3-26 days |
7 |
N/A
|
Not available |
Call for price
|
1 |
(lock spring washer) |
usually ships 3-26 days |
8 |
N/A
|
Not available |
Call for price
|
4 |
(square shoulder screw carriage) |
usually ships 3-26 days |
9 |
N/A
|
Not available |
Call for price
|
6 |
(nut nylon insert) |
usually ships 3-26 days |
10 |
292-4071
|
Drive amp ground wire harness |
$36.75
|
2 |
|
usually ships 30-75 days |
11 |
292-4072
|
24V CFM fan cooling |
$74.31
|
1 |
|
usually ships 30-75 days |
12 |
292-4058
|
Connector |
$6.06
|
1 |
|
usually ships 30-75 days |
