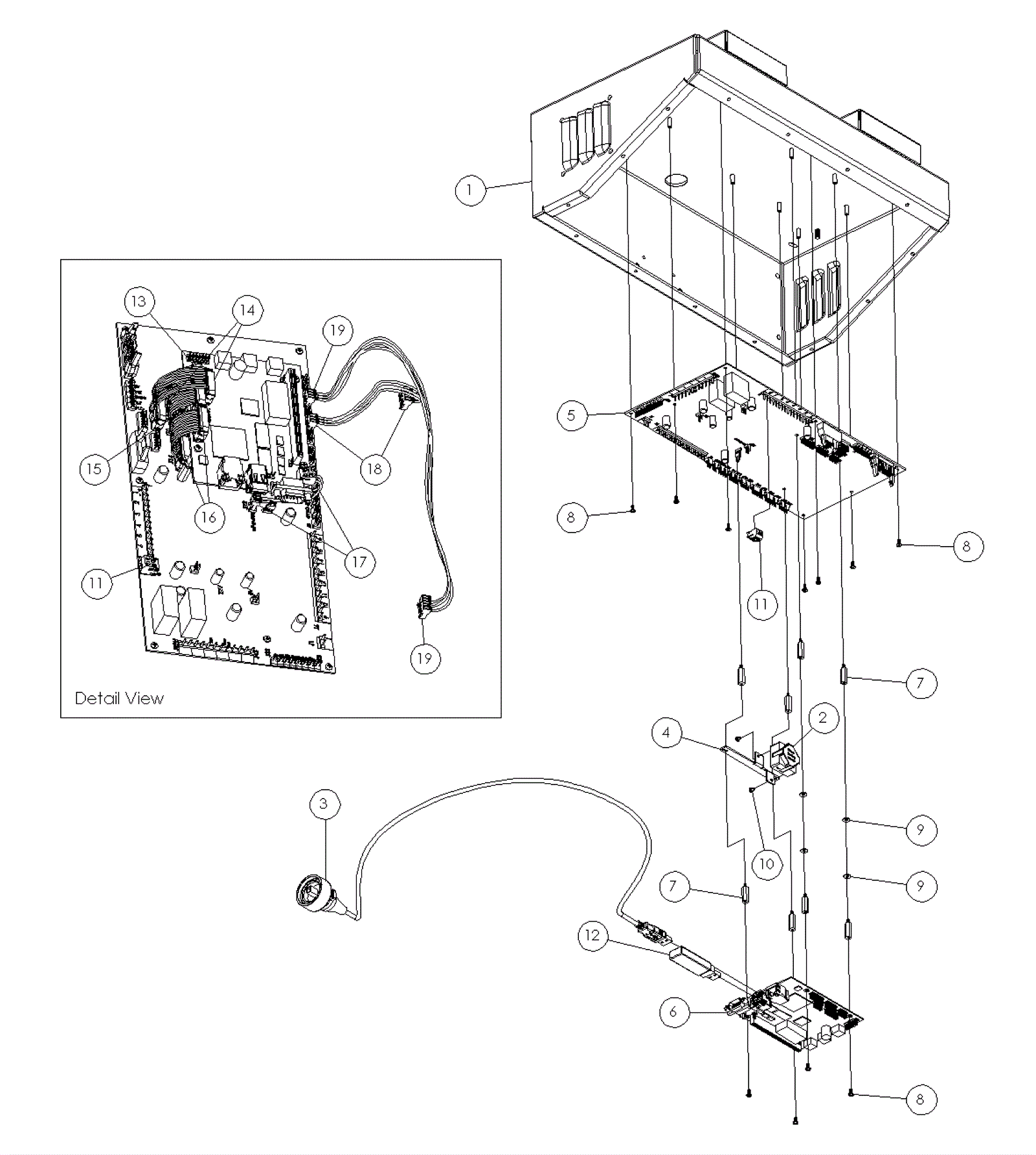

SWINGOBOT 1650 Electrical Enclosure Assembly - Drawing 1

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (electrical enclosure weldment) usually ships 3-26 days
2 292-4052 Gyro $703.37 1 usually ships 30-75 days
3 292-4053 Cable $82.73 1 usually ships 30-75 days
4 292-4054 Gyro mount bracket $61.31 1 usually ships 30-75 days
5 292-4055 Board $3,017.49 1 usually ships 30-75 days
6 292-4056 SBC board $1,289.57 1 usually ships 30-75 days
7 292-4057 Standoff male/female 3/4 inch x 1/4 inch $9.16 8 usually ships 30-75 days
8 N/A Not available Call for price 11 (screw) usually ships 3-26 days
9 N/A Not available Call for price 4 (flat washer) usually ships 3-26 days
10 N/A Not available Call for price 2 (screw) usually ships 3-26 days
11 292-4058 Connector $6.06 1 usually ships 30-75 days
12 292-4059 Flash drive $57.71 1 usually ships 30-75 days
13 292-4060 Wire harness $41.71 1 usually ships 30-75 days
14 292-4061 Wire harness $60.73 1 usually ships 30-75 days
15 292-4062 Wire harness $65.11 1 usually ships 30-75 days
16 292-4063 Wire harness $60.51 1 usually ships 30-75 days
17 292-4064 Wire harness - processor power $130.11 1 usually ships 30-75 days
18 292-4065 Left drive amp $45.84 1 usually ships 30-75 days
19 292-4066 Right drive amp $48.50 1 usually ships 30-75 days
