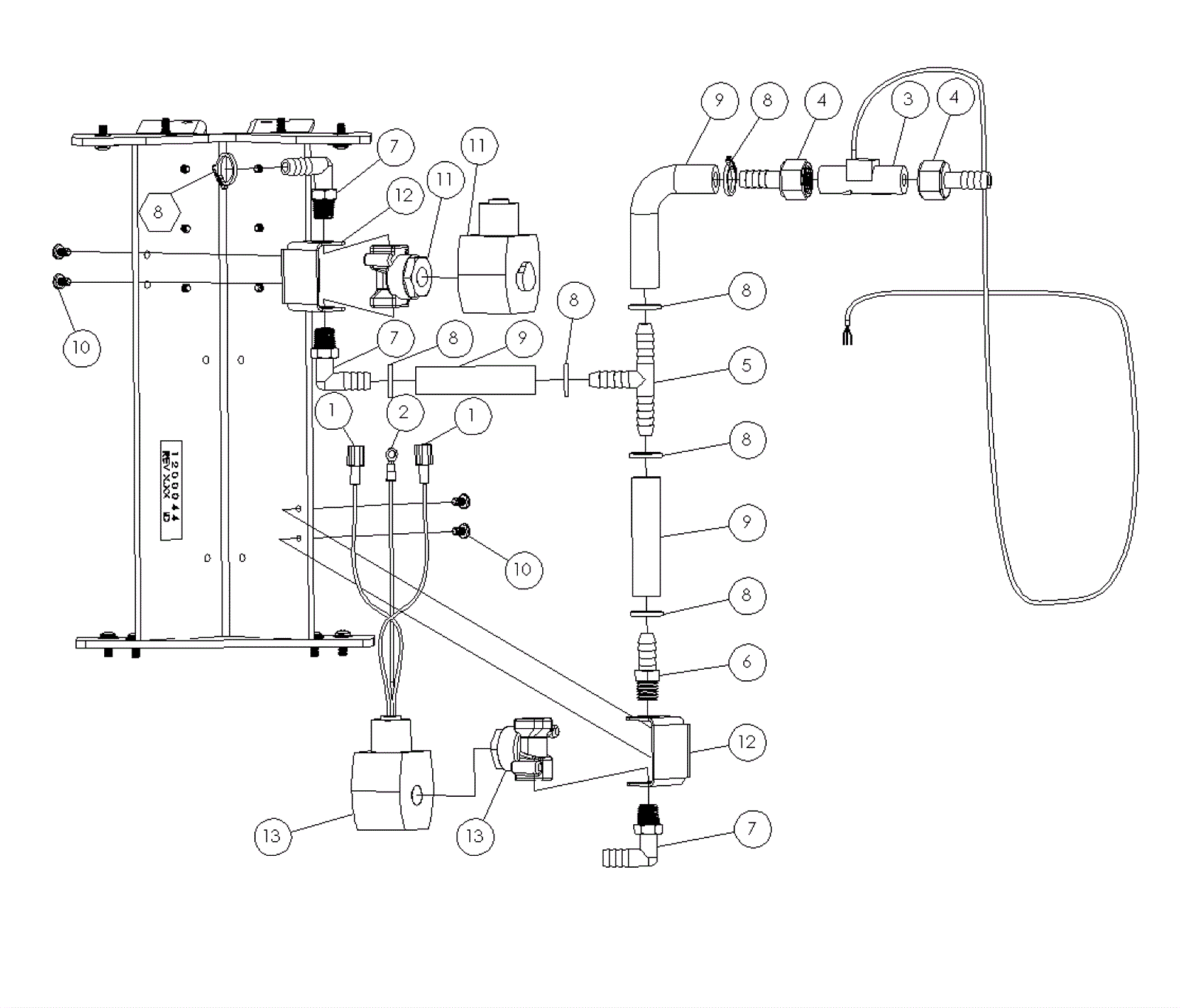

SWINGOBOT 1650 Solenoid Tower Drawing 2 with Components Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 4 (connector) usually ships 3-26 days
2 N/A Not available Call for price 2 (insulated terminal ring) usually ships 3-26 days
3 292-0486 Sensor $637.12 1 usually ships 30-75 days
4 292-8624 Fitting $4.42 2 usually ships 30-75 days
5 292-8625 3/8 inch nylon fitting $66.72 1 usually ships 30-75 days
6 292-8626 1/4 inch barbed fitting $3.84 1 usually ships 30-75 days
7 292-8627 Barbed fitting $4.71 3 usually ships 30-75 days
8 N/A Not available Call for price 7 (clamp) usually ships 3-26 days
9 292-8628 Pressure hose (sold by the foot) $8.25 3 usually ships 30-75 days
10 N/A Not available Call for price 4 (screw) usually ships 3-26 days
11 292-8629 Water solenoid $574.73 1 usually ships 30-75 days
12 292-8630 Water solenoid bracket (short) $57.63 2 usually ships 30-75 days
13 292-8629 Water solenoid $574.73 1 usually ships 30-75 days
