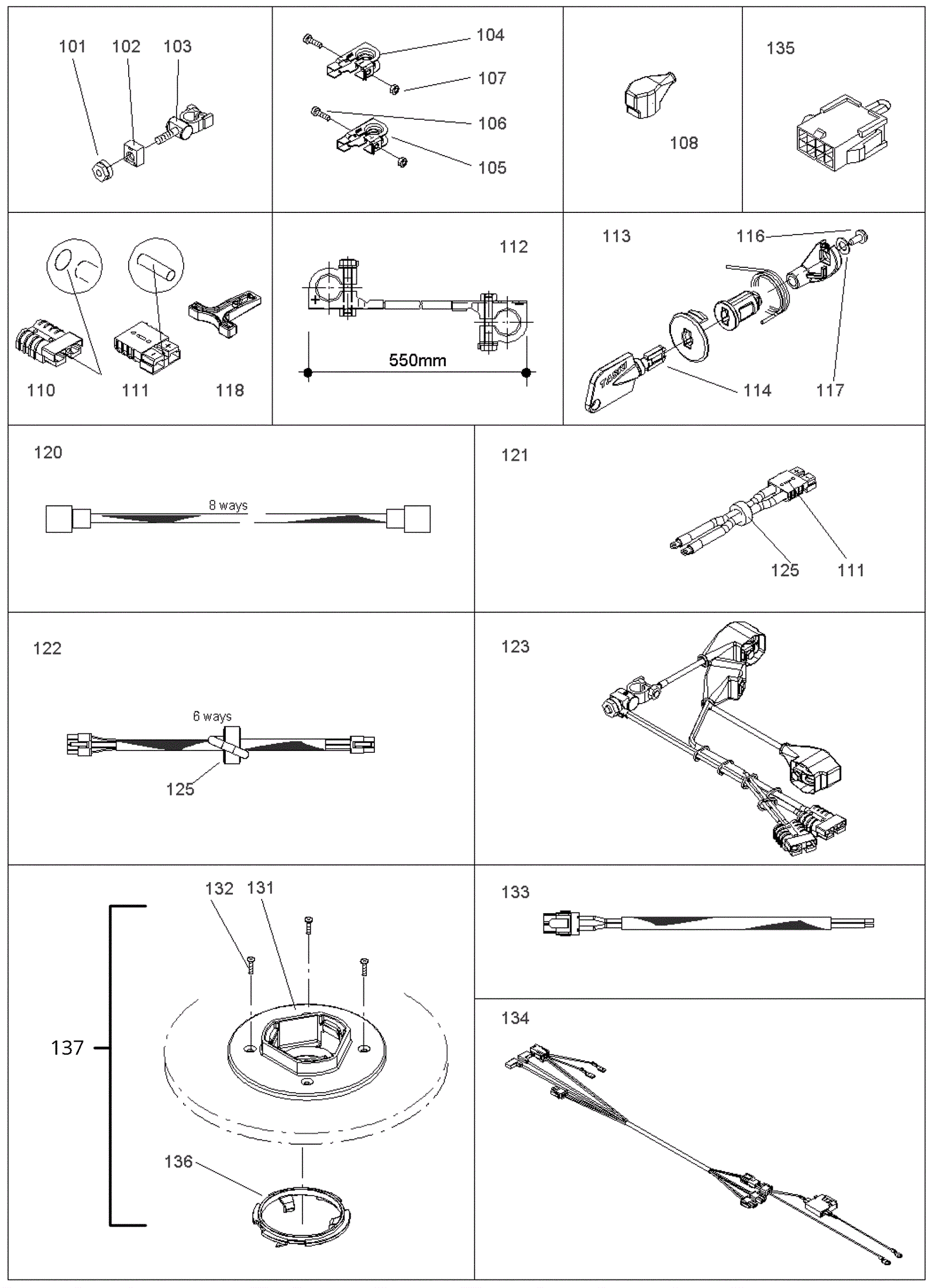

SWINGO 1255B Electrical Parts

#PartDescriptionPriceReqNotesAvailability
101 192-4577 Insulating nut $22.06 1 usually ships 30-75 days
102 192-1420 75amp fuse $16.68 1 ships same day
103 192-2505 Battery cable clamp $22.42 1 ships same day
104 192-1926 Negative battery clamp $5.98 1 ships same day
105 192-1927 Positive battery clamp $7.49 1 ships same day
106 192-9355 Screw M6 x 40mm hex head $5.50 1 ships same day
107 192-0151 Nut M6 hex $2.44 1 ships same day
108 192-0886 Battery post cover $13.31 1 ships same day
110 192-0389 50amp charger plug SB50 with hole (gray) $16.68 1 ships same day
111 192-0388 50amp charger plug SB50 with post (gray) $8.86 1 ships same day
112 192-1406 Battery cable $61.29 2 ships same day
113 292-5708 Key switch $48.84 1 (includes 114, 116-117) ships same day
114a 192-1592 Plastic key $2.44 1 (series 1) ships same day
114b 292-5254 Steel key $3.78 1 (series 2) ships same day
116 192-8584 Screw 40 x 8 $2.44 1 usually ships 30-75 days
117 192-0149 Washer $2.44 1 ships same day
118 192-7083 T-handle $55.51 1 (optional) ships same day
120 192-9329 Communication cable (dashboard to power electronic) $20.00 1 ships same day
121 192-9573 Wiring harness $106.11 1 (includes 111, 125) usually ships 30-75 days
122 192-9549 Cable (dashboard to charger) $31.38 1 (includes 125) usually ships 30-75 days
123 192-2567 Battery connection harness $234.92 1 usually ships 30-75 days
125 192-0712 Coil with toric core $6.79 1 usually ships 30-75 days
131 192-3013 Brush coupling $13.19 1 ships same day
132 192-0445 Screw M5 x 25mm pan head tap $2.44 4 usually ships 30-75 days
133 292-0861 Wire harness $51.92 1 ships same day
134 292-0862 Connecting cable $59.57 1 usually ships 30-75 days
135 292-5424 Jumper (8 pins) $3.91 1 ships same day
136 292-8682 Ring (yellow) $4.84 1 ships same day
137 192-9430 11 inch pad driver $128.30 1 (includes 131-132, 136) ships same day
