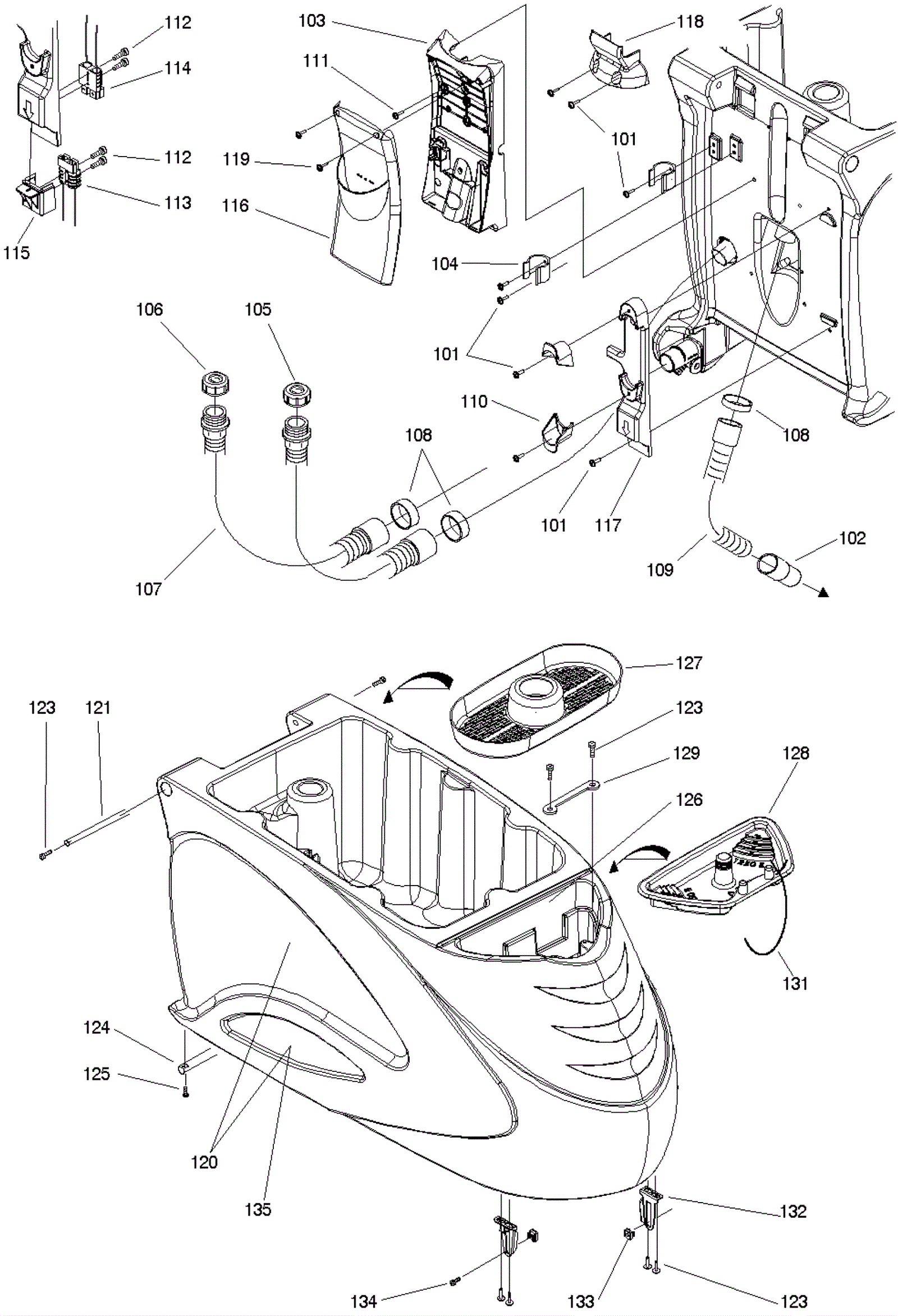

SWINGO 1255B Tank Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1561 Screw 60 x 20 torx head $2.44 10 ships same day
102 192-0113 Hose cuff $2.88 1 ships same day
103 292-5408 Rear cover $34.39 1 usually ships 30-75 days
104 192-0099 Hose holder $1.79 2 ships same day
105 192-0237 Threaded cap (red) $2.44 1 ships same day
106 192-0236 Threaded cap (blue) $2.44 1 ships same day
107a 192-0979 Hose $27.18 2 ships same day
107b 192-8971 Drain hose with attached gray cap $99.22 2 (optional) ships same day
108 192-0130 Hose clamp $2.44 3 ships same day
109 192-4351 Hose $20.76 1 ships same day
110 192-2550 Holder $2.88 2 (BMS) ships same day
111 192-1557 Screw 60 x 35 torx head $2.44 4 ships same day
112 192-0549 Screw KA 35 x 20 $2.44 4 ships same day
113 192-0389 50amp charger plug SB50 with hole (gray) $16.68 1 ships same day
14 192-0388 50amp charger plug SB50 with post (gray) $8.86 1 ships same day
115 192-5595 Charger plug housing $2.93 1 usually ships 30-75 days
116 292-5410 Cover $26.00 1 usually ships 30-75 days
117 292-5411 Cover $11.23 1 ships same day
118 292-0859 Cover $12.21 1 usually ships 30-75 days
119 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
120 192-9571 Tank $1,001.84 1 usually ships 30-75 days
121 192-9538 Axle $13.19 1 usually ships 30-75 days
123 192-1561 Screw 60 x 20 torx head $2.44 8 ships same day
124 192-1773 Axle $16.61 1 usually ships 1-5 days
125 192-1509 Screw 60 x 25 torx head $4.35 2 ships same day
126 192-0185 Decal (blue) $2.44 1 usually ships 30-75 days
127 192-1511 Basket filter $11.11 1 ships same day
128 192-9572 Dosing cup $23.64 1 ships same day
129 192-1513 Locking plate $3.49 1 usually ships 30-75 days
131 292-0096 Cord $2.44 1 ships same day
132 192-9541 Bracket $4.71 2 ships same day
133 192-2591 Nut M8 caged $2.44 2 ships same day
134 192-1524 Screw M8 x 20mm flange socket head $2.44 2 ships same day
135 292-0860 1255B decal $68.82 1 usually ships 30-75 days
