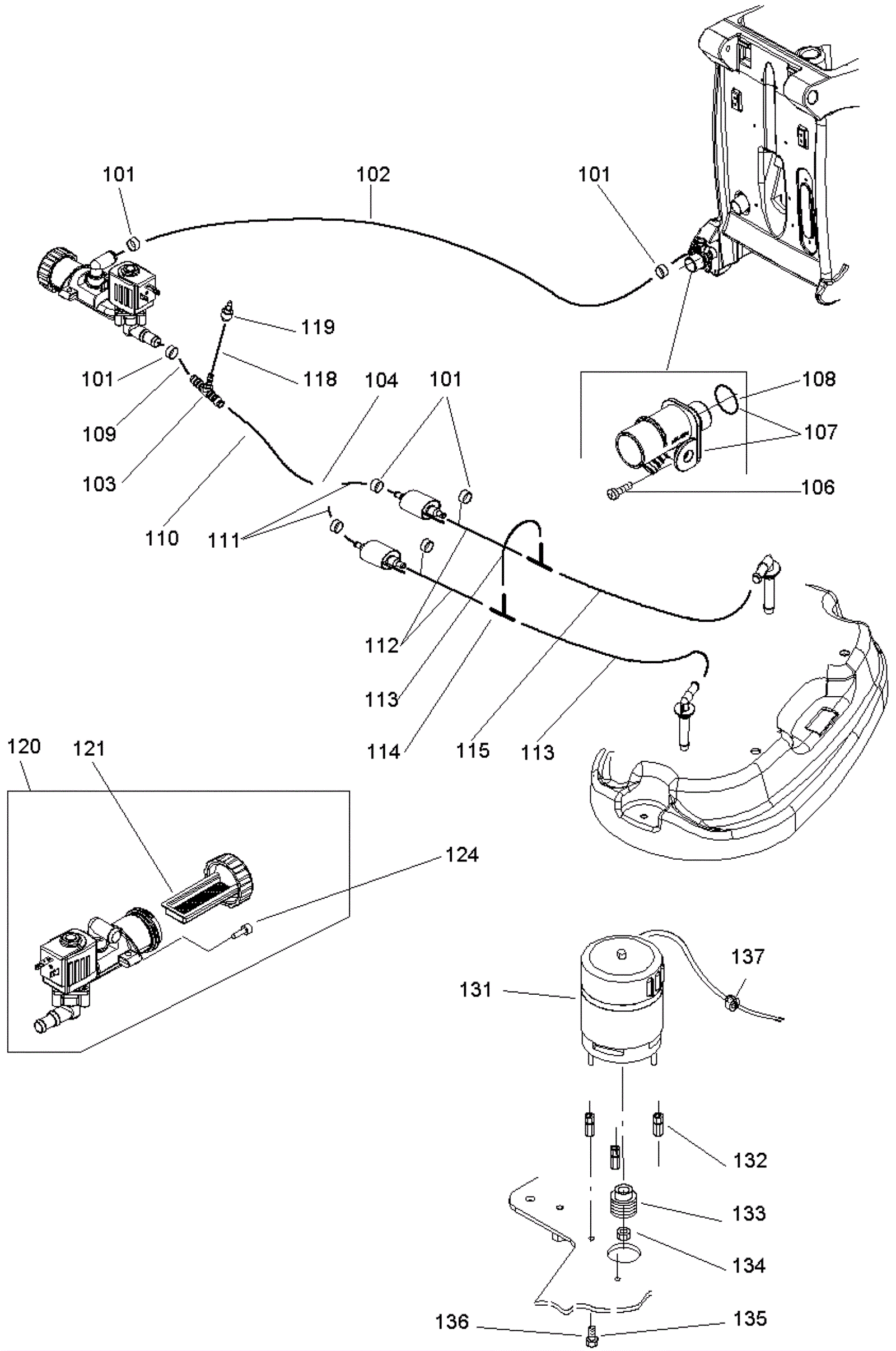

SWINGO 1255B Hose and Filter Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0334 Hose clamp $2.56 7 usually ships 17-21 days
102a 192-0400 Wire reinforced hose (sold by the inch) $0.99 30 inches ships same day
102b 192-0400 Wire reinforced hose (sold by the inch) $0.99 53 inches (DK) ships same day
103 192-0894 T-nipple $5.26 1 ships same day
104 192-7548 Y-pipe $5.97 1 usually ships 17-21 days
106 192-1561 Screw 60 x 20 torx head $2.56 1 ships same day
107 192-9243 Discharge housing includes o-rings $22.83 1 ships same day
108 192-5369 O-ring $2.56 1 usually ships 17-21 days
109 192-0404 Wire reinforced hose (sold by the inch) $0.99 6 inches ships same day
110 192-0404 Wire reinforced hose (sold by the inch) $0.99 17 inches ships same day
111 192-4461 Tygon hose (sold by the inch) $4.05 2 inches usually ships 17-21 days
112 192-4461 Tygon hose (sold by the inch) $4.05 2 inches usually ships 17-21 days
113 192-0404 Wire reinforced hose (sold by the inch) $0.99 6 inches ships same day
114 192-7109 T-nipple $4.24 2 ships same day
115 192-0404 Wire reinforced hose (sold by the inch) $0.99 10 inches ships same day
118 192-0639 Solution hose (sold by the inch) $0.99 46 inches ships same day
119 192-1601 Check valve $28.80 1 ships same day
120 192-9276 Solenoid and filter assembly $288.16 1 (includes 121-124) ships same day
121 292-0082 Filter kit $11.67 1 usually ships 17-21 days
124 192-6279 Screw 40 x 25 torx head $2.56 2 ships same day
131 192-5078 24V brush motor with noise suppression $345.87 1 ships same day
132 192-8633 Stud $7.82 3 ships same day
133 192-5815 Pulley $10.46 1 ships same day
134 192-0800 Nut M12 left hand thread hex $4.62 1 ships same day
135 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
136 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 usually ships 19-32 days
137 192-0712 Coil with toric core $7.13 1 usually ships 17-21 days
